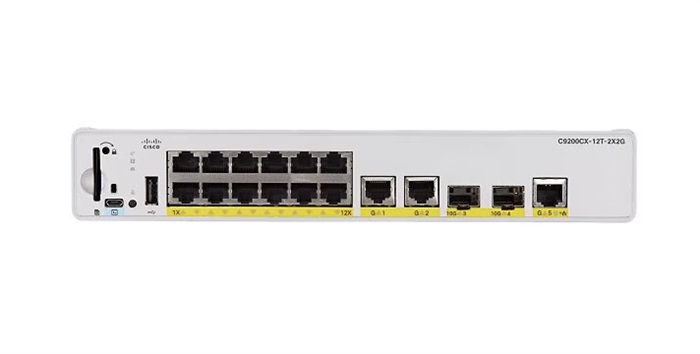

The C9200CX-12T-2X2G-A is a Cisco Catalyst 9200CX Series compact, Layer 3 managed switch featuring 12x 1 Gigabit RJ45 ports, 2x 1 Gigabit copper uplinks, and 2x 1/10 Gigabit SFP+ uplink ports. It has a 32,000 MAC address table size, 70 Gbps switching capacity, and 52.08 Mpps forwarding rate. The "A" in the model number signifies the Network Advantage license, offering enhanced features like Layer 3 routing and security.

Key Specifications

• Ports:
  • 12 x 10/100/1000Base-T RJ45 (downlink)
  • 2 x 1000Base-T RJ45 (uplink)
  • 2 x 1/10 Gigabit SFP+ (uplink)

• Switching Capacity: 70 Gbps
• Forwarding Rate: 52.08 Mpps
• MAC Address Table Size: 32,000 entries
• Switching: Layer 3 Managed Switch
• Power: Can be powered by an upstream 802.3bt PSE (PoE) or an optional 80W AC/DC power adapter.
• Software: Network Advantage license
• Hardware: Fanless
• Management: Supports Cisco IOS, CLI, NETCONF, and RESTCONF.
• Memory: 4 GB DRAM, 8 GB Flash
• Dimensions: 10.6" (W) x 6.5" (D) x 1.7" (H)
• Weight: 3.99 lbs

Features & Capabilities

• UPOE+ Support: Supports IEEE 802.3bt Class 6 (60W) for delivering power to high-demand devices.
• Compact Form Factor: Designed to be compact and rack-mountable for space-constrained deployments.
• Security: Features include ACLs, MACsec, and 802.1x authentication.
• Stacking: Stacking is not available on C9200CX switches, making it an ideal choice for small to medium-sized branch offices.
• Intelligent Networking: Extends the Cisco Catalyst 9000 series capabilities with intent-based networking, automation, and simplified IT operations.

Compatible Transceivers

The Cisco C9200CX-12T-2X2G-A switch has two fixed 1G/10G SFP+ uplink ports, so it is compatible with both SFP and SFP+ transceivers.
