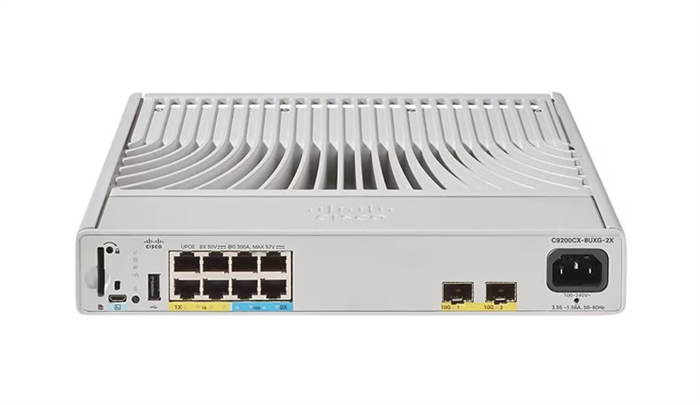

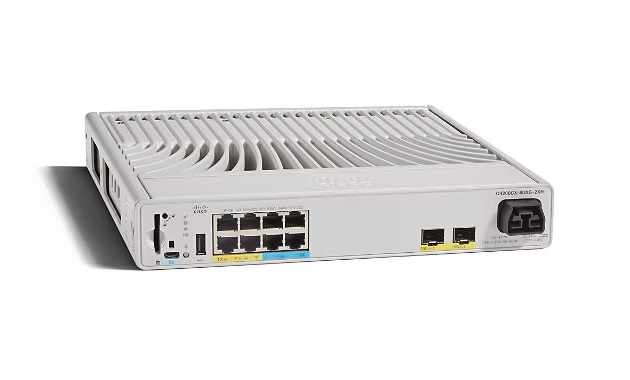

The Cisco C9200CX-8UXG-2X-E is a compact, fanless, L2/L3 managed switch with 8 PoE+ ports (four 10G mGig, four 1G) and two 10G SFP+ uplink ports, boasting a 240W PoE budget and 240 Gbps switching capacity. It supports various mounting options and includes 8 GB of RAM and 16 GB of flash memory.

Key Specifications:

• Ports:8x PoE+ ports:
  • 4x 10G Multigigabit ports
  • 4x 1G Gigabit Ethernet ports

• Uplink Ports: 2x 10G SFP+ ports for high-speed connections
• PoE: 240W total PoE budget for powering devices like IP phones
• Switching Capacity: 240 Gbps
• Performance: 238.1 Mpps (Forwarding Rate)
• RAM: 8 GB
• Flash Memory: 16 GB
• MAC Address Table Size: 32,000 entries
• Cooling: Fanless design for quiet operation
• Management: Manageable Layer 3 switch

Features & Capabilities:

• Compact & Versatile: Designed to be compact, it can be mounted in various ways including rack-mountable, DIN rail, wall-mountable, or under a table.
• High-Speed Connectivity: Equipped with both 10G multigigabit (mGig) ports and 10G SFP+ uplinks for robust network connections.
• PoE+ Support: Delivers Power over Ethernet Plus (PoE+) to connected devices.
• Enterprise-Grade Features: Supports advanced security, Layer 3 switching capabilities, and campus network applications.

Compatible Transceivers

The Cisco C9200CX-8UXG-2X-E switch has two 10 Gigabit SFP+ uplink ports that support 10G SFP+ transceivers.
