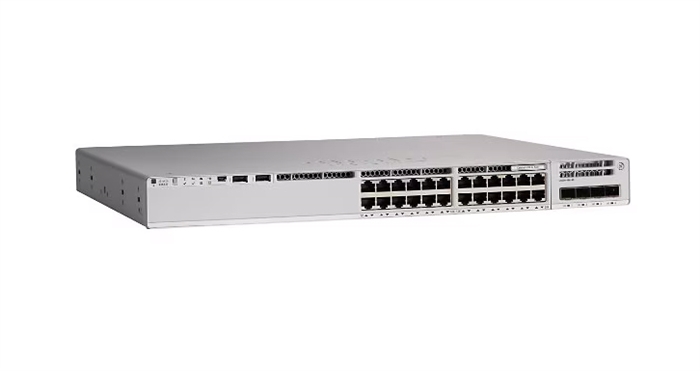

The Cisco C9200L-24P-4G-E is a 24-port Gigabit Ethernet switch with 24 PoE+ ports and four 1G uplink ports. Key specs include a 56 Gbps switching capacity, support for up to 80 Gbps of StackWise-160 stacking bandwidth, support for Cisco IOS XE software, and a switching capacity of 56 Gbps. It also offers enhanced security features, including policy-based segmentation and a 4 GB flash memory.

Key Specifications

• Ports: 24 x 10/100/1000 PoE+ Ethernet ports
• Uplink Ports: 4 x 1 Gigabit (SFP) uplink ports
• Switching Capacity: 56 Gbps
• Forwarding Rate: 41.66 Mpps (Million packets per second)
• Stacking: Cisco StackWise-160, with up to 80 Gbps of stack bandwidth
• Software: Cisco IOS XE
• Memory: 4 GB flash memory
• Security: AES-128 MACsec encryption, policy-based segmentation
• Other Features: Power and fan redundancy, full PoE+ capability
• Device Type: Stackable Layer 3 switch
• Form Factor: Rack-mountable

Performance and Capacity

• Jumbo Frames: Supports jumbo frames up to 9198 bytes
• MAC Address Table: 16,000 entries
• Flexible NetFlow (FNF): Supports 16,000 FNF entries
• VLANs: Supports 1024 VLAN IDs
• QoS (Quality of Service): 1,000 QoS scale entries

Compatible Transceivers

For your C9200L-24P-4G-E switch, you will use transceivers for the 4x1G uplink ports. These ports use the SFP (Small Form-factor Pluggable) form factor.
