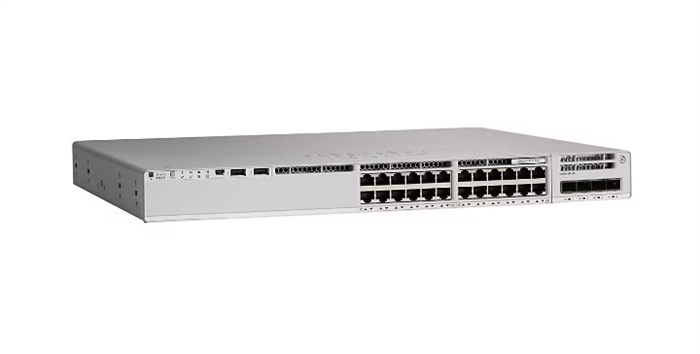

The Cisco C9200L-24T-4X-E is a 24-port Gigabit Ethernet network switch from the Catalyst 9200L series, featuring four fixed 10-Gigabit SFP+ uplinks and supporting Layer 3 static routing and protocols like OSPF and EIGRP. It offers a switching capacity of 128 Gbps and a forwarding rate of 190.4 Mpps, with Network Essentials software for enterprise-class management. The "E" in the model number signifies Network Essentials, and the "-4X" indicates the four 10G SFP+ uplink ports.

Key Specifications

• Port Configuration: 24 x 10/100/1000 Gigabit RJ45 ports and 4 x 10 Gigabit SFP+ ports.
• Uplink Type: Fixed 10G SFP+ uplinks.
• Layer: Layer 3, supporting static routing and basic routing protocols like OSPF.
• Switching Capacity: 128 Gbps.
• Forwarding Rate: 190.4 Mpps.
• Software: Cisco IOS XE with Network Essentials features.
• MAC Address Table: 16,000 entries.
• Stacking Bandwidth: 80 Gbps.
• Power Supply: Internal.
• Power Consumption: Maximum 36.28W (rated max 125W).
• Operating Temperature: -5°C to +45°C.
• Dimensions: 1.73 x 17.5 x 11.3 inches (44 x 445 x 288 mm).
• Weight: 7.27 lbs (3.3 kg).

Features & Capabilities

• Enterprise-Class Features: Offers advanced security, enterprise-grade performance, and reliable networking.
• Flexible Connectivity: Provides 10 Gigabit SFP+ uplinks for high-speed connectivity to network cores or other switches.
• Management: Supports command-line interface (CLI), web interface, and network management platforms for comprehensive management.
• Layer 3 Functionality: Enables routed access with support for basic Layer 3 features.
• Rack-mountable: Designed for easy installation in a standard rack.

Compatible Transceivers

The C9200L-24T-4X-E switch uses 10G fixed uplink ports, supporting 10G SFP+ modules.
