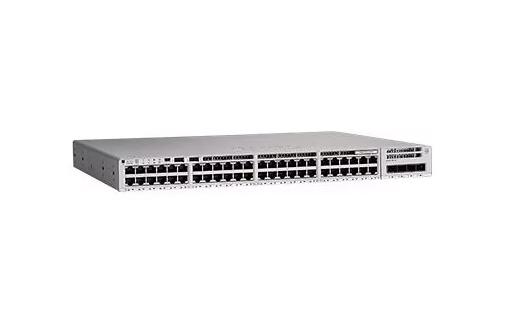

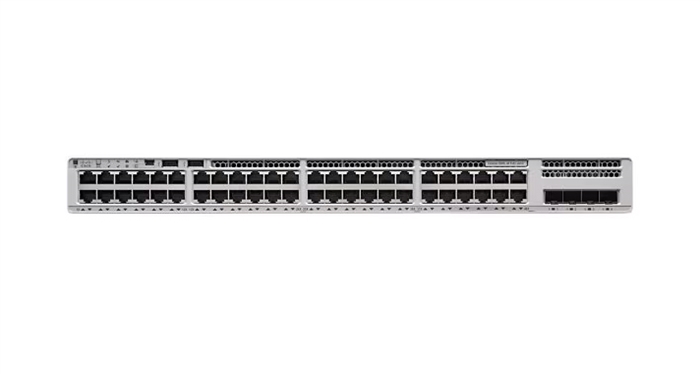

The Cisco C9200L-48P-4G-E is a 48-port Gigabit Ethernet switch with 48 PoE+ ports, four 1-Gigabit SFP uplink ports, and a default primary AC power supply. It supports up to 80 Gbps of stacking bandwidth with StackWise-80 technology, has two fan and two power supply slots for redundancy, and includes Network Essentials features. The switch is stackable, rack-mountable, and operates on 100-240 VAC power at 50-60 Hz.

Key Specifications

• Ports: 48 x 10/100/1000 PoE+ ports and 4 x 1-Gigabit SFP uplink ports.
• PoE Budget: 740W default power, with the ability to upgrade to 1440W by adding a secondary power supply.
• Stacking: Supports StackWise-80 technology for up to 80 Gbps of stacking bandwidth.
• Power: Features dual power supply slots and redundant fan modules for increased resiliency.
• Operating System: Runs Cisco IOS XE, providing programmability and open APIs.
• Security: Includes hardware and software security features, plus support for IEEE 802.1x.
• Dimensions: Standard 1RU (rack-unit) size with dimensions of 1.73 x 17.5 x 12.9 inches (4.4 x 44.5 x 32.9 cm).

Features & Capabilities

• Layer 3 Functionality: Supports advanced features like OSPF and EIGRP, making it a Layer 3 switch.
• Resiliency: Offers built-in power and fan redundancy to minimize downtime.
• Scalability: Can be stacked with other Catalyst 9200 Series switches for increased port density and bandwidth.
• Connectivity: Provides a console RJ-45 port, an RJ-45 management LAN port, and four 1000Base-X SFP uplink ports.

Compatible Transceivers

The Cisco C9200L-48P-4G-E is a 48-port Gigabit switch with 4 x 1G SFP uplink ports and requires SFP modules to operate.
