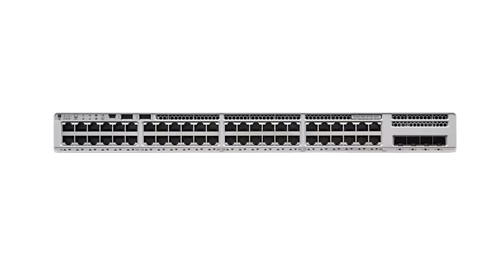

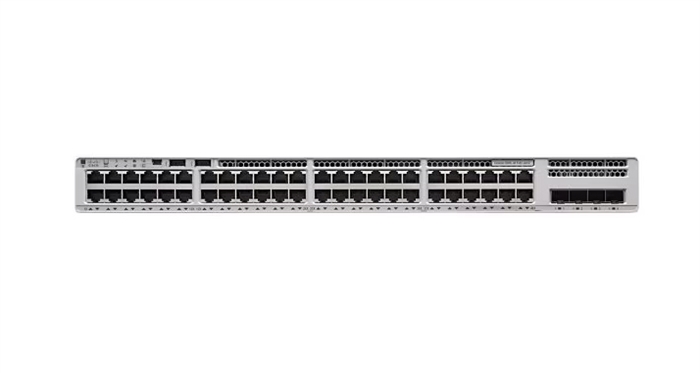

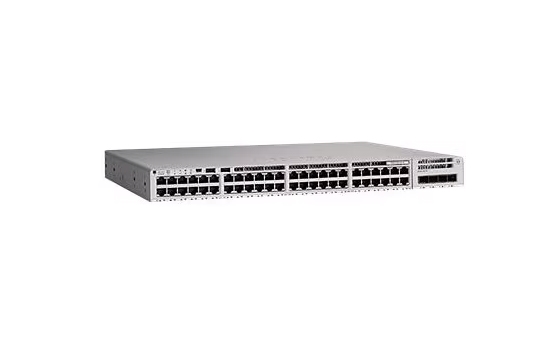

The Cisco C9200L-48P-4X-E is a 48-port PoE+ switch with four 10-Gigabit (10G) SFP+ uplink ports, featuring a 740W PoE budget, a 176 Gbps switching capacity, 261.9 Mpps forwarding rate, and 80 Gbps stacking bandwidth for Cisco StackWise-80. It runs Cisco IOS XE with a Network Essentials license and supports Layer 3 managed functionality.

Port Configuration

• Access Ports: 48 x 10/100/1000 (Gigabit Ethernet) with PoE+ support.
• Uplink Ports: 4 x 10 Gigabit SFP+ ports for high-speed connectivity.

Performance

• Switching Capacity: 176 Gbps.
• Forwarding Rate: 261.9 Mpps (for 64-byte packets).
• Stacking Bandwidth: 80 Gbps using Cisco StackWise-80 technology.

Power and PoE

• PoE Budget: 740W available PoE power.

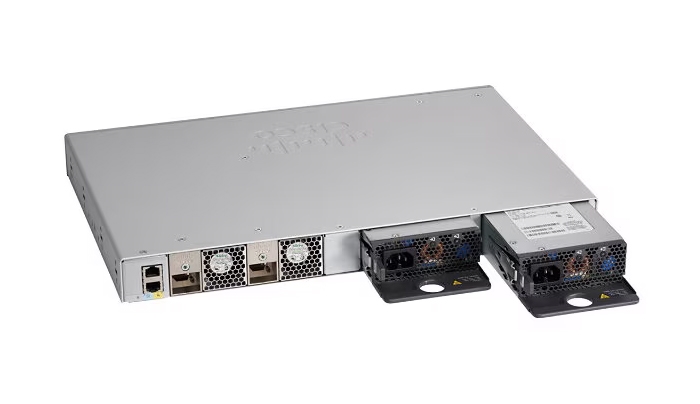

• Power Supply: Equipped with an internal power supply.

Software and Management

• Operating System: Cisco IOS XE.
• License: Network Essentials license.
• Management: Layer 3 managed switch.

Physical and Environmental

• Dimensions: 1.73 x 17.5 x 11.3 inches (4.4 x 44.5 x 28.8 cm).
• Mounting: Designed for rack mounting.
• Max Operating Temperature: 45°C (113°F).

Compatible Transceivers

The C9200L-48P-4X-E Cisco switch supports both 10G SFP+ modules for its 10Gbps uplink ports and 1G SFP modules for its 1Gbps uplink ports.
