The Cisco C9300-24S-E is a Cisco Catalyst 9300 Series Layer 3 managed switch featuring 24 x 1 Gigabit SFP ports, 16 MB packet buffer, 8 GB DRAM, and 16 GB Flash memory. It supports a switching capacity of 208 Gbps, a forwarding rate of 154.76 Mpps, and includes a 715W AC power supply. The switch supports StackWise-480 technology for high-bandwidth stacking, is rack-mountable, and runs the Cisco IOS Universal operating system.

Key Specifications

• Ports: 24 x 1 Gigabit SFP ports
• Switching Capacity: 208 Gbps (up to 688 Gbps with stacking)
• Forwarding Rate: 154.76 Mpps (up to 511.90 Mpps with stacking)
• Memory: 8 GB DRAM, 16 GB Flash
• Packet Buffer: 16 MB
• Stacking: Supports StackWise-480 (480 Gbps stacking bandwidth)
• Power: Includes one 715W AC power supply with a second slot for redundancy
• Form Factor: Rack-mountable 1U
• Management: CLI, SNMP, NETCONF, RESTCONF
• Operating System: Cisco IOS Universal

Key Features

• High-Density Fiber: 24 SFP ports offer enterprise-grade fiber connectivity for long-distance links and high bandwidth.

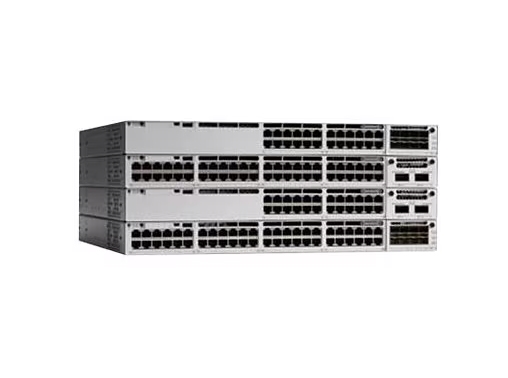

• Stacking Technology: Cisco StackWise-480 enables high-density, high-bandwidth stacking for scalability and simplified management.
• Modular Uplinks: The switch features a modular expansion slot for flexible uplink options.
• Advanced Security: Supports features like 802.1x authentication, Access Control Lists (ACLs), and Quality of Service (QoS).

Compatible Transceivers

The C9300-24S-E switch supports 1G SFP transceivers, including GLC-SX-MMD (Multimode Fiber, short-reach), GLC-LH-MMD (Multimode/Singlemode Fiber, mid-reach), and GLC-TE (Copper) transceivers.
