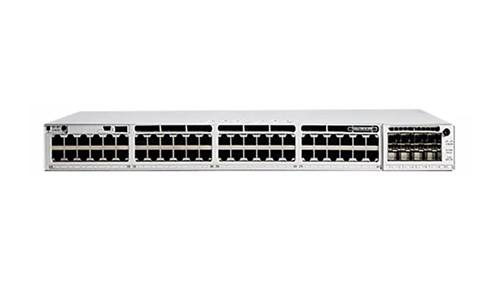

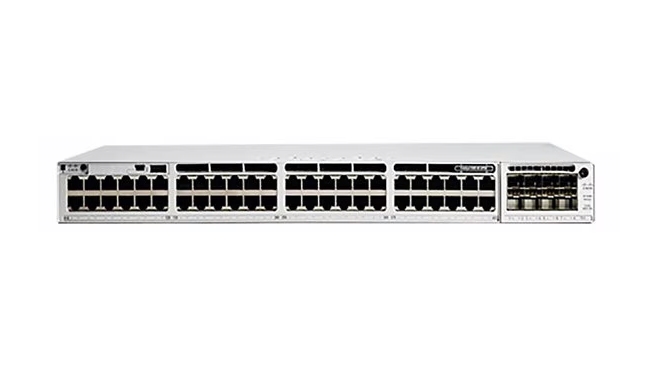

The C9300-48P-A is a Cisco Catalyst 9300 48-port managed switch featuring 48x 10/100/1000 PoE+ ports, 480 Gbps stacking bandwidth, and a PoE budget of 437W. Key features include a 128 Gbps switching capacity, 190.48 Mpps forwarding rate, IPv4/IPv6 routing tables, dual redundant power supplies, and support for Cisco StackPower and other advanced networking capabilities.

Port Details

• Ethernet Ports: 48 x 10/100/1000 Mbps PoE+ ports (RJ-45 connector)
• Stacking: 2 stackwise ports supporting 480 Gbps stacking bandwidth
• Console: USB mini-Type B (console) port
• USB: USB Type A storage port
• Network Module Slots: Supports network modules for additional connectivity

Performance

• Switching Capacity: 128 Gbps
• Forwarding Rate: 190.48 Mpps (million packets per second)
• Stacking Bandwidth: 480 Gbps

Power

• PoE Budget: 437W
• Power Supplies: Dual, redundant, and replaceable

Features & Capabilities

• Management: Managed, rack-mountable
• Layer 3: Network Advantage edition includes Layer 3 routing features

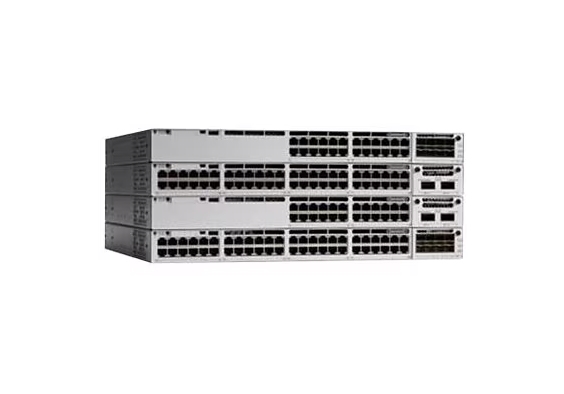

• Stacking Technology: Supports Cisco StackPower
• Memory: 16 GB Flash memory
• Capacity: Supports 4000 VLAN IDs, 32,000 IPv4 routes, 16,000 IPv6 routes, and 64,000 Flexible NetFlow entries

Physical Specifications

• Dimensions: 1.7 inches (height) x 17.5 inches (width) x 17.5 inches (depth)
• Weight: 16.73 lbs
