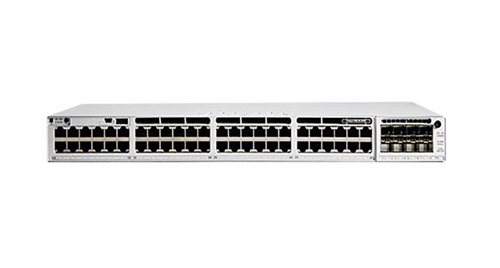

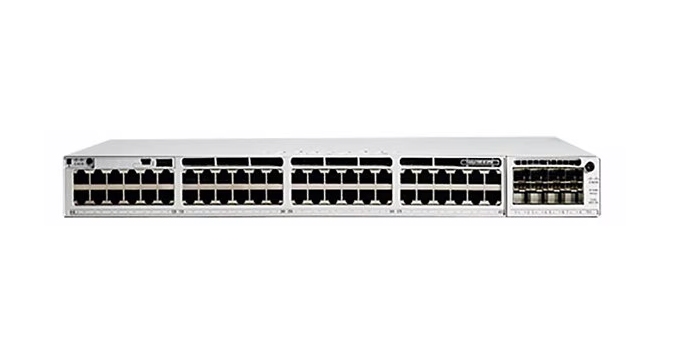

The Cisco C9300-48T-E is a 48-port Layer 3 managed switch featuring 48 x 10/100/1000 Gigabit Ethernet copper ports, a 256 Gbps switching capacity, and 480 Gbps stacking bandwidth. It offers 16 GB of Flash memory, 8 GB of DRAM, and a default power supply with Network Essentials capabilities. Key features include support for Cisco StackWise-480, flexible uplink modules, and Cisco IOS XE software, making it suitable for enterprise access-layer deployments.

Key Specifications

• Device Type: Layer 3, managed, stackable switch
• Ports: 48 x 10/100/1000 Gigabit Ethernet copper ports
• Switching Capacity: 256 Gbps
• Stacking Bandwidth: 480 Gbps
• Forwarding Rate: 190.48 Mpps
• DRAM: 8 GB
• Flash: 16 GB
• MAC Address Table: 32,000 entries
• VLAN IDs: 4,000
• Jumbo Frames: 9,198 bytes

Key Features

• Stacking: Supports Cisco StackWise-480 technology for high-density stacking.
• Uplinks: Flexible modular uplink ports with various speed options including 1G, 10G, 25G, 40G, and 100G.
• Software: Runs Cisco IOS XE, providing advanced features like Flexible NetFlow (FNF).
• Management: Supports remote management through CLI, NETCONF, RESTCONF, and SNMP, as well as cloud-based management platforms.
• Power: Comes with a default PWR-C1-350WAC power supply.
• Security: Features like Access Control Lists (ACLs) and 802.1x authentication for network access control.
• Form Factor: Rack-mountable.
