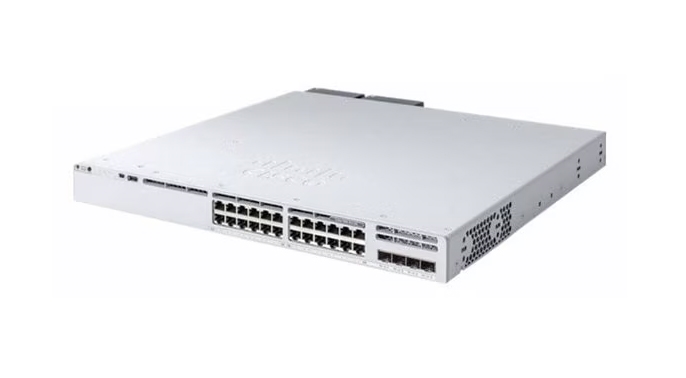

The Cisco C9300L-24T-4G-E is a 24-port managed, Layer 3 switch with 24 x 1 Gigabit Ethernet (10/100/1000) ports and 4 x 1 Gigabit SFP fixed uplink ports. Key features include a 56 Gbps switching capacity, 41.66 Mpps forwarding rate, support for Cisco StackWise-320 technology for stacking, and the Network Essentials operating mode. It is designed for enterprise networks and serves as a foundation for Cisco's Software-Defined Access (SD-Access) solution.

Key Specifications

• Ports: 24 x 10/100/1000 Gigabit Ethernet ports
• Uplink Ports: 4 x 1 Gigabit SFP ports
• Switching Capacity: 56 Gbps
• Forwarding Rate: 41.66 Mpps

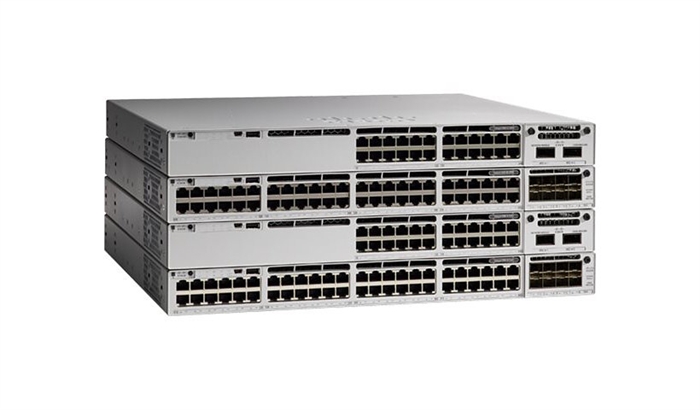

• Stacking: Supports Cisco StackWise-320 for stacking with a stacking bandwidth of 320 Gbps
• Management: Layer 3 managed switch with Network Essentials
• Device Type: Rack-mountable
• Software: Foundation for Cisco Software-Defined Access (SD-Access)

Features

• Flexible Connectivity: Provides 24 Gigabit Ethernet access ports and 4 Gigabit uplink ports.
• Scalability: Designed to be stackable using Cisco StackWise technology for increased port density and bandwidth.
• High Performance: Delivers a high switching capacity and forwarding rate for demanding enterprise environments.
• Enterprise-Grade: Features like Nonstop Forwarding (NSF/SSO) and support for SD-Access architecture are included.

Compatible Transceivers

The C9300L-24T-4G-E switch's 4 1G SFP ports are compatible with a variety of 1G SFP modules.
