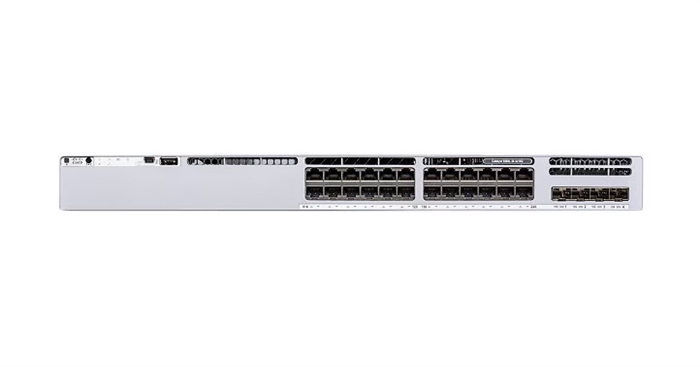

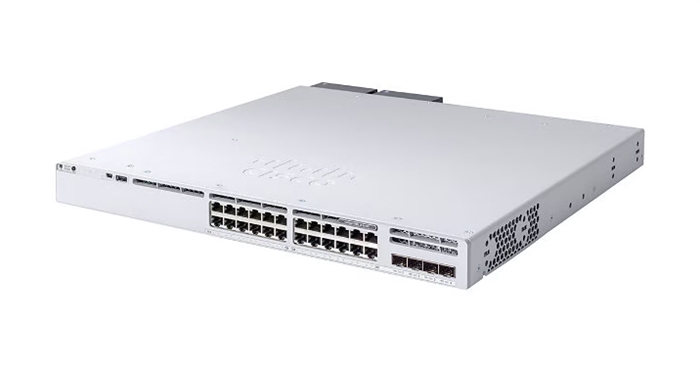

The Cisco C9300L-24UXG-2Q-A is a 24-port multigigabit switch featuring 24 Cisco UPoE ports, 8-mGig (10M/5G/2.5G/1G/FE) Ethernet ports, and 16 Gigabit Ethernet ports, along with 2 fixed 40G uplink ports. It supports Cisco StackWise-320, has an 1100W AC power supply, and includes 40G SFP uplink ports. The switch uses the Cisco UADP 2.0 ASIC, runs the IOS XE operating system, and offers capabilities like MACsec encryption and ThousandEyes integration.

Key Specifications

• Port Configuration: 24 UPoE ports (8 Multigigabit, 16 Gigabit) with 2 fixed 40G uplinks.
• Switching Capacity: 352 Gbps.
• Forwarding Rate: 261.90 Mpps.
• Stacking: Cisco StackWise-320 with up to 320 Gbps of bandwidth.
• Power: 1100W AC power supply, with optional redundancy.
• ASIC: Cisco UADP 2.0 Application-Specific Integrated Circuit (ASIC).
• Operating System: IOS XE.

Key Features

• Multigigabit Ethernet: Offers flexibility with ports supporting 10M/5G/2.5G/1G/FE speeds.
• Cisco UPoE: All 24 ports support Cisco Universal Power Over Ethernet, providing high-density power to connected devices.
• High-Density Uplinks: Equipped with 2 fixed 40G SFP uplink ports for high-speed connectivity.
• Security: Supports features such as MACsec, 802.1X, and Secure Boot for enhanced network security.
• Programmability & Containers: Built on an x86 CPU with memory and local storage, allowing for native hosting of containers and third-party applications.
• ThousandEyes Enabled: Integrated with ThousandEyes for end-to-end network and application visibility.
• Flexible Network Module: Features a network module port for various uplink options, including 1G, 10G, 25G, and 2x 40G modules.

Compatible Transceivers

The Cisco C9300L-24UXG-2Q-A switch has two fixed 40G QSFP+ uplink ports, so it is compatible with a range of 40G QSFP+ transceivers and accessories.
