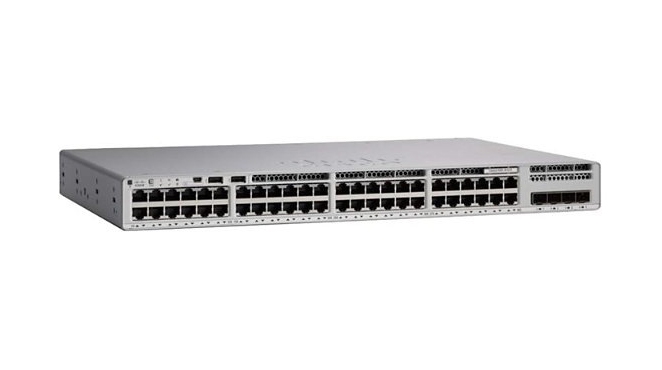

The Cisco C9300L-48P-4G-A is a 48-port managed, stackable switch with 48 x Gigabit Ethernet (PoE+) ports and 4 x 1 Gigabit SFP uplink ports. It features a switching capacity of 104 Gbps, a forwarding rate of 77.38 Mpps, and supports Cisco StackWise-320 technology for high availability and scalable bandwidth. The switch offers features like Network Advantage software, MACsec, 802.1X security, and supports Cisco DNA Center for management.

Key Features

• Ports: 48 x 1 Gigabit Ethernet PoE+ ports and 4 x 1 Gigabit SFP uplink ports.
• PoE: Supports Power over Ethernet (PoE+), providing up to 505W of power for connected devices.
• Performance:
  • Switching Capacity: 104 Gbps.
  • Forwarding Rate: 77.38 Mpps.
  • Stacking Bandwidth: 320 Gbps (with stacking).

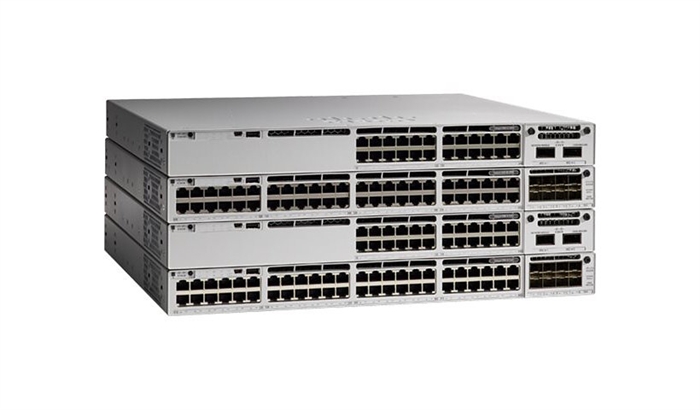

• Stacking: Supports StackWise-320 for enhanced uptime, scalability, and unified management.
• Software: Comes with Network Advantage license, with options for DNA Essentials and DNA Advantage upgrades.
• Security: Offers advanced features such as MACsec, 802.1X, Secure Boot, and image signing.
• Management: Supports various management methods, including CLI, SNMP, SSH, HTTP/HTTPS, and Cisco DNA Center.
• Dimensions & Weight:
  • Dimensions: 1.7 inches (height) x 17.5 inches (width) x 16.1 inches (depth).
  • Weight: 15.5 lbs.

Ideal Use Cases

• Enterprise Deployments: Balances high-density PoE needs with efficient network infrastructure.
• Mid-Sized Networks: Provides robust performance and management features suitable for many business environments.
• Power-Intensive Applications: Well-suited for powering devices like access points and security cameras without requiring separate power supplies.

Compatible Transceivers

The Cisco C9300L-48P-4G-A switch is compatible with 1 Gigabit (1G) SFP transceivers.
