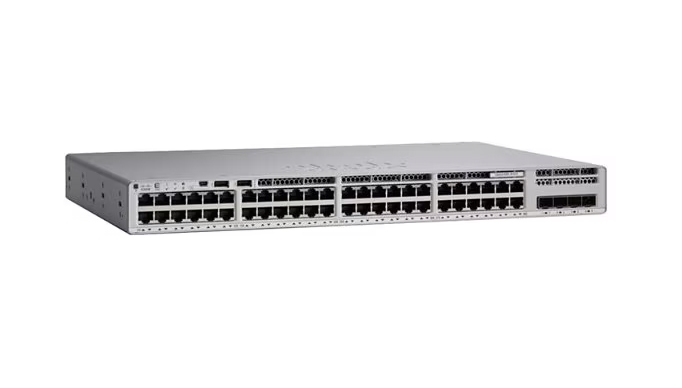

The Cisco C9300L-48P-4X-A is a 48-port Gigabit Ethernet PoE+ switch with 4 x 10G SFP+ uplink ports and a switching capacity of 176 Gbps, featuring Network Advantage software, a 1U rack-mount design, and support for StackWise-160 technology for stacking. Key specifications include 4 GB of flash memory and 2 GB of DRAM, a forwarding rate of 130.95 Mpps, and a limited PoE budget of 505W, expandable with a secondary power supply.

Key Specifications

• Port Type: 48 x Gigabit Ethernet with PoE+, plus 4 x 10 Gigabit SFP+ uplinks
• Switching Capacity: 176 Gbps (Switching Capacity with Stacking: 496 Gbps)
• Forwarding Rate: 130.95 Mpps (Forwarding Rate with Stacking: 369.05 Mpps)
• MAC Address Table Size: 32,000 entries
• DRAM: 2 GB
• Flash Memory: 4 GB

Hardware Features

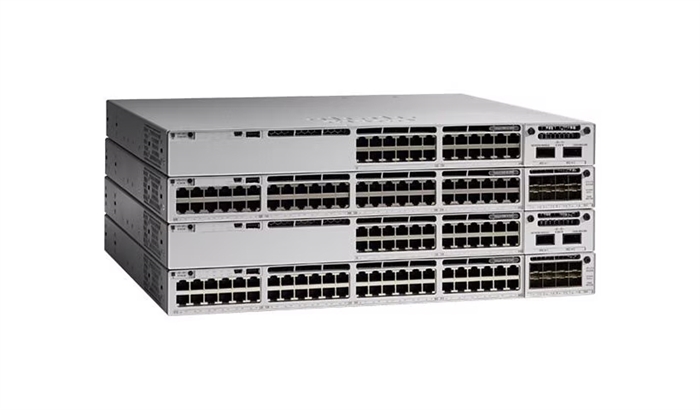

• Stacking: Supports StackWise-160 technology for stacking capabilities
• Form Factor: 1U rack-mount design
• Power Supply: Includes a PWR-C1-715WAC-P power supply, with a PoE budget of 505W; a second power supply must be ordered separately
• Fan Modules: Includes 3x FAN-T2 fan modules

Software & Security

• Operating System: Cisco Catalyst operating system
• Software Licensing: Network Advantage software
• Security: Built-in features like TrustAnchor Module and Secure Boot, providing threat protection and policy-based segmentation

Performance & Scalability

• Integrated CPU & ASIC: Provides wire-speed performance
• Advanced Features: Supports cold patching for seamless, disruption-free network updates
• Troubleshooting: Equipped with blue beacon LED indicators for simplified troubleshooting

Compatible Transceivers

The Cisco C9300L-48P-4X-A switch supports a variety of 10 Gigabit SFP+ transceivers for its four uplink ports.
