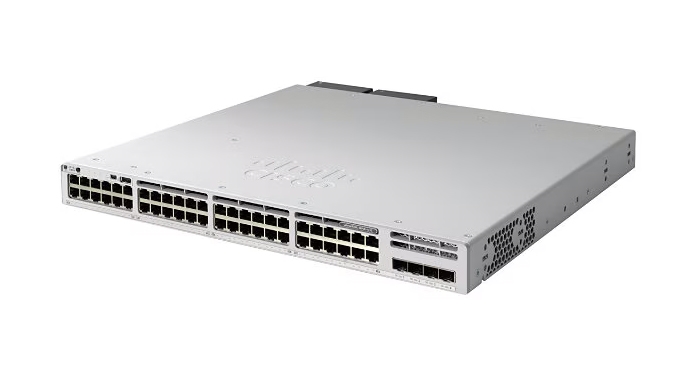

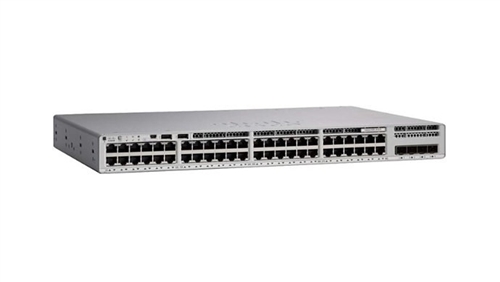

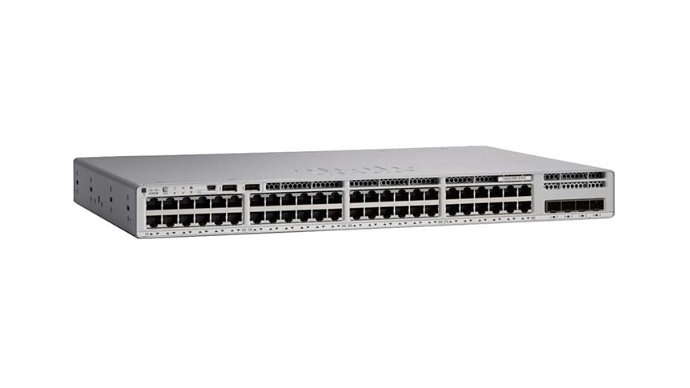

The Cisco Catalyst 9300L-48PF-4X-E is a 48-port Gigabit Ethernet switch with 4x 10G SFP+ uplink ports, supporting Full PoE+, and a forwarding rate of 130.95 Mpps. It includes features like StackWise-320 for stacking, Network Essentials software, and a default 1100W power supply. It offers 8 GB of RAM, 16 GB of flash memory, and several management and console ports.

Key Specifications

• Brand: Cisco
• Model: Catalyst 9300L-48PF-4X-E
• Port Configuration: 48 x 1 Gigabit Ethernet Full PoE+ RJ45 ports
• Uplink Ports: 4 x 10 Gigabit Ethernet SFP+ ports
• Switching Capacity: 176 Gbps
• Forwarding Rate: 130.95 Mpps
• PoE Budget: 890W
• Memory: 8 GB RAM
• Flash Memory: 16 GB
• Management Ports: 2x USB, 1x Mini USB, 1x console RJ45, 1x LAN RJ45

Key Features

• Full PoE+ Support: 48 RJ45 ports provide Power over Ethernet Plus.
• High-Speed Uplinks: 4 x 10G SFP+ ports for fast connections to other network devices.
• Stacking: Supports StackWise-320 for up to 8 members, providing high-density, stackable switching.
• Advanced Features: Includes features like QoS, Energy Efficient Ethernet, and 802.1x authentication.
• Included Components: Ships with 3 pre-installed fans and a default 1x PWR-C1-1100WAC-P power supply.

Compatible Transceivers

The Cisco C9300L-48PF-4X-E switch is compatible with standard SFP+ transceivers for its fixed 4x10G uplinks.
