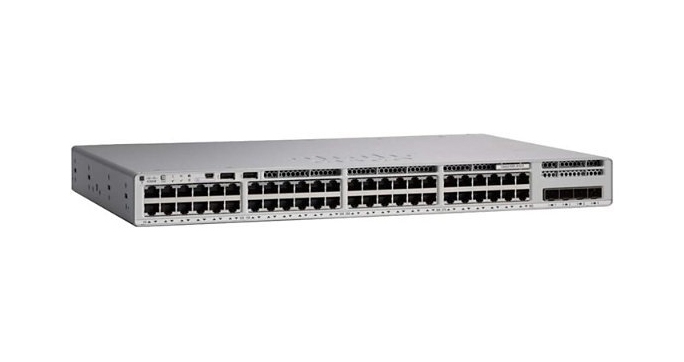

The Cisco C9300L-48T-4X-E is a 48-port, non-PoE Gigabit Ethernet switch with 4 fixed 10-Gigabit SFP+ uplink ports, built on the StackWise-320 technology for up to 320 Gbps of stacking bandwidth and featuring Cisco IOS XE for advanced security and management. It offers a switching capacity of 176 Gbps and a forwarding rate of 130.95 Mpps, with a 1U, rack-mountable form factor designed for enterprise access and edge environments.

Key Specifications:

• Ports: 48 x 10/100/1000 Gigabit Ethernet data ports.
• Uplink Ports: 4 x 10 Gigabit SFP+ ports.
• Licensing: Network Essentials.
• Switching Capacity: 176 Gbps.
• Forwarding Rate: 130.95 Mpps.
• Stacking Technology: StackWise-320.
• Stacking Bandwidth: Up to 320 Gbps.
• Form Factor: 1U, Rack-mountable.
• CPU Architecture: x86 CPU.
• Power: Requires power supply (sold separately) and includes fan modules.

Features:

• Layer 3 Functionality: Supports SD-Access and advanced routing.
• Security: Provides advanced hardware-based security features.
• Management: Compatible with on-premises, virtual, or cloud-based management options.
• Scalability: Stacks with other C9300L switches using StackWise-320 technology.

Applications:

• Ideal for enterprise-grade access and edge deployments in mid-sized to large organizations.
• Suitable for upgrading network environments requiring high-density Gigabit ports and fast uplinks.

Compatible Transceivers

The Cisco C9300L-48T-4X-E Catalyst switch has four 10G SFP+ ports, so it uses 10 Gigabit SFP+ transceivers for its fixed uplinks.
