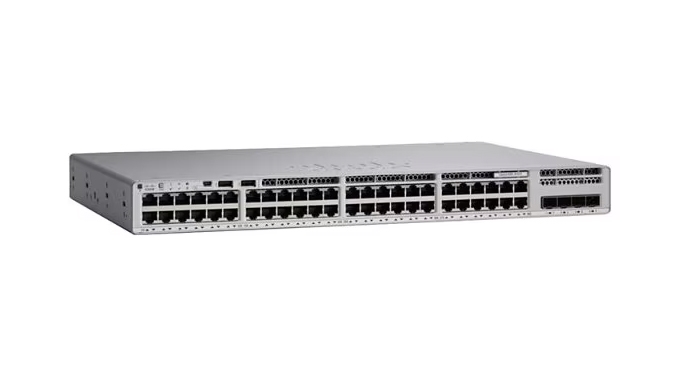

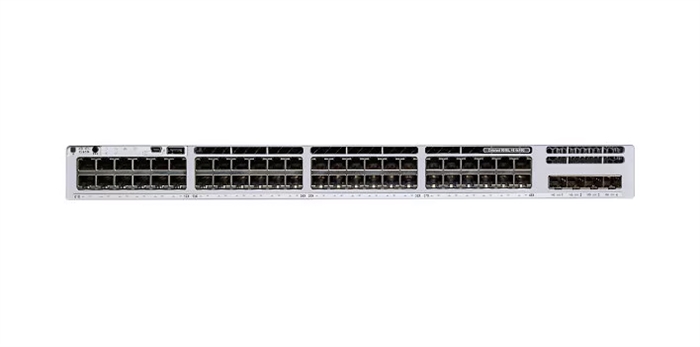

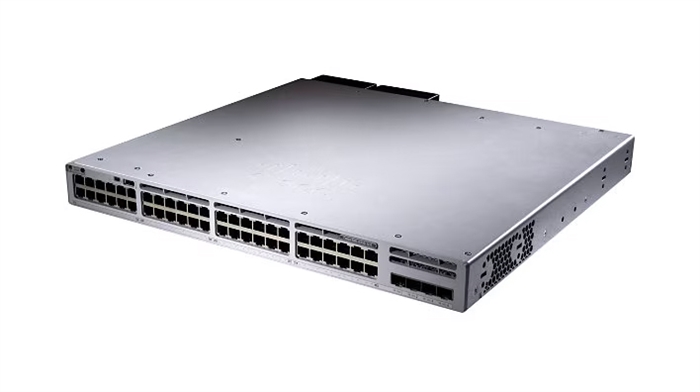

The Cisco C9300L-48UXG-4X-E is a 48-port stackable switch with 36 Gigabit UPOE RJ-45 ports, 12 multi-Gigabit RJ-45 ports, and 4 fixed 10 Gigabit SFP+ uplink ports. It features StackWise-320 technology for stacking, an x86-based processor, and Cisco IOS XE operating system. The switch has 8GB of RAM, 16GB of flash memory, and includes support for containers and third-party applications.

Key Specifications

• Port Configuration: 48 ports total
  • 36 x 1 Gigabit Ethernet UPOE RJ-45 ports
  • 12 x Multi-Gigabit Ethernet RJ-45 ports (100M/1G/2.5G/5G/10G)
  • 4 x 10 Gigabit Ethernet SFP+ uplink ports

• Switching Capacity: Up to 176 Gbps (without stacking) and 496 Gbps (with stacking)
• Forwarding Rate: 130.95 Mpps (without stacking) and 369.05 Mpps (with stacking)
• Memory: 8 GB RAM, 16 GB Flash
• Stacking: Cisco StackWise-320 technology
• PoE: Supports Cisco UPOE
• Operating System: Cisco IOS XE
• Processor: x86-based processor
• Special Features: Supports native containers and third-party applications, integrated with Cisco StackPower for power sharing

Compatible Transceivers

The Cisco C9300L-48UXG-4X-E switch is compatible with 10G SFP+ transceivers for its four fixed 10G SFP+ uplink ports.
