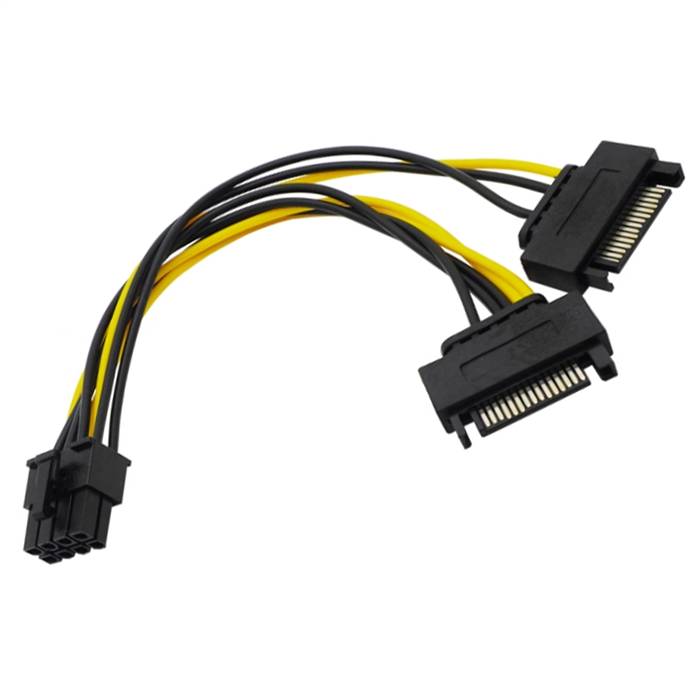

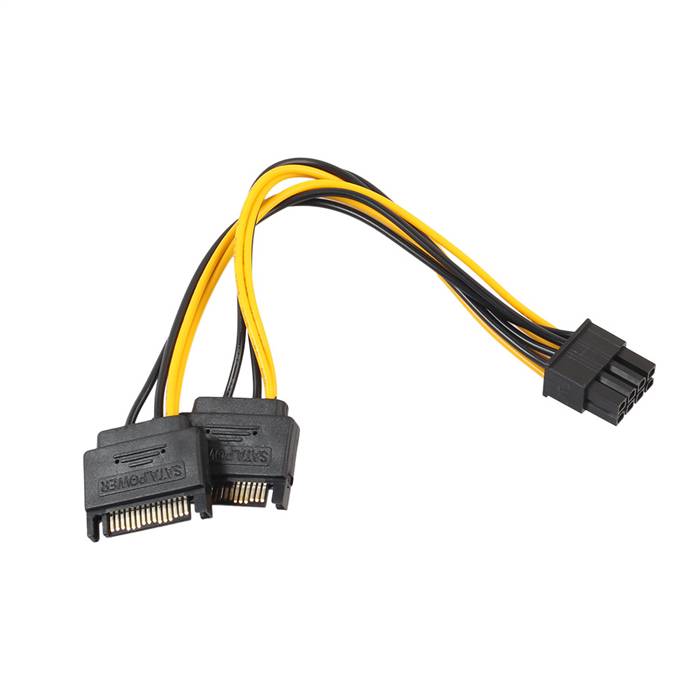

Dual SATA 15Pin Male to 8Pin (6+2 Pin) PCIe Female Graphics Video Card Power Adapter Cable

The Dual SATA 15Pin Male to 8Pin (6+2 Pin) PCIe Female Graphics Video Card Power Adapter Cable is a specialized power conversion solution designed to support modern graphics cards and other PCIe devices by leveraging multiple SATA power connectors from the power supply unit. This cable combines two SATA 15-pin power connectors into a single 8-pin (6+2 pin) PCIe connector, enabling reliable power delivery to high-performance GPUs and PCIe components. The 6+2 pin design provides flexibility, allowing the connector to function as either a 6-pin or 8-pin PCIe interface based on the graphics card's requirements. Engineered with high-quality conductors and robust construction, this adapter ensures stable power conversion while adhering to PCIe power specifications. It is ideal for upgrading systems with limited native PCIe power connectors, providing a practical solution for powering mid-range to high-end graphics cards without requiring a full PSU replacement.

Features

• Dual-Source Power Conversion: Combines two SATA 15-pin power connectors into one 8-pin (6+2 pin) PCIe connector
• Flexible Connector Design: 6+2 pin PCIe connector supports both 6-pin and 8-pin GPU power configurations
• High-Current Handling: Designed to meet power demands of GPUs (up to 150W for 8-pin PCIe connector)
• Secure Connection: Gold-plated contacts and secure latching mechanisms ensure reliable power delivery
• Voltage Compatibility: Properly converts +12V rails from SATA to PCIe specifications
• Durable Construction: High-quality wires (typically 18 AWG) and molded connectors ensure long-term reliability
• Upgrade Flexibility: Enables GPU upgrades in systems with limited native PCIe power connectors
• Wide Application: Suitable for mid-range to high-end graphics cards and other PCIe devices

Specifications

• Product Model: Dual SATA 15Pin Male to 8Pin (6+2 Pin) PCIe Female Power Adapter Cable

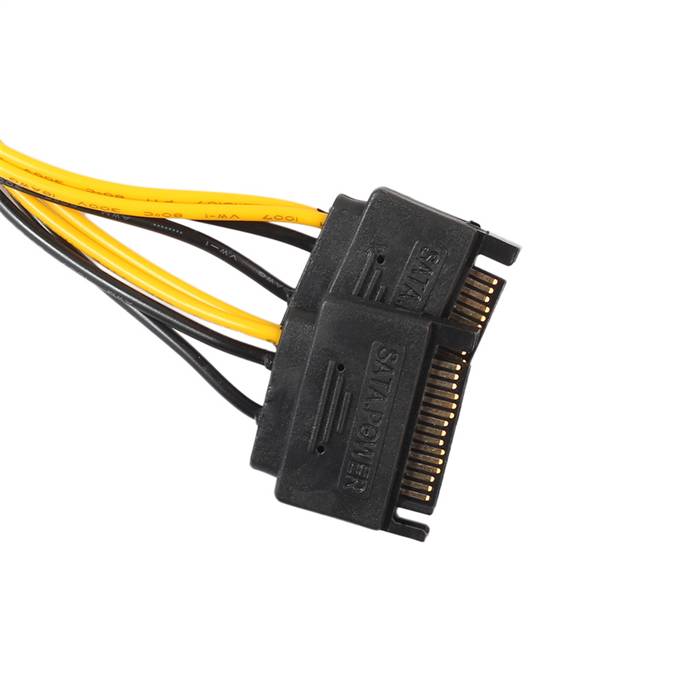

• Input Connectors: 2x SATA 15-pin, Male

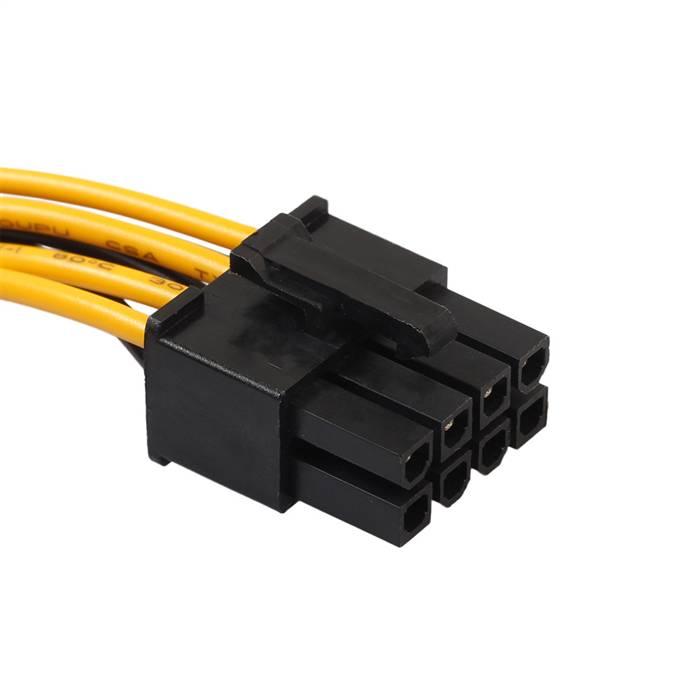

• Output Connector: 8-pin (6+2 pin) PCIe, Female
• Voltage Support: +12V (primary power rail for PCIe)
• Current Rating: Supports up to 150W power delivery (8-pin PCIe standard)
• Wire Gauge: 18 AWG (power lines)
• Cable Type: Internal Grade, Round Cable
• Shielding: Not applicable (power-only cable)
• Cable Length: 0.2m (common options)
• Operating Temperature: 0°C to +70°C
• Durability Rating: 5,000 mating cycles
• Minimum Bend Radius: 30mm

Applications

• GPU Upgrades: Powering modern graphics cards in systems with limited PCIe power connectors
• Mining Rigs: Supporting multiple GPUs in cryptocurrency mining configurations
• Test Benches: Flexible power solutions for testing GPUs and PCIe devices
• Older System Mods: Enabling modern GPU compatibility in legacy systems with abundant SATA power ports
• DIY Projects: Custom builds requiring alternative power routing for PCIe devices
• Emergency Setups: Temporary solutions for damaged or missing native PCIe cables
• Workstation Expansion: Adding auxiliary power to PCIe accelerators or capture cards
• Low-Profile Builds: Space-constrained systems where modular PSU cables are impractical
