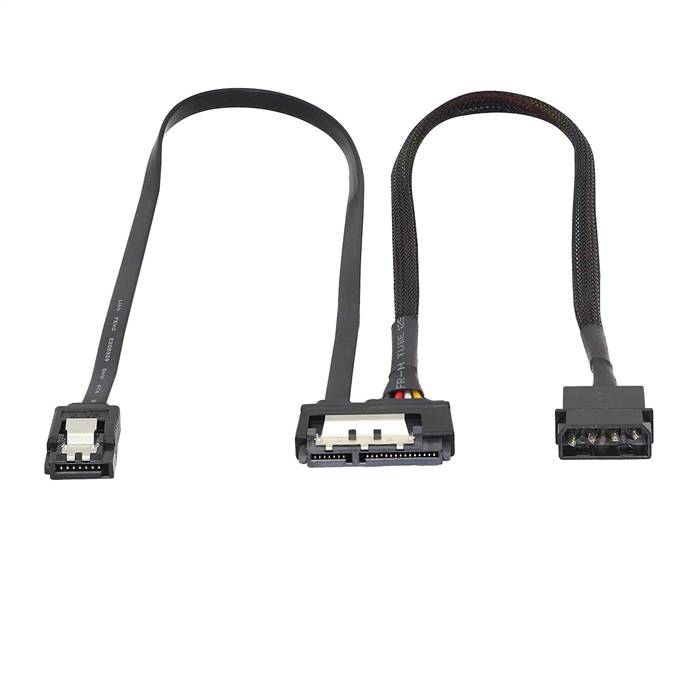

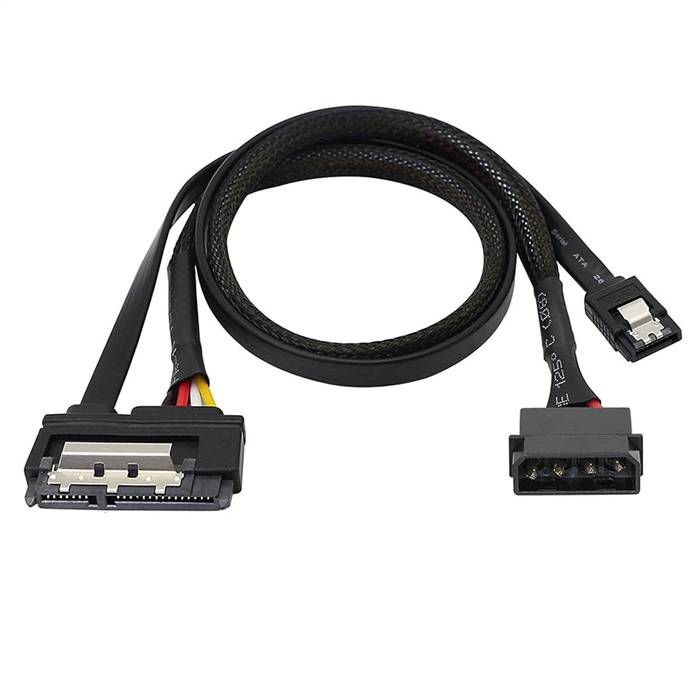

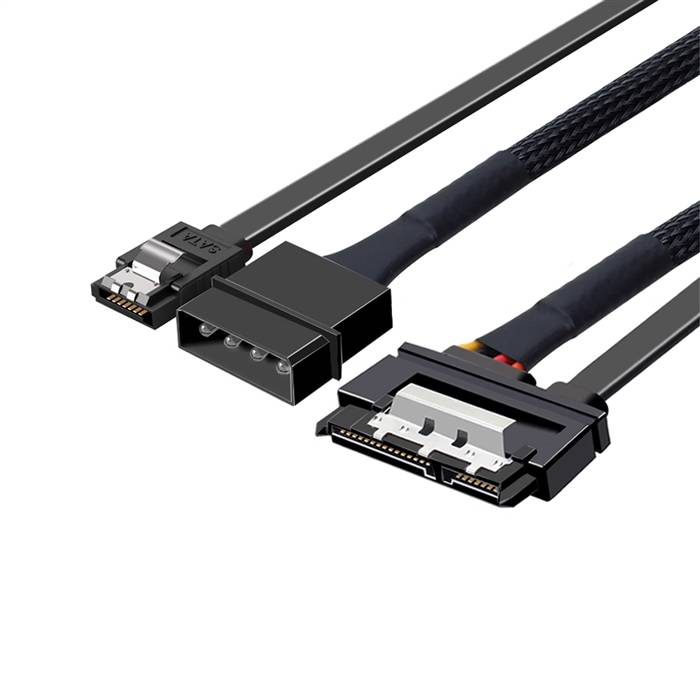

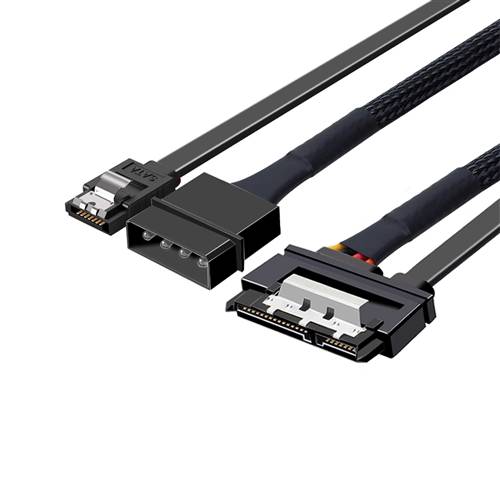

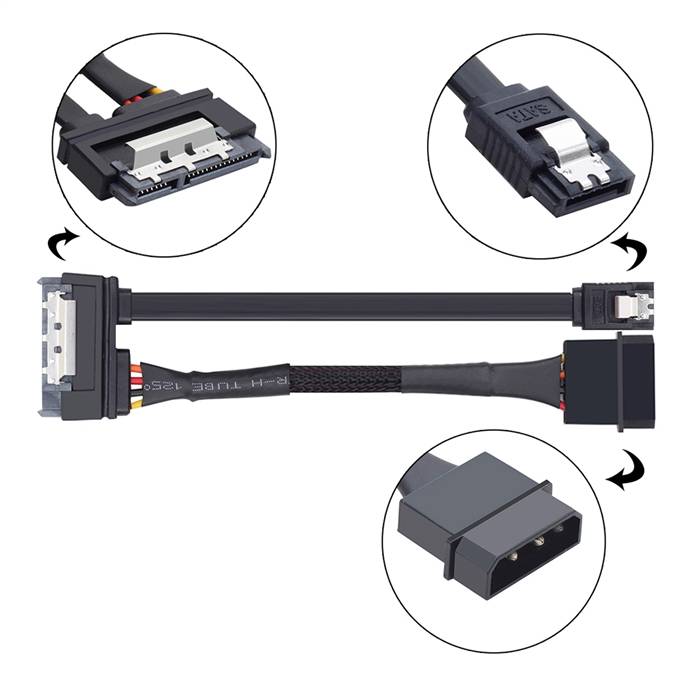

SATA III 3.0 22P (7+15) Female to 7Pin SATA Data & Big 4Pin Power Cable

The SATA III 3.0 22P (7+15) Female to 7Pin SATA Data & Big 4Pin Power Cable is a specialized interface conversion and power delivery solution designed to connect standard SATA III devices to host systems while providing dedicated power through a separate 4-pin peripheral connector. This cable features a SATA 22-pin (7+15) female connector on one end, a standard SATA 7-pin data connector on the other end, and an integrated Big 4-pin female power connector. Engineered for reliability and high-speed performance, this cable enables seamless connectivity between SATA III storage devices and compatible host interfaces while ensuring stable power delivery, making it ideal for enterprise environments, server configurations, and storage applications where separate power management is required.

Features

• Interface Conversion: Converts SATA 22-pin (7+15) female interface to standard SATA 7-pin data interface
• Dedicated Power Delivery: Integrated Big 4-pin female power connector provides stable power supply
• High-Speed Performance: Supports SATA 3.0 specifications with up to 6 Gbps data transfer rates
• Enhanced Compatibility: Enables connection between SATA host systems and storage devices
• Secure Connection: Precision-engineered connectors ensure reliable mating and stable operation
• Robust Power Management: Separate power connector ensures adequate power delivery for various drives
• Durable Construction: Quality materials ensure long-term reliability and repeated use
• Plug-and-Play Operation: Requires no additional drivers or software for installation

Specifications

• Host Connector: SATA 22-pin (7+15) Female
• Data Connector: SATA 7-pin Male
• Power Connector: Big 4-pin Female (Molex)
• Data Rate Support: Up to 6 Gbps (SATA 3.0 compatible)
• Supported Protocols: SATA 3.0/2.0/1.0
• Power Delivery: Supports standard peripheral power specifications (12V/5V)
• Cable Length: Typically 0.5m
• Operating Temperature: -20°C to +85°C
• Durability Rating: 2,500+ mating cycles (SATA connectors)
• Wire Gauge: 28-30 AWG (data), 18-20 AWG (power)
• Shielding: Individual pair shielding with overall braid protection
• Contact Plating: Gold-plated contacts (data connectors)
• Impedance: 100? ±10% (characteristic impedance)

Applications

• Storage Expansion: Connecting SATA drives to storage controllers in enterprise environments
• Server Integration: Enabling use of SATA drives in server systems with separate power management
• Data Center Infrastructure: Facilitating storage configurations in enterprise environments
• Test Benches: Temporary connectivity for testing and diagnostics of SATA devices
• Data Recovery: Facilitating drive connections for data retrieval operations
• Backup Solutions: Creating flexible backup systems utilizing SATA drives
• Technical Support: Field service applications requiring interface adaptation
• Educational Labs: Teaching storage technology and interface compatibility concepts
