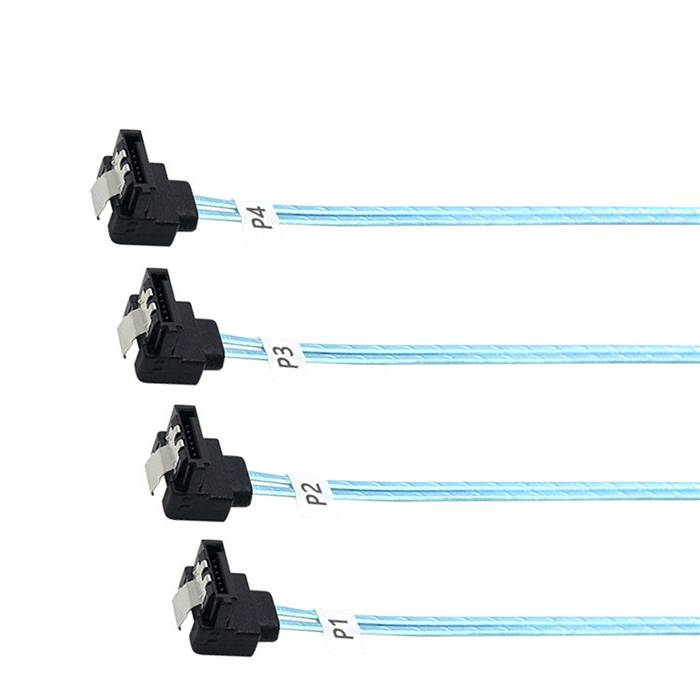

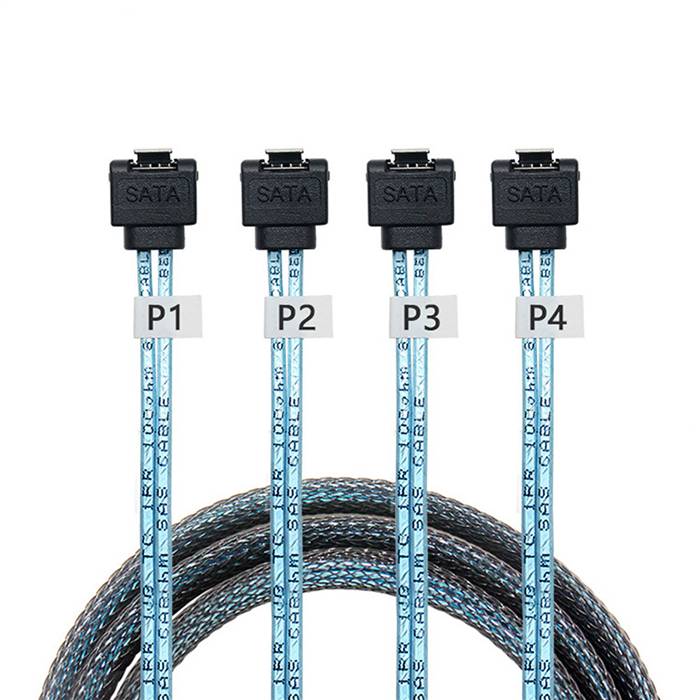

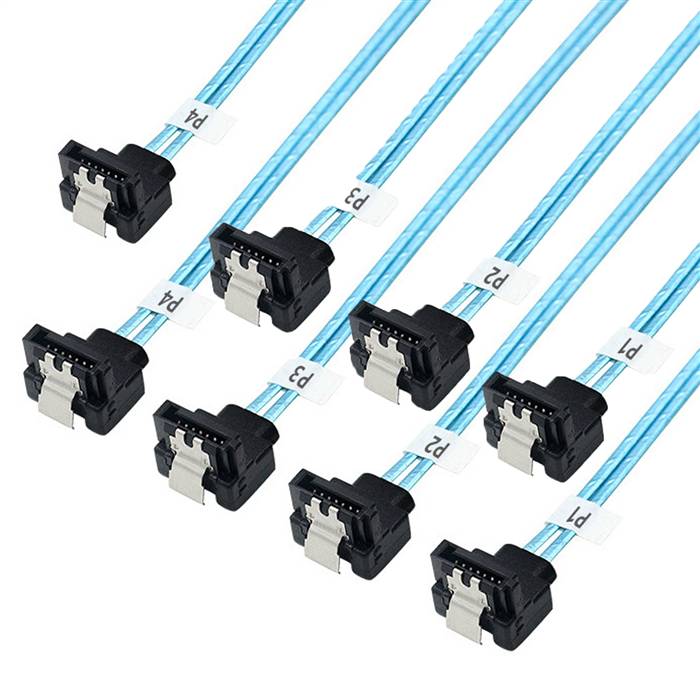

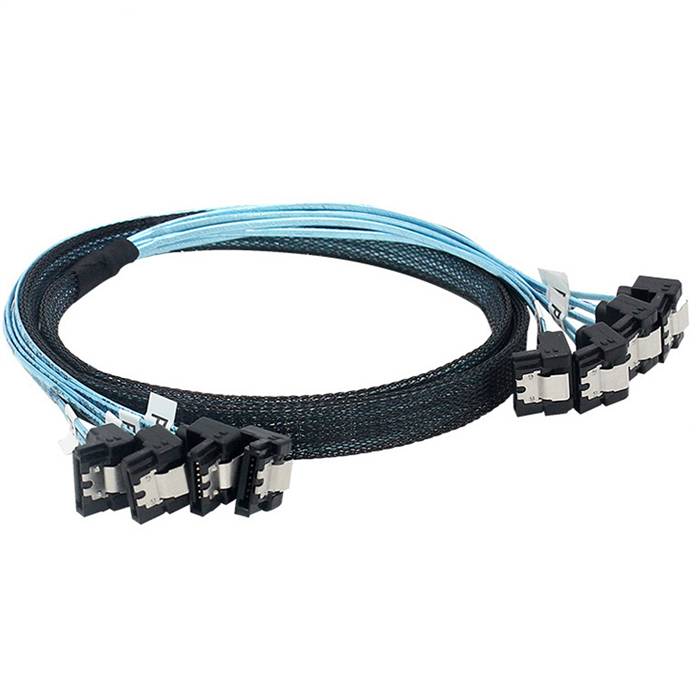

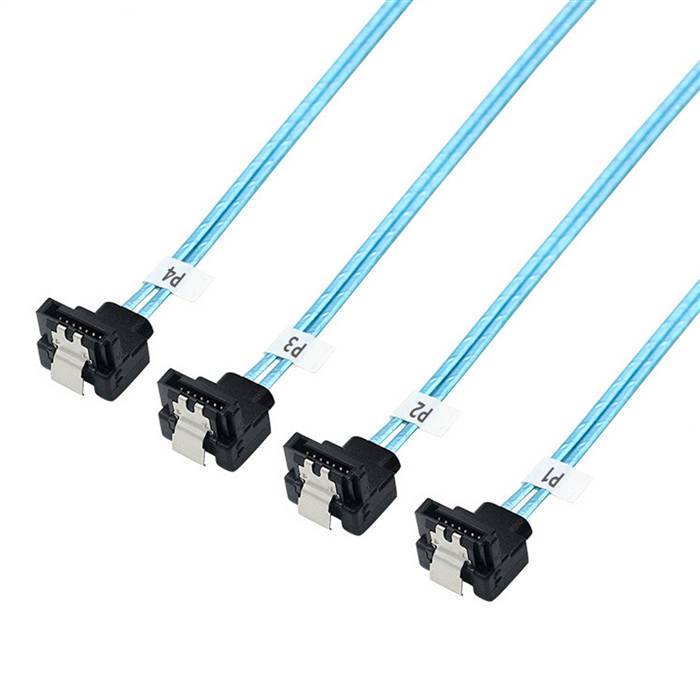

4 Right Angle SATA 7Pin to 4 Right Angle SATA 7Pin Cable

The 4 Right Angle SATA 7Pin to 4 Right Angle SATA 7Pin Cable is a high-density multi-lane connectivity solution specifically engineered for ultra-compact computing environments and space-optimized storage systems. This cable features right-angle connectors on both ends, providing maximum space efficiency in severely constrained configurations. The dual right-angle design allows for optimal cable routing in tight spaces where traditional straight connectors would cause interference or require excessive bending. Engineered to support parallel high-speed data transmission across all four independent channels, this solution ensures reliable connectivity between storage controllers and multiple drives while maintaining excellent signal integrity. The compact design makes it ideal for high-density server racks, slim storage arrays, and other space-sensitive applications where every millimeter of clearance matters.

Features

• Dual Right-Angle Configuration: Right-angle connectors on both ends for maximum space savings
• Multi-Lane Design: Four independent SATA channels in a single cable assembly
• High-Speed Data Transfer: Supports data rates up to 6 Gbps per channel (SATA 3.0)
• Ultra-Compact Design: Optimized for severely space-constrained environments
• Enhanced Signal Integrity: Precision engineering with optimized impedance matching and crosstalk reduction
• Secure Connection: Gold-plated contacts and positive latching mechanisms ensure reliable mating
• Backward Compatibility: Fully compatible with SATA 2.0 and SATA 1.0 devices
• Superior Cable Management: Single cable design minimizes clutter and maximizes airflow

Specifications

• Product Model: 4x SATA Right-Angle to Right-Angle Multi-Lane Cable
• Host Connectors: 4x SATA 7-pin, Male, Right Angle
• Device Connectors: 4x SATA 7-pin, Male, Right Angle
• Data Rate Support: Up to 6 Gbps per channel (SATA 3.0)
• Supported Protocols: SATA 3.0, 2.0, 1.0
• Cable Type: Internal Grade, Ultra-Thin Round Cable
• Wire Gauge: 30 AWG per channel
• Impedance: 100? ±10% per channel
• Shielding: Individual channel shielding with overall braid protection
• Cable Length:  0.5m, 1.0m
• Operating Temperature: 0°C to +70°C
• Durability Rating: 5,000 mating cycles per connector
• Minimum Bend Radius: 25mm

Applications

• Ultra-Dense Server Racks: Ideal for high-density server configurations with minimal clearance
• Slim Storage Arrays: Perfect for compact storage enclosures and JBOD systems
• Blade Server Environments: Essential for blade server configurations with extreme space limitations
• Compact NAS Devices: Network-attached storage systems with limited internal space
• Small Form Factor PCs: Ideal for mini-ITX and other compact computer builds
• Embedded Systems: Space-constrained industrial and embedded computing applications
• OEM Applications: Designed for system integrators requiring maximum space optimization
• Data Center Modernization: Upgrading existing infrastructure with space-efficient connectivity solutions
