4 Straight SATA 7Pin to 4 Right Angle SATA 7Pin Cable with Braided Sleeving

The 4 Straight SATA 7Pin to 4 Right Angle SATA 7Pin Cable with Braided Sleeving is a premium high-density multi-lane connectivity solution designed for enterprise storage systems and high-performance computing environments where space optimization, durability, and professional cable management are critical. This cable features four independent SATA channels within a single assembly, with straight connectors on one end and right-angle connectors on the opposite end, all encased in a durable braided sleeving that enhances abrasion resistance, improves longevity, and provides a clean, organized appearance. The right-angle design enables efficient cable routing in tight spaces, while the braided sleeving reduces clutter and maintains optimal airflow. Engineered to support high-speed data transmission across all channels, this solution ensures reliable connectivity between SATA controllers and multiple drives, making it ideal for storage arrays, servers, workstations, and other applications requiring robust and space-efficient cable management.

Features

• High-Density Multi-Lane Design: Four independent SATA channels in a single cable assembly

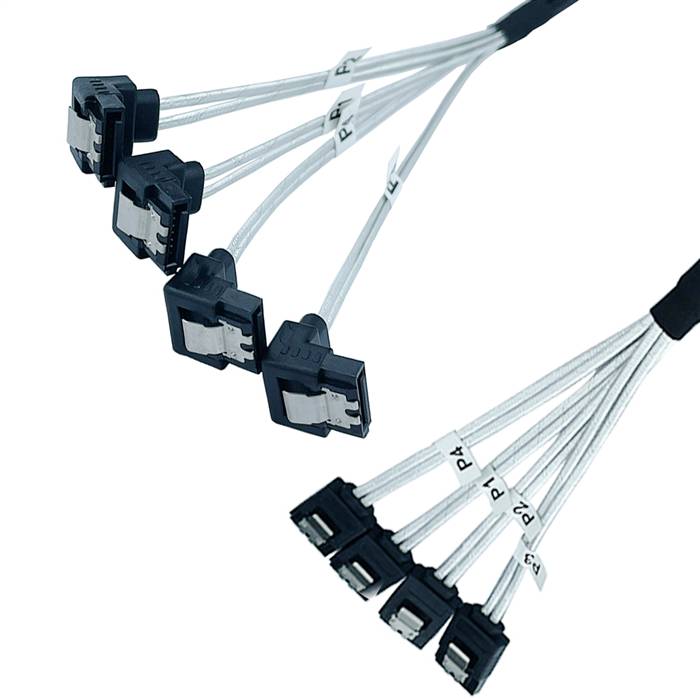

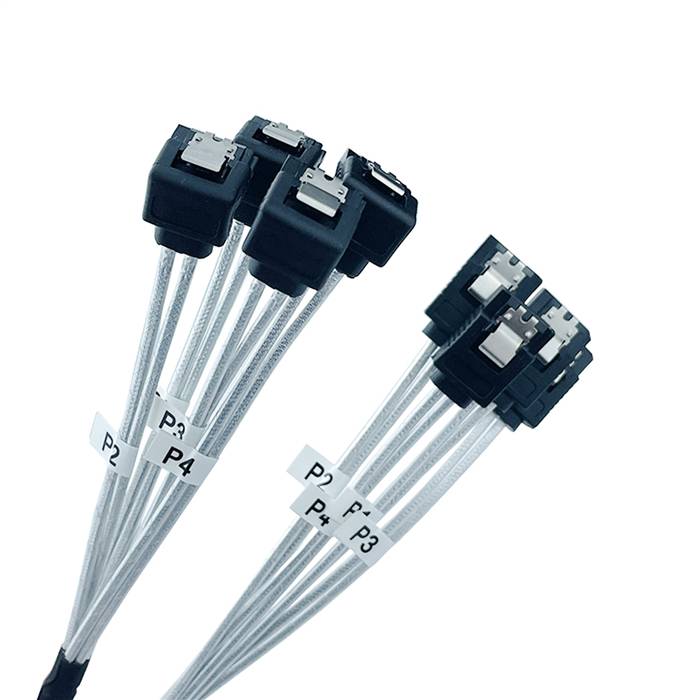

• Hybrid Connector Configuration: Straight connectors on one end and right-angle connectors on the opposite end

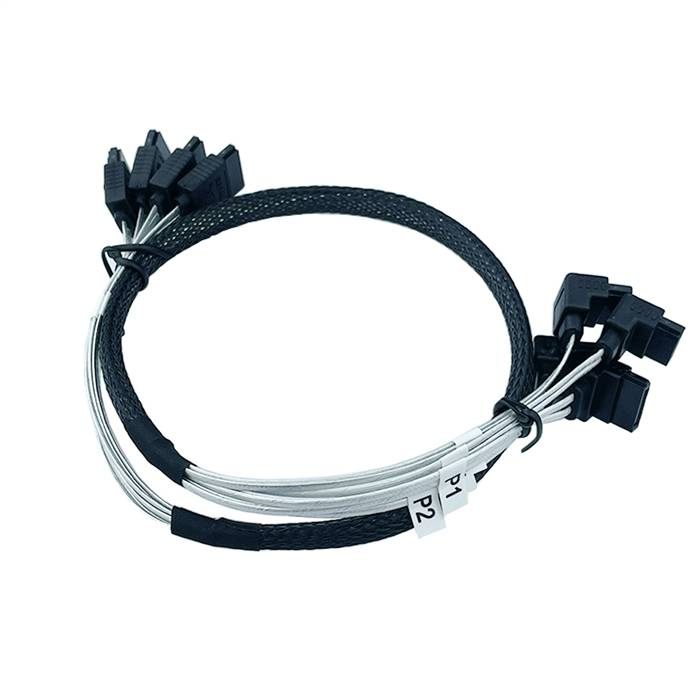

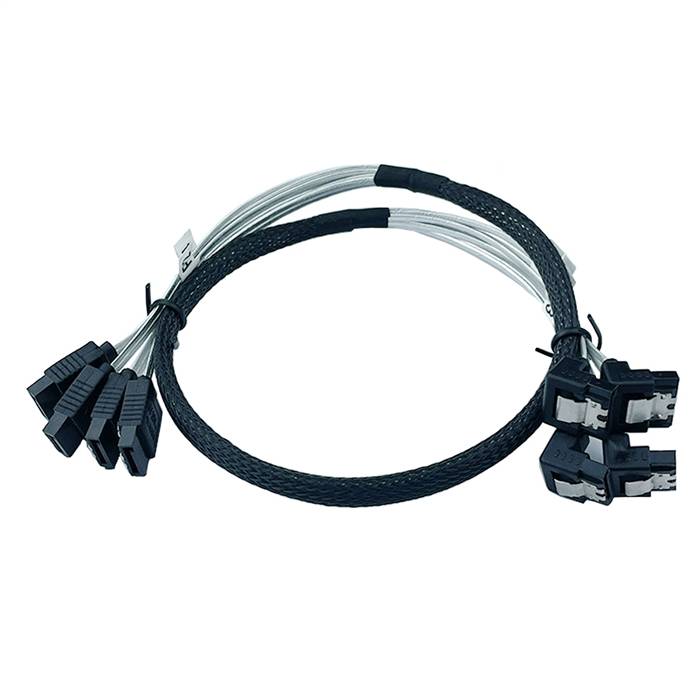

• Premium Braided Sleeving: Enhances durability, abrasion resistance, and aesthetic appeal
• High-Speed Data Transfer: Supports data rates up to 6 Gbps per channel (SATA 3.0)
• Space Optimization: Right-angle connectors reduce cable strain and save space in compact systems
• Enhanced Signal Integrity: Precision engineering with optimized impedance matching and reduced crosstalk
• Secure Connection: Gold-plated contacts and robust latching mechanisms ensure reliable mating
• Backward Compatibility: Fully compatible with SATA 2.0 and SATA 1.0 devices

Specifications

• Product Model: 4x SATA Straight to Right-Angle Multi-Lane Cable with Braided Sleeving

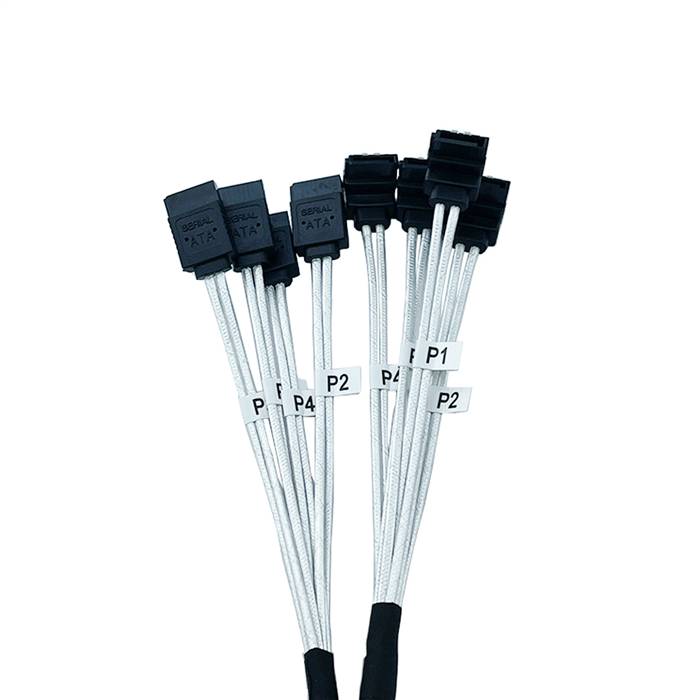

• Host Connectors: 4x SATA 7-pin, Male, Straight

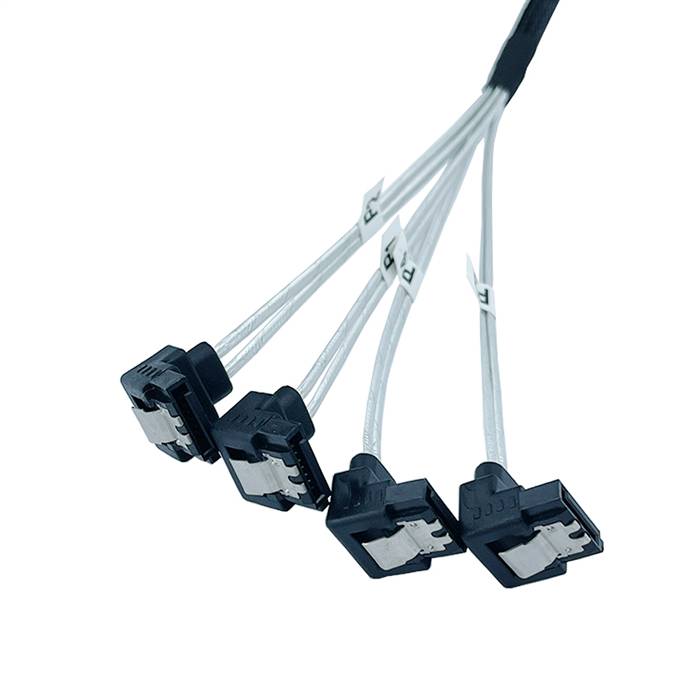

• Device Connectors: 4x SATA 7-pin, Male, Right Angle
• Data Rate Support: Up to 6 Gbps per channel (SATA 3.0)
• Supported Protocols: SATA 3.0, 2.0, 1.0
• Cable Type: Internal Grade, Braided Sleeving with Individual Channel Separation
• Wire Gauge: 30 AWG per channel
• Impedance: 100? ±10% per channel
• Shielding: Individual channel shielding with overall braid protection
• Braided Sleeving Material: Nylon or PET mesh for enhanced durability and flexibility
• Cable Length: 0.5m, 1.0m
• Operating Temperature: 0°C to +70°C
• Durability Rating: 5,000 mating cycles per connector
• Minimum Bend Radius: 30mm

Applications

• High-Density Servers: Ideal for rack servers and blade systems with limited clearance and premium cable management
• Enterprise Storage Arrays: Connecting multiple drives in RAID configurations with space constraints and enhanced durability
• Gaming and Workstation Builds: High-performance systems where aesthetics, space optimization, and cable management are critical
• Data Center Infrastructure: Enterprise storage solutions requiring organized and durable multi-drive connectivity
• NAS Systems: Network-attached storage devices with high drive bay counts and premium cable management
• OEM and Custom Builds: Designed for system integrators needing space-optimized multi-lane solutions with braided sleeving
• Test and Development Labs: Environments requiring reliable and durable multi-channel SATA connections for validation
• Broadcast and Media Systems: Video editing and storage systems requiring both performance and professional aesthetics in tight spaces
