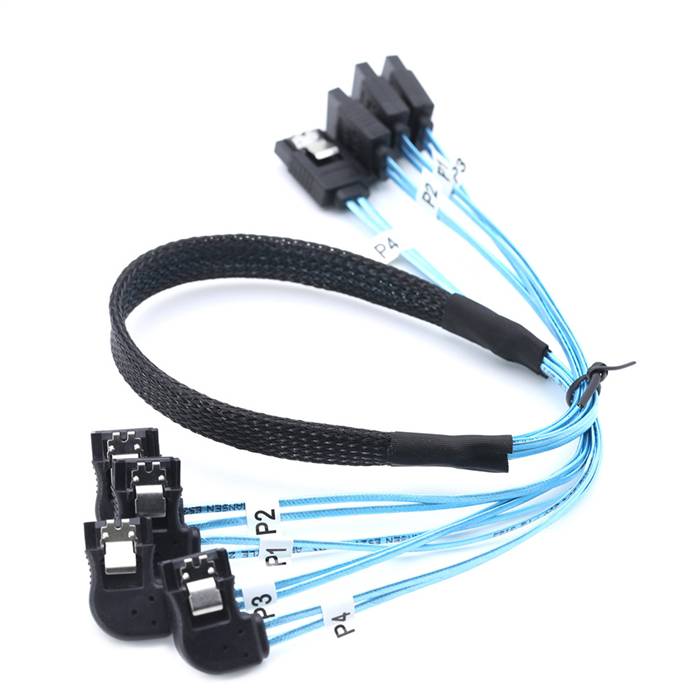

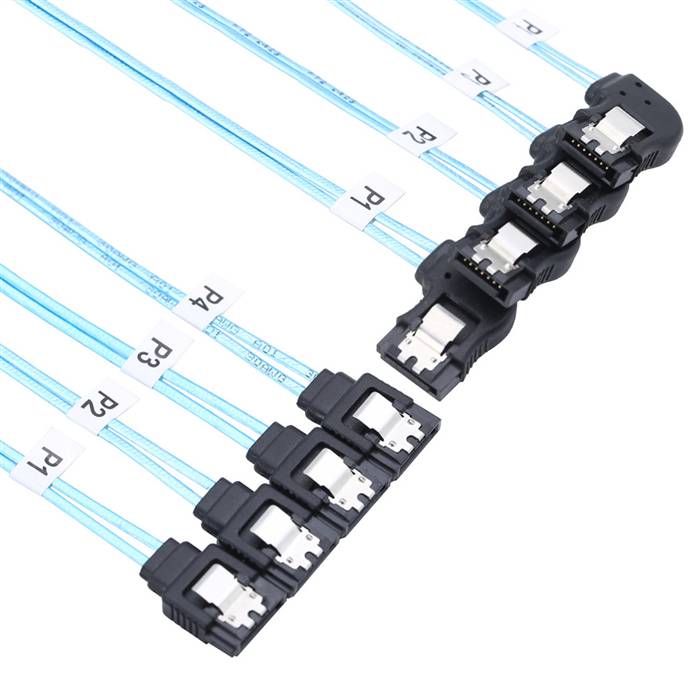

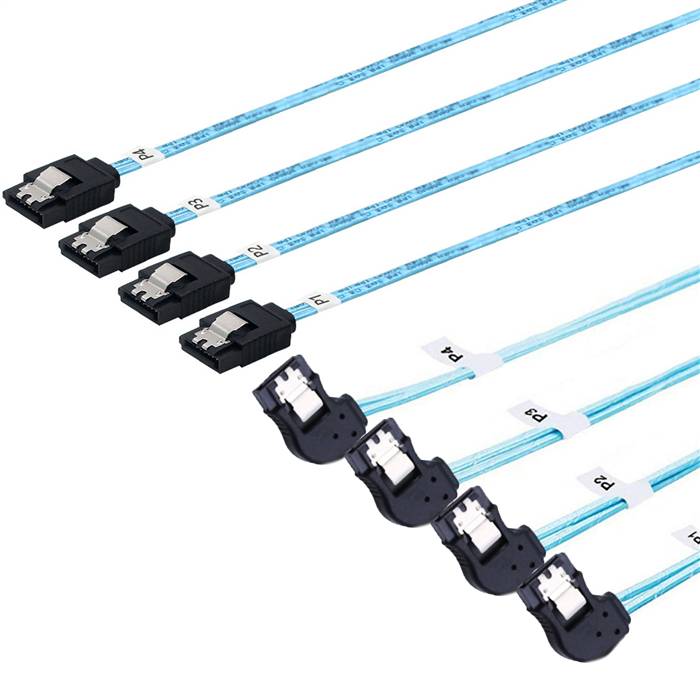

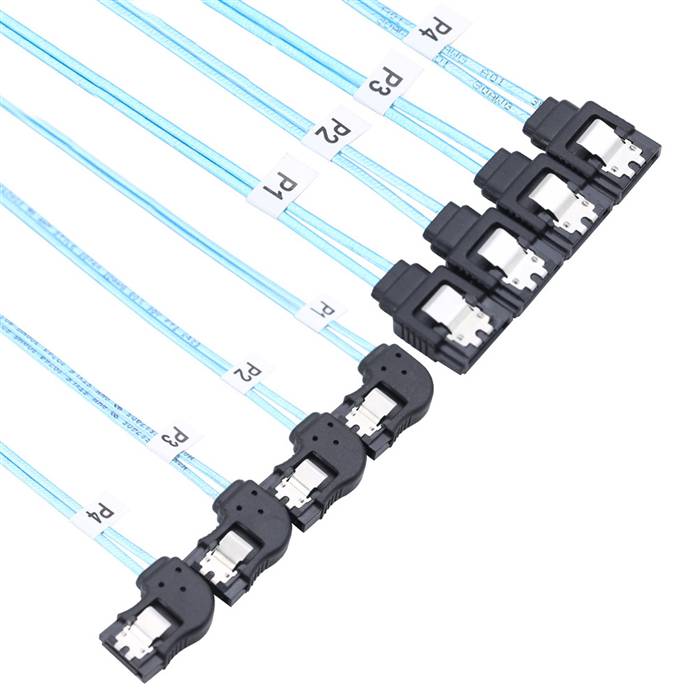

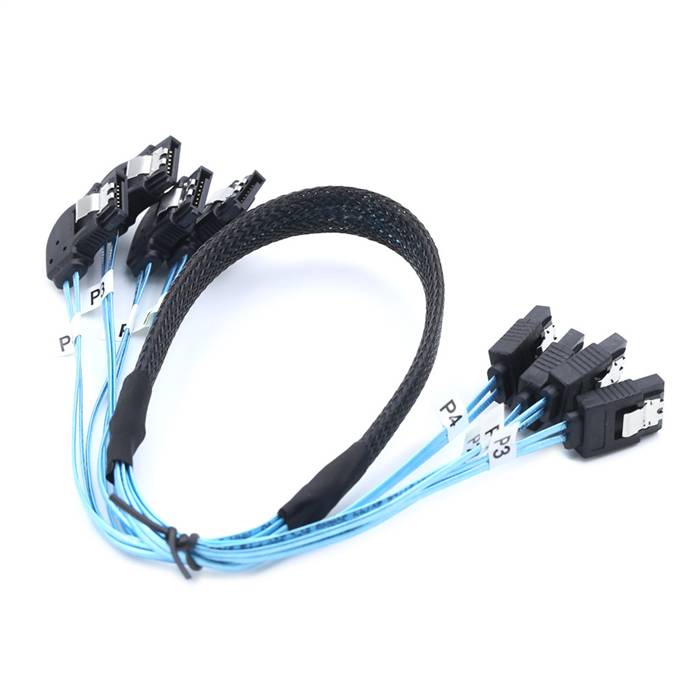

4 Straight SATA 7Pin to 4 Right Bend SATA 7Pin Cable

The 4 Straight SATA 7Pin to 4 Right Bend SATA 7Pin Cable is a specialized multi-lane connectivity solution designed for enterprise storage systems and computing environments requiring optimized right-side clearance in space-constrained configurations. This cable features four independent SATA channels with straight connectors on one end and right-bend connectors on the opposite end, providing an efficient solution for systems where traditional cable orientations cannot address right-side spatial challenges. The right-bend design enables superior cable routing in configurations where connectors must avoid obstructions on the right side while maintaining parallel high-speed data transmission across all channels. Engineered for maximum signal integrity and reliable performance, this solution is ideal for modern server architectures, storage arrays, and computing environments requiring right-side optimized connectivity with organized cable management.

Features

• Asymmetric Connector Design: Straight connectors on one end and right-bend connectors on the opposite end
• Multi-Lane Configuration: Four independent SATA channels in a single cable assembly
• High-Speed Data Transfer: Supports data rates up to 6 Gbps per channel (SATA 3.0)
• Right-Side Clearance Optimization: Right-bend connectors address specific spatial constraints in right-side layouts
• Enhanced Signal Integrity: Precision engineering with optimized impedance matching and reduced crosstalk
• Secure Connection: Gold-plated contacts and positive latching mechanisms ensure reliable mating
• Backward Compatibility: Fully compatible with SATA 2.0 and SATA 1.0 devices
• Organized Cable Management: Single cable design reduces clutter while addressing specific routing requirements

Specifications

• Product Model: 4x SATA Straight to Right-Bend Multi-Lane Cable
• Host Connectors: 4x SATA 7-pin, Male, Straight
• Device Connectors: 4x SATA 7-pin, Male, Right Bend (45-degree orientation)
• Data Rate Support: Up to 6 Gbps per channel (SATA 3.0)
• Supported Protocols: SATA 3.0, 2.0, 1.0
• Cable Type: Internal Grade, Round Cable with Individual Channel Separation
• Wire Gauge: 30 AWG per channel
• Impedance: 100? ±10% per channel
• Shielding: Individual channel shielding with overall braid protection
• Cable Length: 0.5m, 1.0m
• Operating Temperature: 0°C to +70°C
• Durability Rating: 5,000 mating cycles per connector
• Minimum Bend Radius: 30mm

Applications

• Right-Side Constrained Servers: Ideal for server configurations with right-side clearance limitations
• Modern Storage Arrays: Perfect for storage systems requiring right-oriented cable routing solutions
• High-Density Data Centers: Space-optimized configurations in enterprise environments
• OEM Integration: Designed for system integrators dealing with right-side form factor requirements
• Rackmount Systems: Suitable for rack-mounted equipment with right-side spatial constraints
• Test and Development: Laboratory environments requiring right-side optimized cable solutions
• Upgrade Projects: Enables compatibility with systems having right-side clearance limitations
• Workstation Applications: Professional workstations with specific right-side cable management needs
