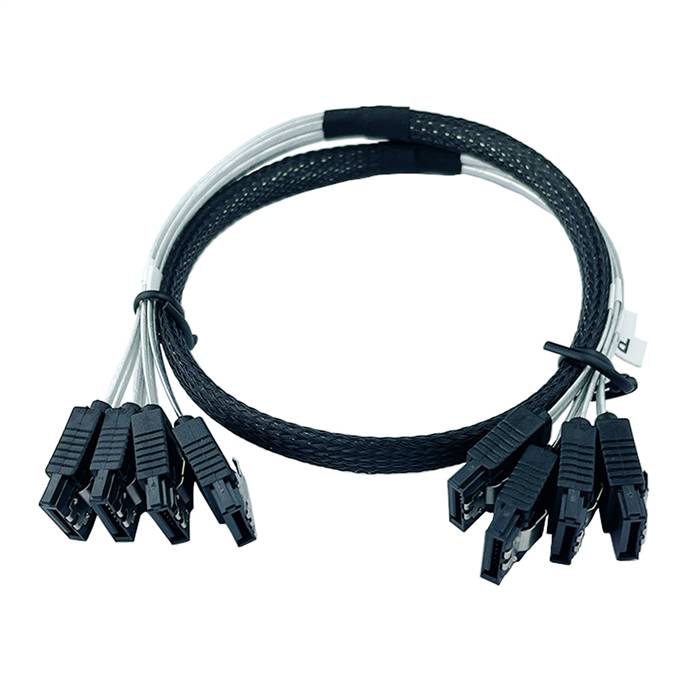

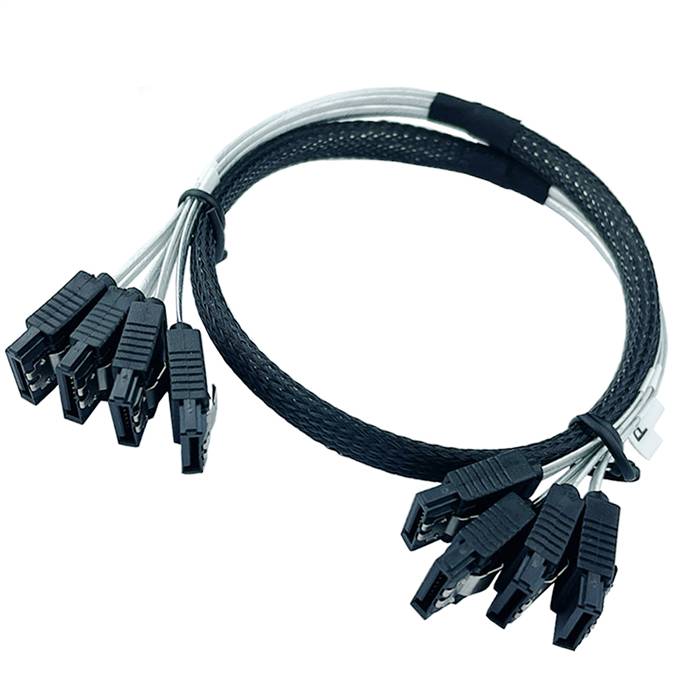

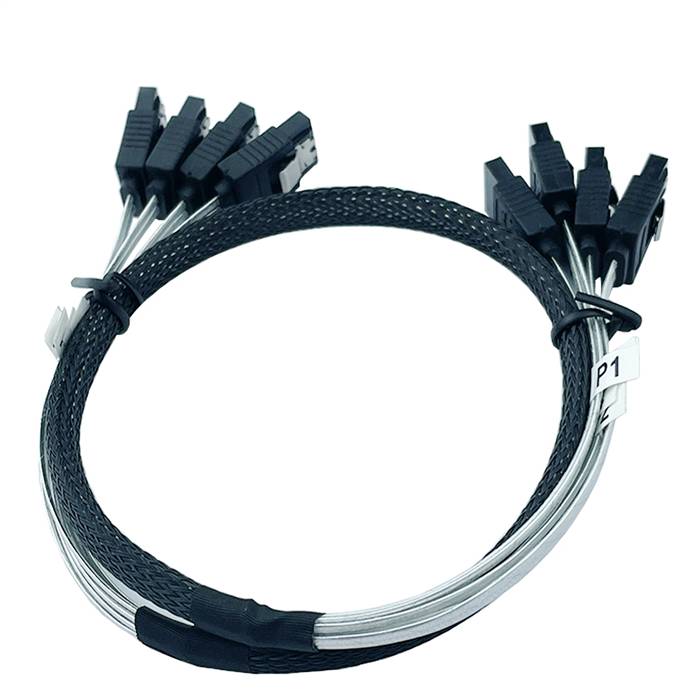

4 Straight SATA 7Pin to 4 Straight SATA 7Pin Cable with Braided Sleeving

The 4 Straight SATA 7Pin to 4 Straight SATA 7Pin Cable with Braided Sleeving is a high-density multi-lane connectivity solution designed for enterprise storage systems and high-performance computing environments where durability, aesthetics, and cable management are paramount. This cable features four independent SATA channels within a single assembly, with straight connectors on both ends and a premium braided sleeving that enhances durability, protects against abrasion, and improves overall cable longevity. The braided sleeving also provides a professional appearance while reducing cable clutter and maintaining optimal airflow in dense configurations. Engineered to support high-speed data transmission across all channels, this solution ensures reliable connectivity between SATA controllers and multiple drives, making it ideal for storage arrays, servers, workstations, and other applications requiring robust and organized cable management.

Features

• High-Density Multi-Lane Design: Four independent SATA channels in a single cable assembly
• Premium Braided Sleeving: Enhances durability, abrasion resistance, and aesthetic appeal
• Dual Straight Connectors: Straight connectors on both ends for simplified installation and cable management
• High-Speed Data Transfer: Supports data rates up to 6 Gbps per channel (SATA 3.0)
• Enhanced Signal Integrity: Precision engineering with optimized impedance matching and reduced crosstalk
• Secure Connection: Gold-plated contacts and robust latching mechanisms ensure reliable mating
• Backward Compatibility: Fully compatible with SATA 2.0 and SATA 1.0 devices
• Organized Cable Management: Braided sleeving reduces clutter and improves airflow in dense systems

Specifications

• Product Model: 4x SATA Straight to Straight Multi-Lane Cable with Braided Sleeving
• Connectors: 8x SATA 7-pin, Male, Straight (4 on each end)
• Data Rate Support: Up to 6 Gbps per channel (SATA 3.0)
• Supported Protocols: SATA 3.0, 2.0, 1.0
• Cable Type: Internal Grade, Braided Sleeving with Individual Channel Separation
• Wire Gauge: 30 AWG per channel
• Impedance: 100? ±10% per channel
• Shielding: Individual channel shielding with overall braid protection
• Braided Sleeving Material: Nylon or PET mesh for enhanced durability and flexibility
• Cable Length: 0.5m, 1.0m
• Operating Temperature: 0°C to +70°C
• Durability Rating: 5,000 mating cycles per connector
• Minimum Bend Radius: 30mm

Applications

• Enterprise Storage Arrays: Connecting multiple drives in RAID configurations and storage enclosures with enhanced durability
• High-Density Servers: Ideal for server backplanes requiring organized and durable multi-drive connectivity
• Gaming and Workstation Builds: High-performance systems where aesthetics and cable management are critical
• Data Centers: Large-scale storage solutions requiring robust and organized multi-drive connectivity
• NAS Systems: Network-attached storage devices with high drive bay counts and premium cable management
• OEM and Custom Builds: Designed for system integrators and manufacturers needing high-density SATA solutions with braided sleeving
• Test and Development Labs: Environments requiring reliable and durable multi-channel SATA connections for validation
• Broadcast and Media Systems: Video editing and storage systems requiring both performance and professional aesthetics
• Cloud Infrastructure: Storage nodes in cloud computing environments requiring high-bandwidth connectivity
