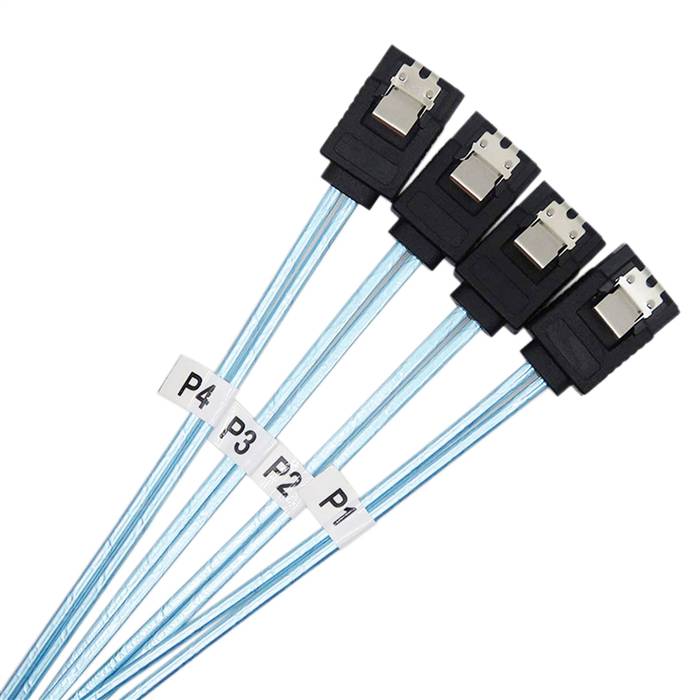

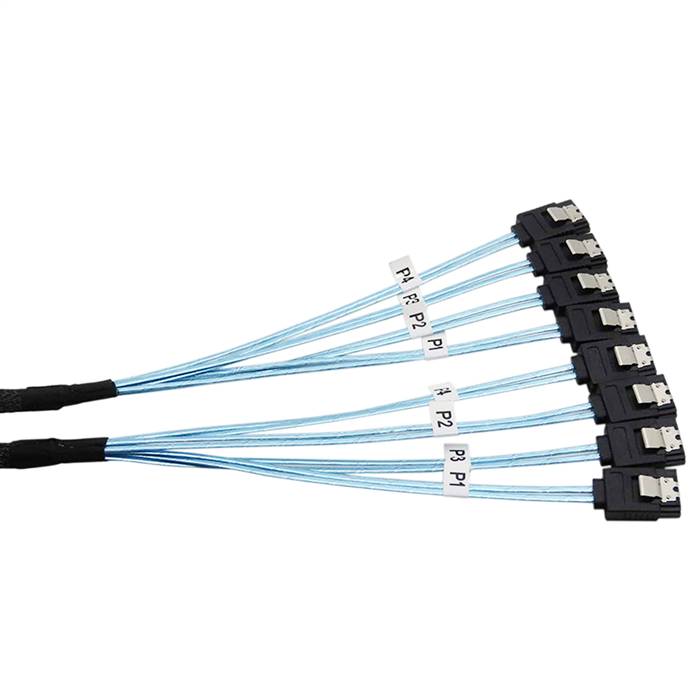

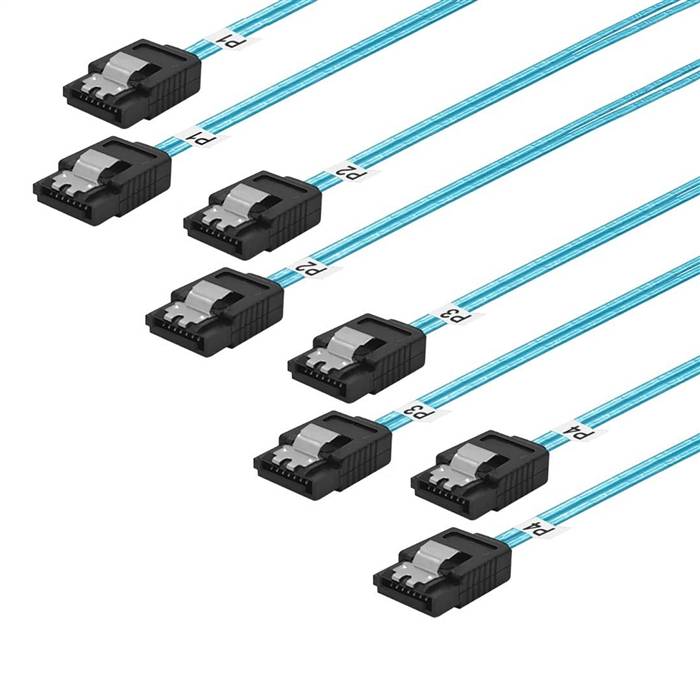

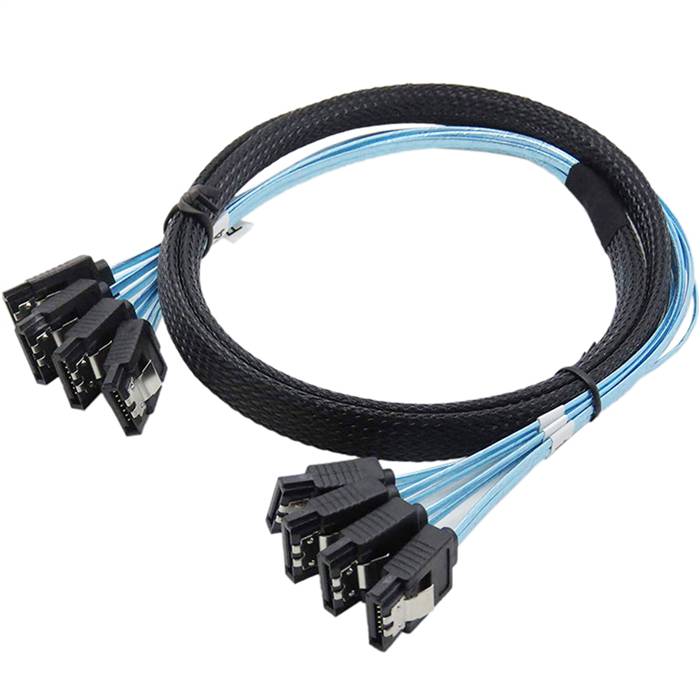

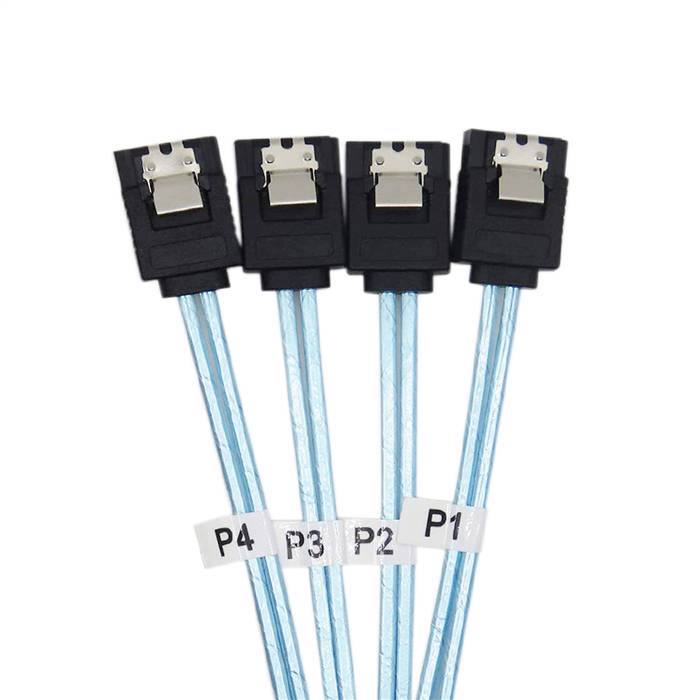

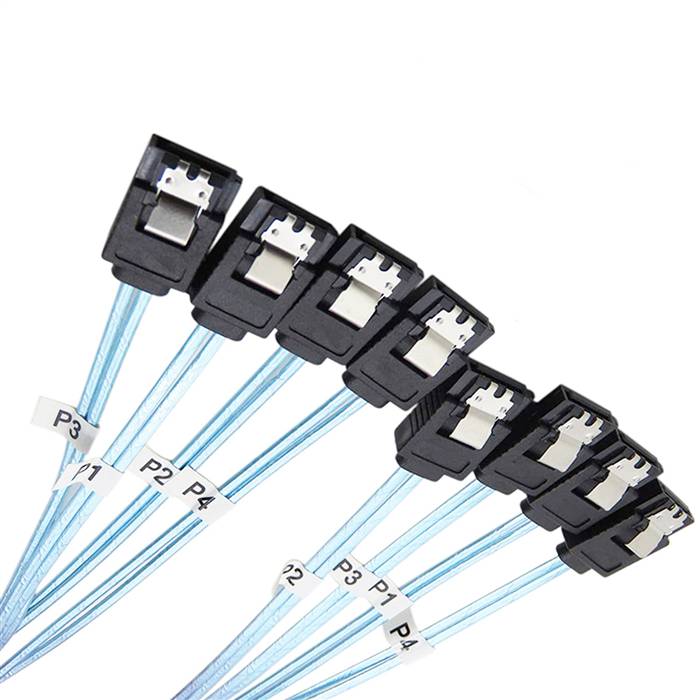

4 Straight SATA 7Pin to 4 Straight SATA 7Pin Cable

The 4 Straight SATA 7Pin to 4 Straight SATA 7Pin Cable is a high-density multi-lane connectivity solution designed for enterprise storage systems and data transfer applications requiring multiple simultaneous SATA connections. This cable provides four independent point-to-point SATA channels within a single cable assembly, ensuring optimal signal integrity and parallel data transmission performance. Engineered with precision-molded straight connectors and high-quality conductors, this multi-lane solution supports the full SATA 3.0 specification across all four channels while maintaining backward compatibility with earlier SATA standards. The straight connector design on both ends facilitates easy installation in various system configurations, making it ideal for storage arrays, server backplanes, and other high-density applications requiring multiple SATA connections with organized cable management.

Features

• Multi-Lane Configuration: Four independent SATA channels in a single cable assembly
• Dual Straight Connectors: Straight connectors on both ends for easy installation and cable management
• High-Speed Data Transfer: Supports data rates up to 6 Gbps per channel (SATA 3.0)
• Enhanced Signal Integrity: Precision engineering with optimized impedance matching and reduced crosstalk
• Secure Connection: Gold-plated contacts and secure latching mechanisms ensure reliable mating
• Backward Compatibility: Fully compatible with SATA 2.0 and SATA 1.0 devices
• Organized Cable Management: Single cable design reduces clutter and improves airflow
• Reliable Performance: Designed for continuous operation in various environments

Specifications

• Product Model: 4x SATA Straight to Straight Multi-Lane Cable
• Connectors: 8x SATA 7-pin, Male, Straight (4 on each end)
• Data Rate Support: Up to 6 Gbps per channel (SATA 3.0)
• Supported Protocols: SATA 3.0, 2.0, 1.0
• Cable Type: Internal Grade, Round Cable with Individual Channel Separation
• Wire Gauge: 30 AWG per channel
• Impedance: 100? ±10% per channel
• Shielding: Individual channel shielding with overall braid protection
• Cable Length: 0.5m, 1.0m
• Operating Temperature: 0°C to +70°C
• Durability Rating: 5,000 mating cycles per connector
• Minimum Bend Radius: 30mm

Applications

• Storage Arrays: Connecting multiple drives in RAID configurations and storage enclosures
• Server Backplanes: High-density server installations requiring multiple SATA connections
• NAS Systems: Ideal for network-attached storage devices with multiple drive bays
• Data Centers: Enterprise storage solutions requiring organized multi-drive connectivity
• Workstations: High-performance computing systems with multiple storage devices
• Backup Systems: Data backup solutions requiring parallel storage connections
• OEM Applications: Designed for system integrators and manufacturers requiring multi-lane SATA solutions
• Test and Development: Laboratory environments requiring multiple simultaneous SATA connections
