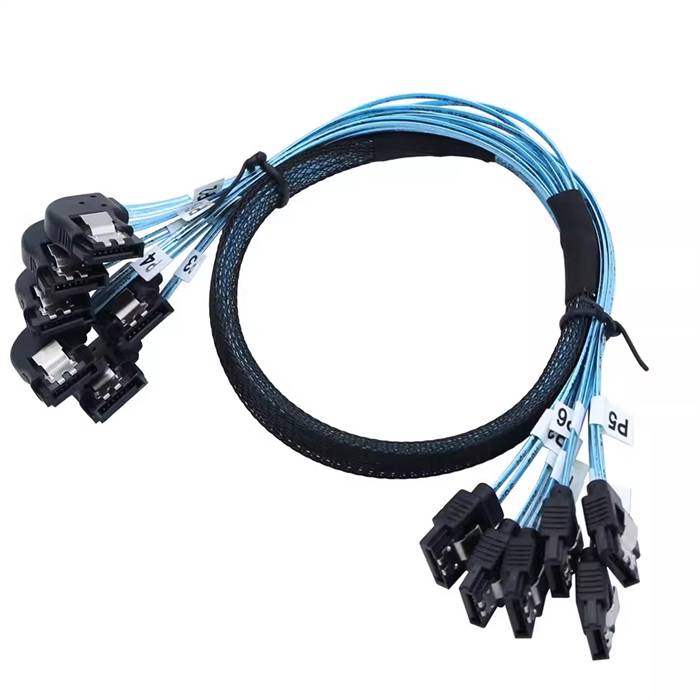

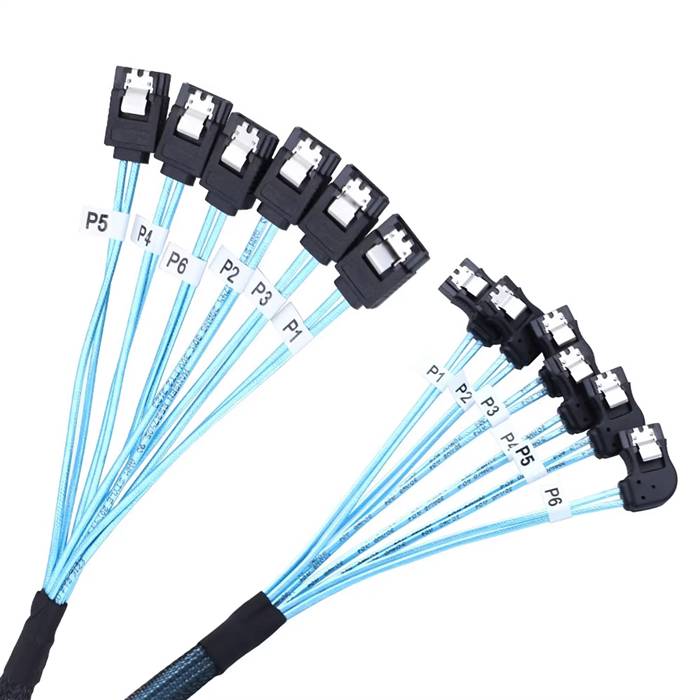

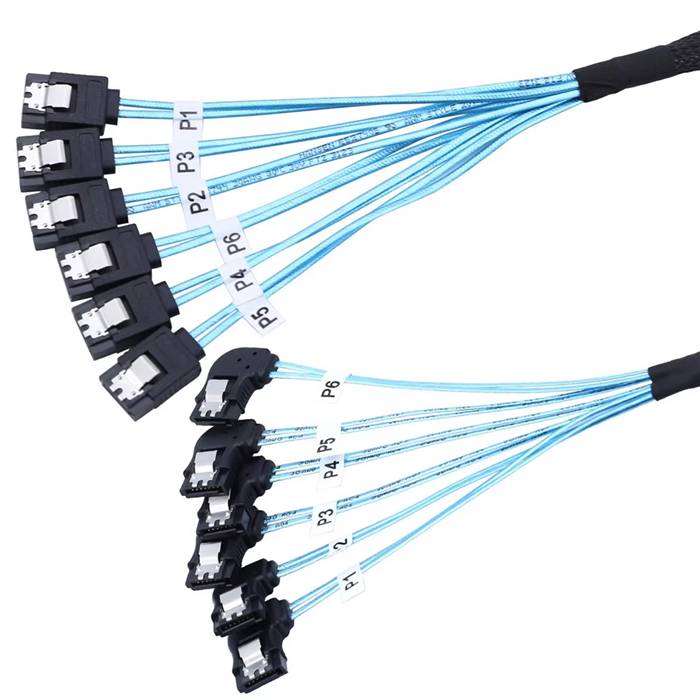

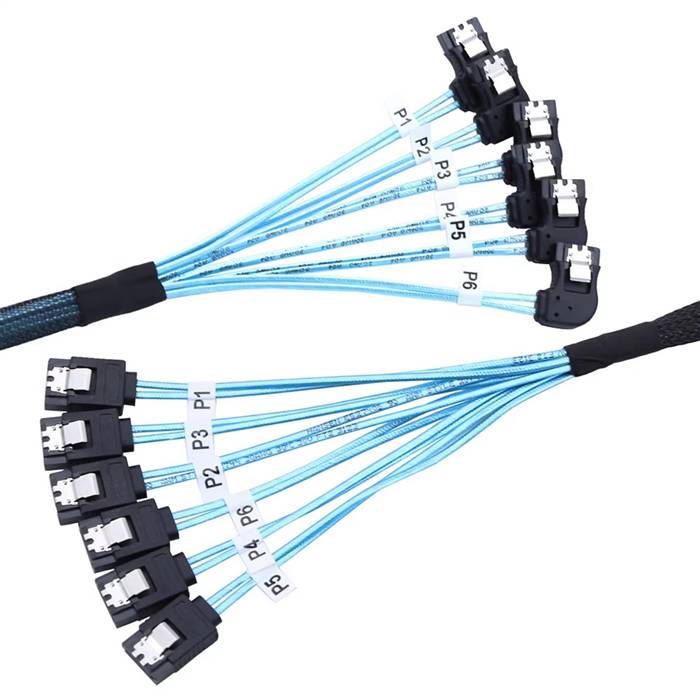

6 Straight SATA 7Pin to 6 Left Bend SATA 7Pin Cable

The 6 Straight SATA 7Pin to 6 Left Bend SATA 7Pin Cable is a high-density multi-lane connectivity solution engineered for enterprise storage systems and specialized computing environments requiring optimized left-side clearance and advanced cable management. This cable features six independent SATA channels with straight connectors on one end and left-bend connectors on the opposite end, providing an innovative solution for configurations where traditional cable orientations cannot address left-side spatial challenges. The left-bend design enables superior cable routing in systems where connectors must avoid obstructions on the left side while maintaining parallel high-speed data transmission across all channels. Engineered for maximum signal integrity and reliable performance, this solution is ideal for asymmetric server architectures, custom storage arrays, and specialized computing environments requiring left-side optimized connectivity with minimal cable clutter.

Features

• High-Density Multi-Lane Design: Six independent SATA channels in a single cable assembly
• Hybrid Connector Configuration: Straight connectors on one end and left-bend connectors on the opposite end
• High-Speed Data Transfer: Supports data rates up to 6 Gbps per channel (SATA 3.0)
• Left-Side Clearance Optimization: Left-bend connectors address specific spatial constraints in left-side layouts
• Enhanced Signal Integrity: Precision engineering with optimized impedance matching and reduced crosstalk
• Secure Connection: Gold-plated contacts and positive latching mechanisms ensure reliable mating
• Backward Compatibility: Fully compatible with SATA 2.0 and SATA 1.0 devices
• Organized Cable Management: Single cable design reduces clutter while addressing specific routing requirements

Specifications

• Product Model: 6x SATA Straight to Left-Bend Multi-Lane Cable
• Host Connectors: 6x SATA 7-pin, Male, Straight
• Device Connectors: 6x SATA 7-pin, Male, Left Bend (45-degree orientation)
• Data Rate Support: Up to 6 Gbps per channel (SATA 3.0)
• Supported Protocols: SATA 3.0, 2.0, 1.0
• Cable Type: Internal Grade, Round Cable with Individual Channel Separation
• Wire Gauge: 30 AWG per channel
• Impedance: 100? ±10% per channel
• Shielding: Individual channel shielding with overall braid protection
• Cable Length: 0.5m, 1.0m
• Operating Temperature: 0°C to +70°C
• Durability Rating: 5,000 mating cycles per connector
• Minimum Bend Radius: 35mm

Applications

• Left-Side Constrained Servers: Ideal for server configurations with left-side clearance limitations
• Asymmetric Storage Arrays: Perfect for custom storage systems requiring left-oriented cable routing
• High-Density Data Centers: Space-optimized configurations in enterprise environments with left-side constraints
• OEM Integration: Designed for system integrators dealing with left-side form factor requirements
• Industrial Computing Systems: Suitable for industrial PCs with left-side spatial constraints
• Test and Development: Laboratory environments requiring left-side optimized cable solutions
• Retrofit Projects: Enables compatibility with legacy systems having left-side clearance limitations
• Specialized Workstations: Professional workstations with specific left-side cable management needs
