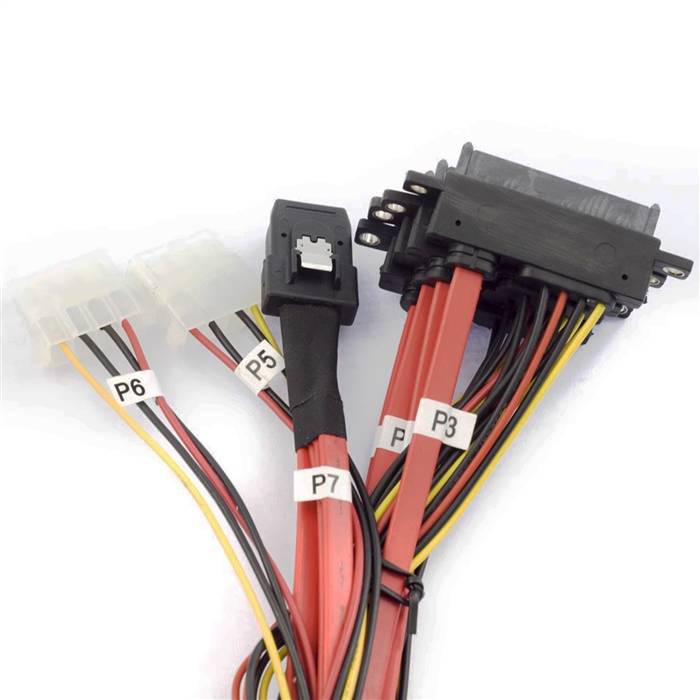

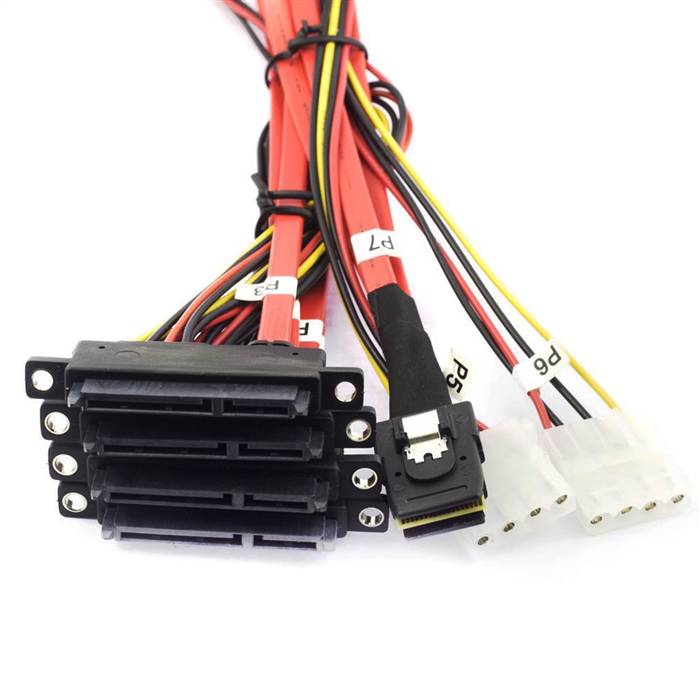

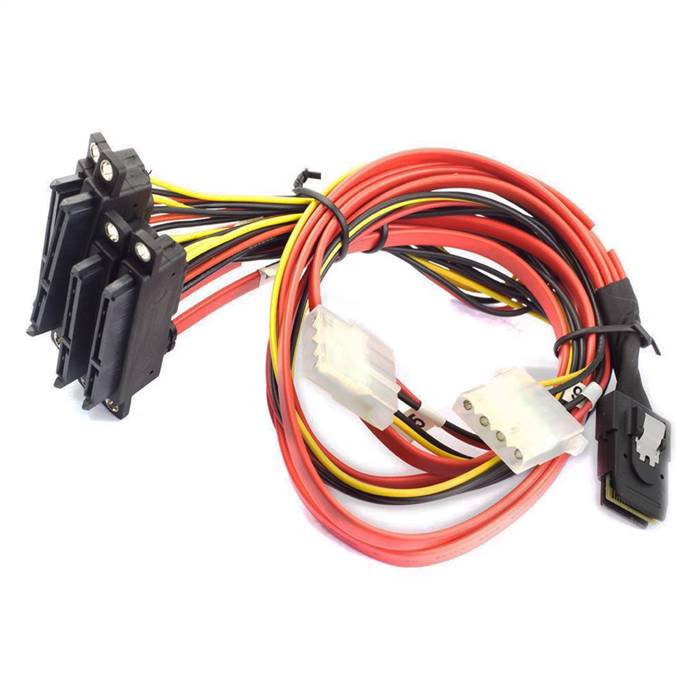

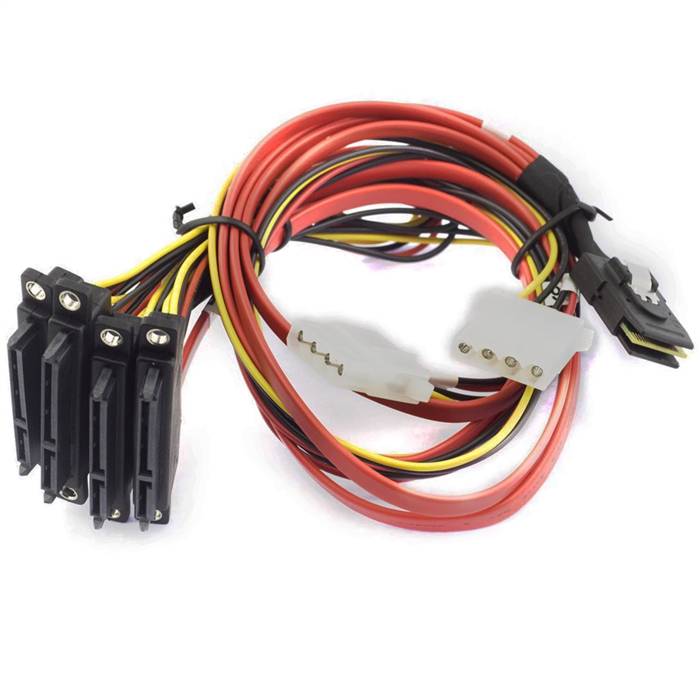

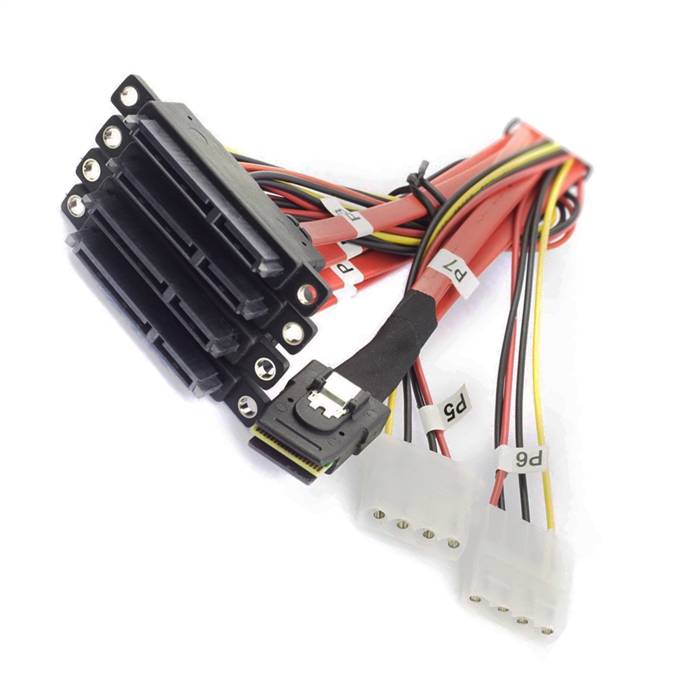

Internal Mini SAS SFF-8087 36P to Four (4) SATA 22P Female Cable with 2x 4-Pin Power

Mini Serial Attached SCSI (miniSAS) Internal Cable Assemblies provide for high speed transmission up to 6 Gbps. It is an ideal interconnect solution for the growing server and storage market. MiniSAS are designed to signifi cantly reduce the cable size for storage systems currently using SAS 4-lane (4x or 4-lanes of data) and are being widely adopted for next-generation designs. The 36-position internal miniSAS cable assemblies are available in custom lengths of up to one meter. They are also available in three standard sideband confi gurations. Customized sideband confi gurations are available upon request.

Features

• Integrates 4 SATA data interfaces and power supply in a 22P connector
• Supports simultaneous data transmission and power supply for hard drives
• Copper core ensures stable 12Gbps high-speed transmission (SAS-4 compatible)
• Reinforced injection molding for durability in server environments

Specifications

• Connector A: 1 x Internal Mini SAS SFF-8087 36P STR (Straight)
• Connector B: 4 x SATA 22P Female, 2 x 4-Pin Power
• Length: 0.5m, 1m
• Withstand voltage: 300V DC/0.1s
• Insulation impedance: 500M? min.
• Conduction impedance: 5? max.
• Testing requirements:  tested for open circuit, short circuit, and intermittent contact
• Working current: 0.5A contact current
• Working voltage: 30V AC rescue voltage
• Low-power contact impedance: 80m? max.
• Insertion force: 55.5N max.
• Operating temperature: -20?~85?
