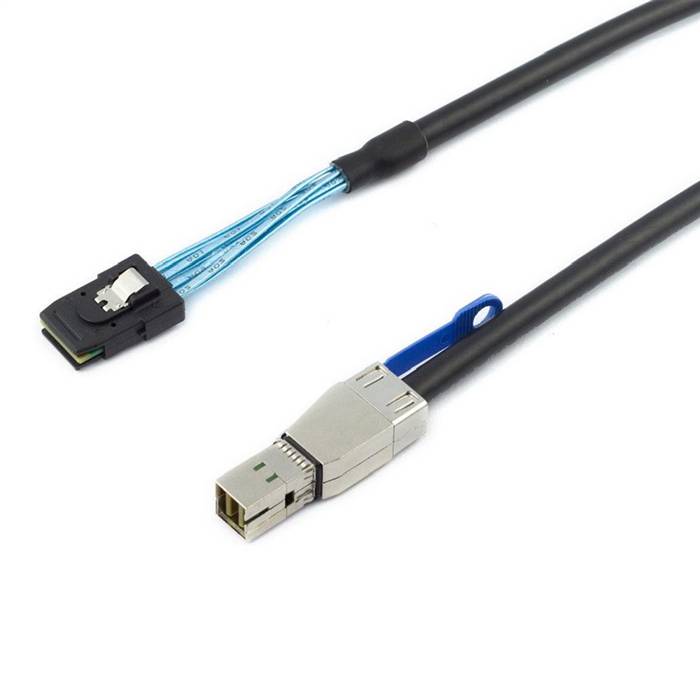

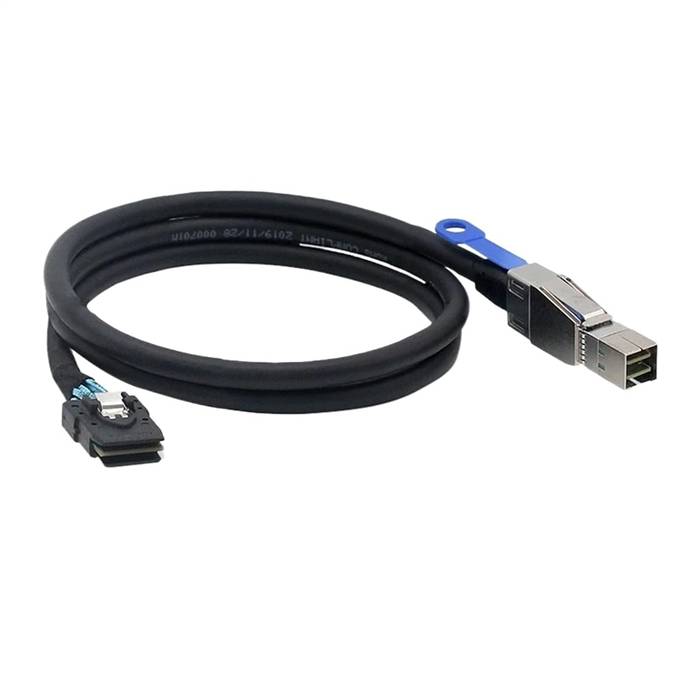

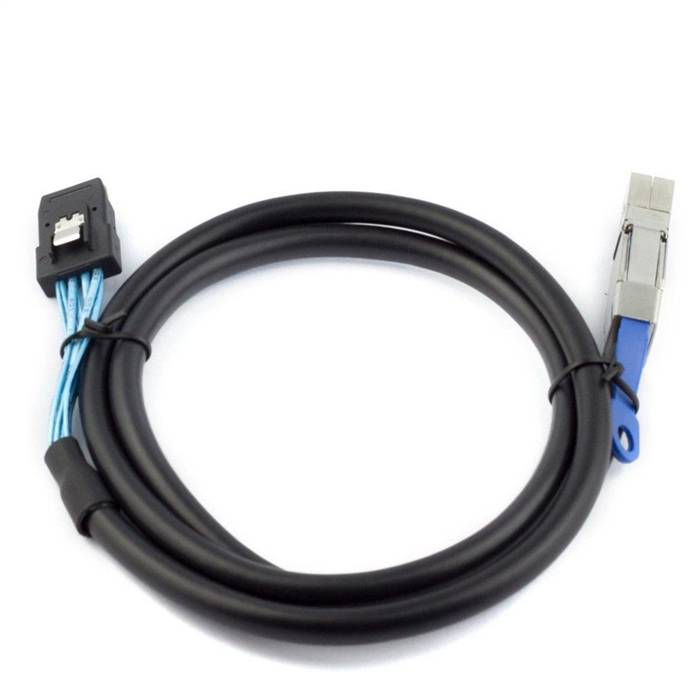

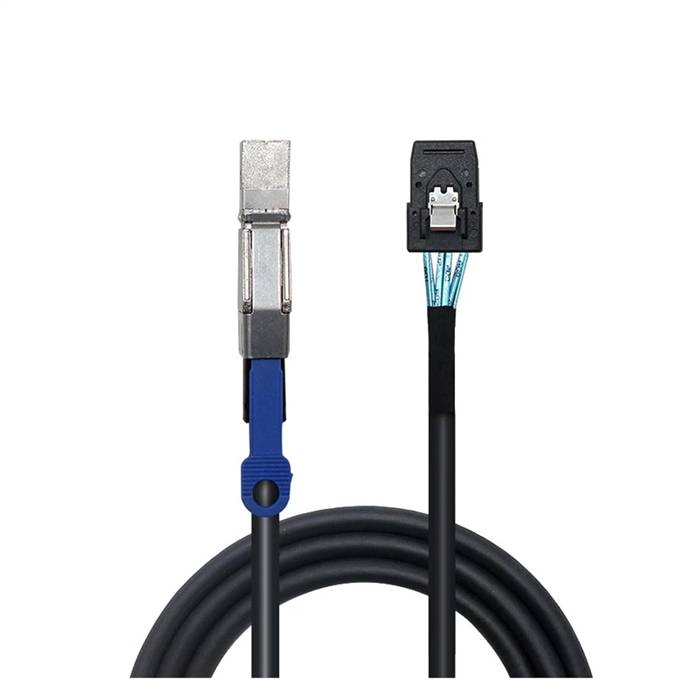

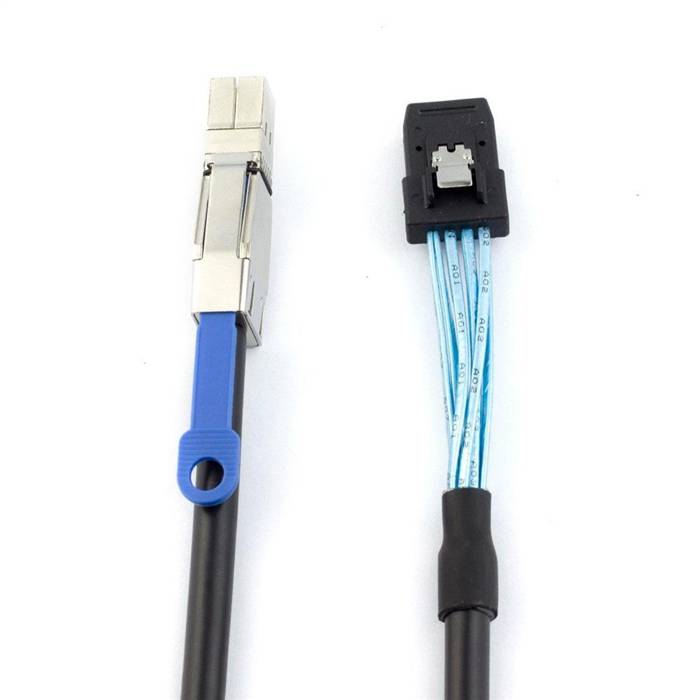

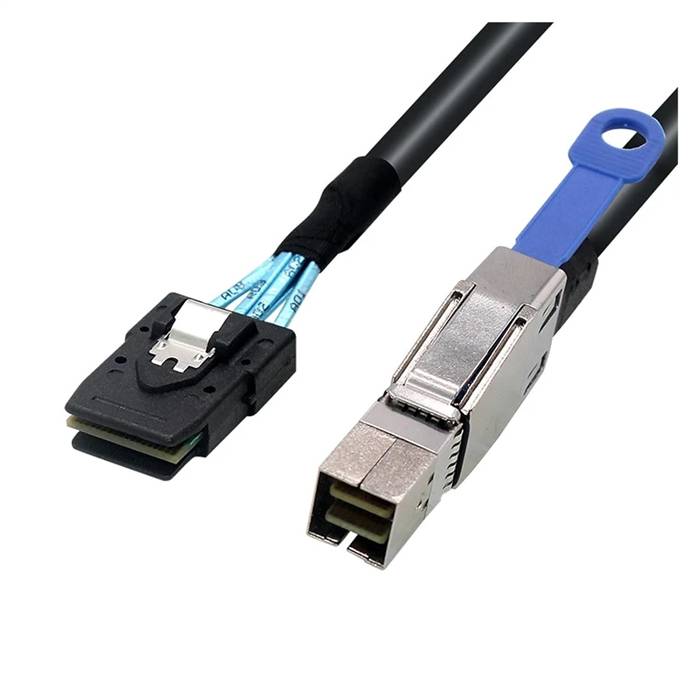

Internal Mini SAS SFF-8087 36P to External HD Mini SAS SFF-8644 Cable, Straight to Straight

Features

• Features a high-density Mini SAS interface in EMI-resistant metal housing, optimized for external shielded connections and stable signal integrity in high-noise environments.
• Effortlessly connect legacy SFF-8087 devices (Mini SAS) to modern SFF-8644 SAS/SATA controllers, extending the lifespan of your HDDs, SSDs, and RAID arrays without compromising speed or reliability.
• Achieve blazing-fast data transfers up to 12 Gbps with this SAS to Mini SAS adapter, ideal for demanding applications like 4K video editing, large-scale data backups, and enterprise storage solutions.
• High-purity oxygen-free copper conductors boost data rates up to 12 Gbps (SAS 3.0), while anti-interference aluminum foil and nylon braiding provide bend-resistant, heat-dissipating, and cross-talk-free performance.
• Low Insertion Loss for High-Frequency Signals, Maintains signal integrity with [email protected] / -11dB@9GHz insertion loss.

Specifications

• Connector A: 1x Internal Mini SAS SFF-8087 36P STR (Straight)
• Connector B: 1x External HD Mini SAS SFF-8644 STR (Straight)
• Length: 0.5~3 meter
• Datarate: 6.0 Gbps
• Wire core: Silver plated copper core
• Wire Gauge: 30AWG
• Impedance: 100 ohms
• Voltage: 30VDC per contact
• Dielectric withstand voltage: 500VDC, no breakdown for 1 minute
• Insulation resistance: Minimum 1000 Mohm
• Combining ability: Maximum 100N
• Release force: Maximum 50N
• Insertion loss: -6Db can reach a maximum of 4.5GHz

Applications

• Data Center
• Servers
• Workstations and desktops
