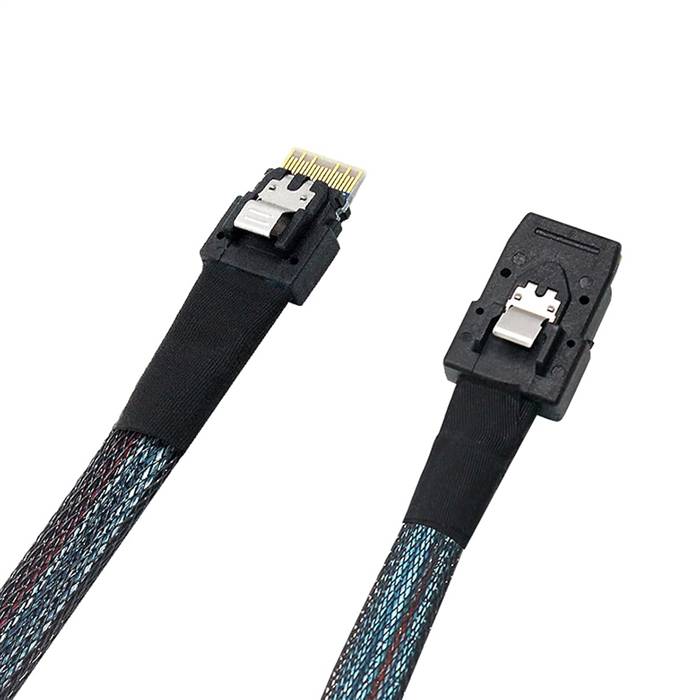

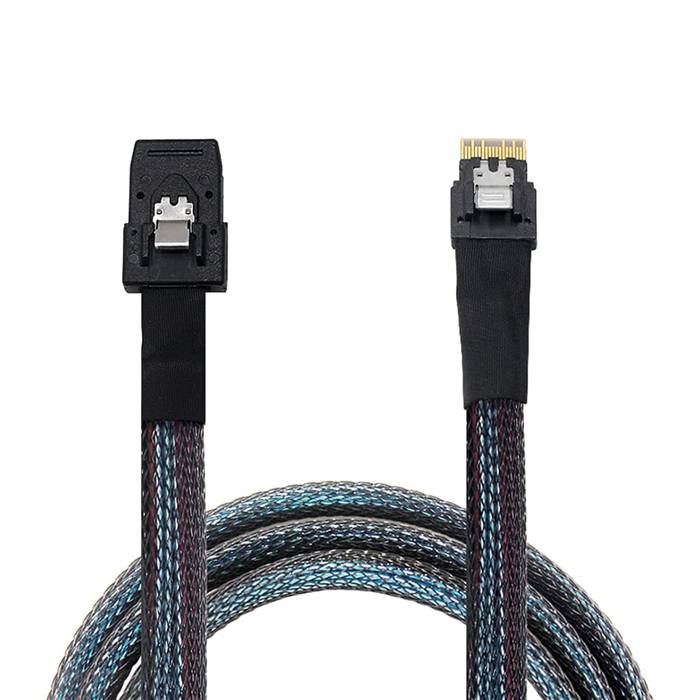

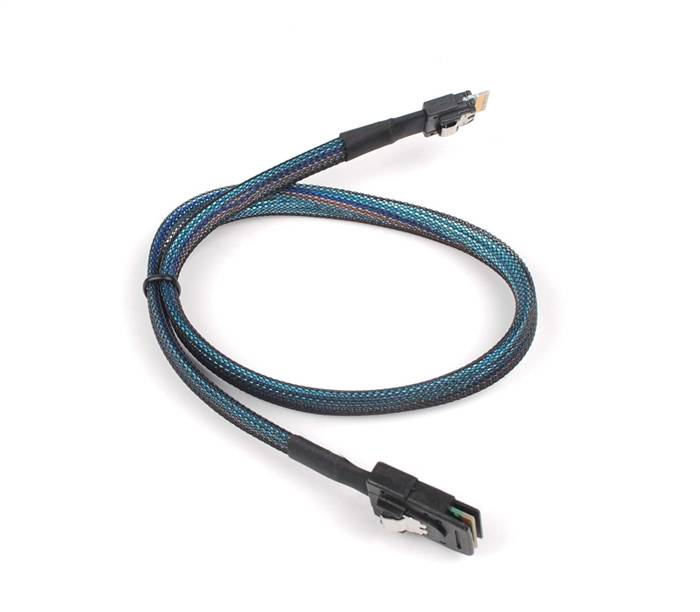

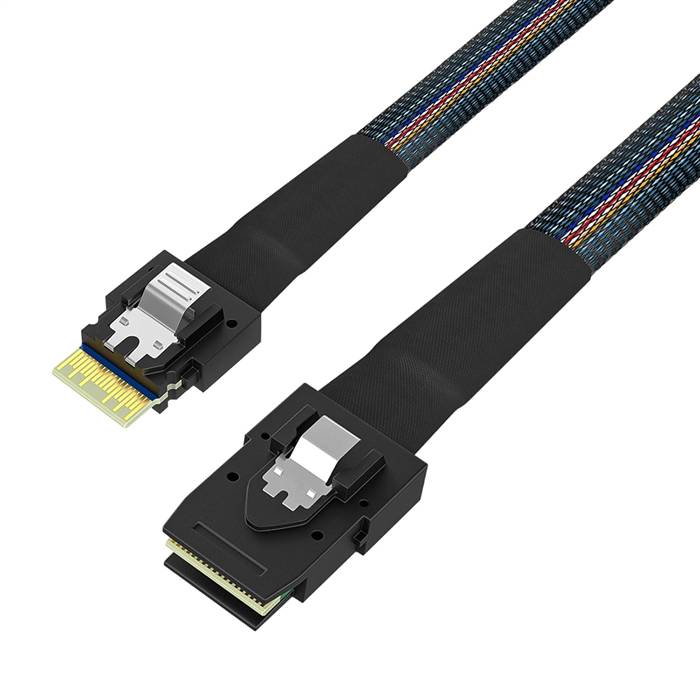

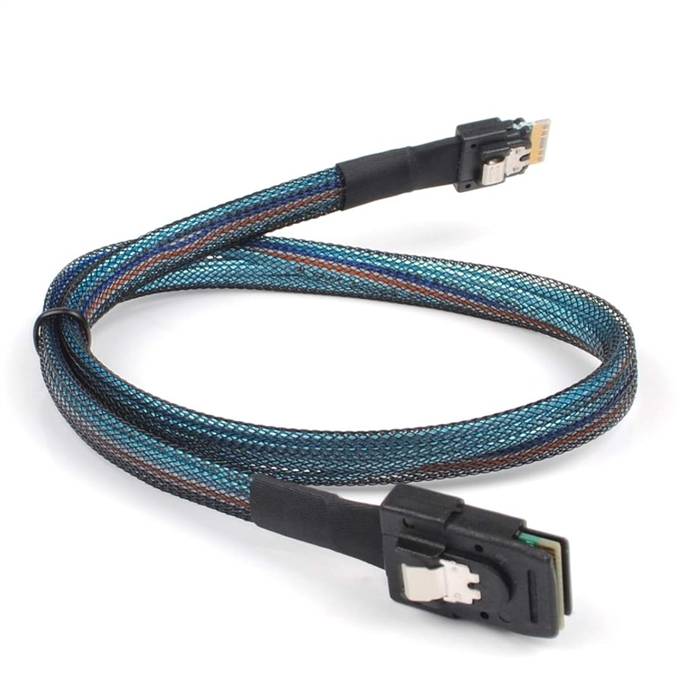

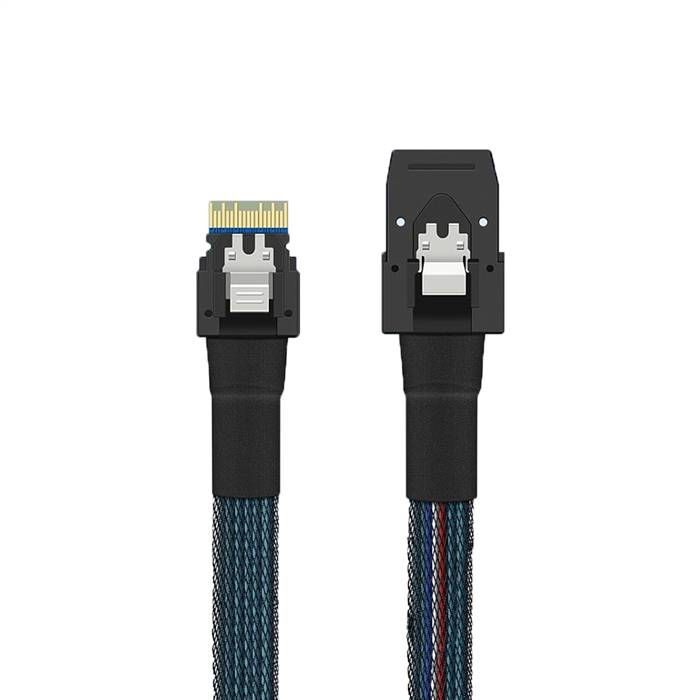

Internal Mini SAS SFF-8087 36P to SlimSAS SFF-8654 4i Cable, Straight to Straight

Features

• Ensure ultra-fast data transfer between hosts and storage arrays, optimized for RAID 0/1/5/10 configurations in enterprise servers and data centers.
• Convert SFF-8654 4i (Mini SAS HD) to SFF-8087 (Mini SAS) with backward compatibility for SATA III/SAS 2.0/3.0 devices, eliminating adapter bottlenecks in multi-drive setups.
• The slim cable profile allows for efficient cable management and routing in tight spaces.Built with high-quality materials to ensure long-lasting performance and reliability.
• Shielded 28AWG copper core + double-braided nylon ensures EMI resistance and 10,000+ plug cycles, certified for 24/7 operation in harsh server environments.
• Hot-swappable and tool-free installation with full-speed backward compatibility (6Gbps/3Gbps), perfect for upgrading legacy SAS infrastructure to high-density NVMe-ready systems.

Specifications

• Connector A: 1 x Internal Mini SAS SFF-8087 36P STR (Straight)
• Connector B: 1 x SlimSAS SFF-8654 4i STR (Straight)
• Length: 0.5~1 meter
• Datarate: 12Gbps
• Wire core: Oxygen free copper core
• Wire Gauge: 30AWG
• Impedance: 100 ohms
• Voltage: 30VDC per contact
• Dielectric withstand voltage: Minimum 300VDC, lasting for 100ms
• Insulation resistance: The minimum value is 10M
• Combining ability: Maximum 55.5N
• Release force: Maximum 49N
