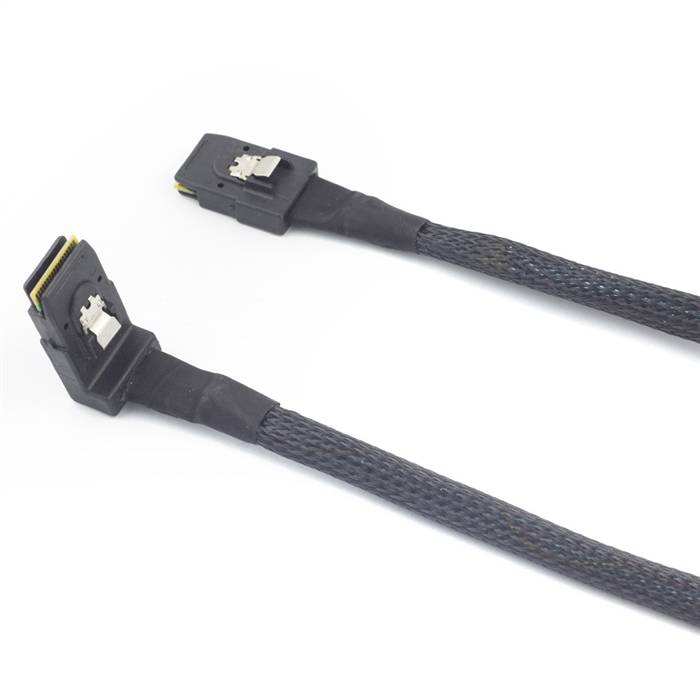

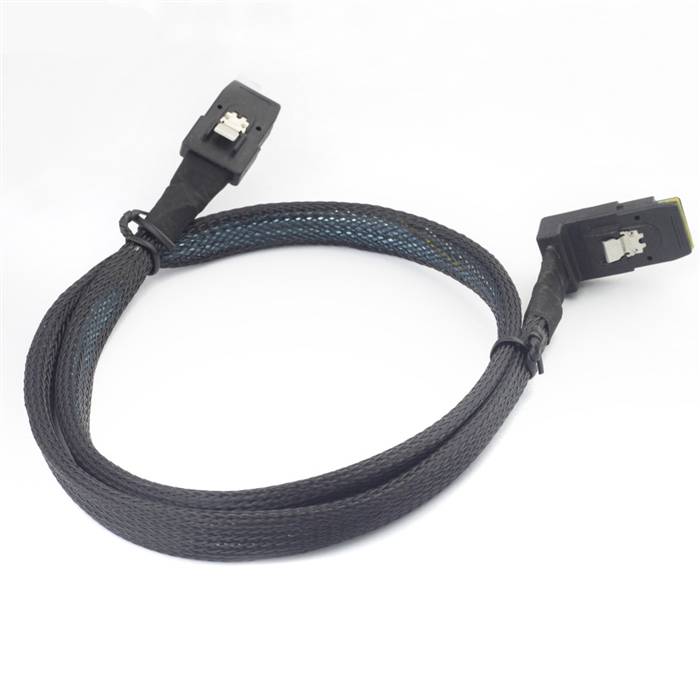

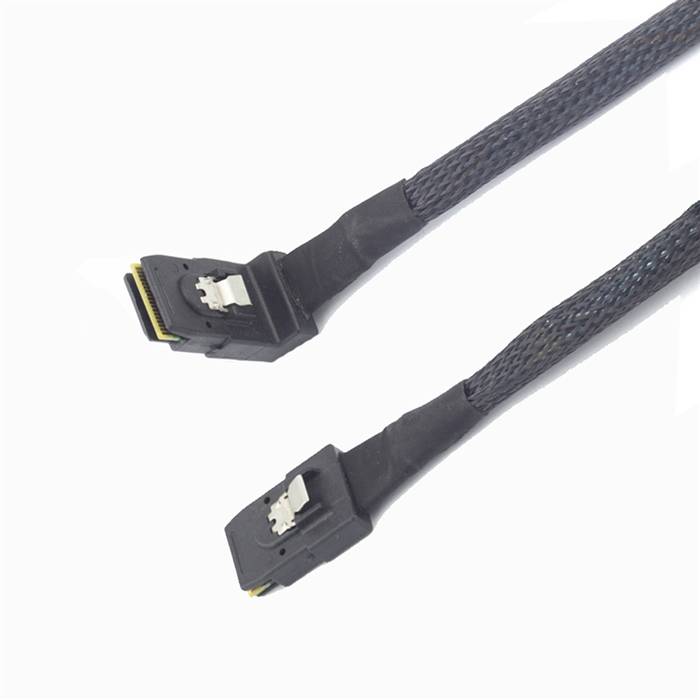

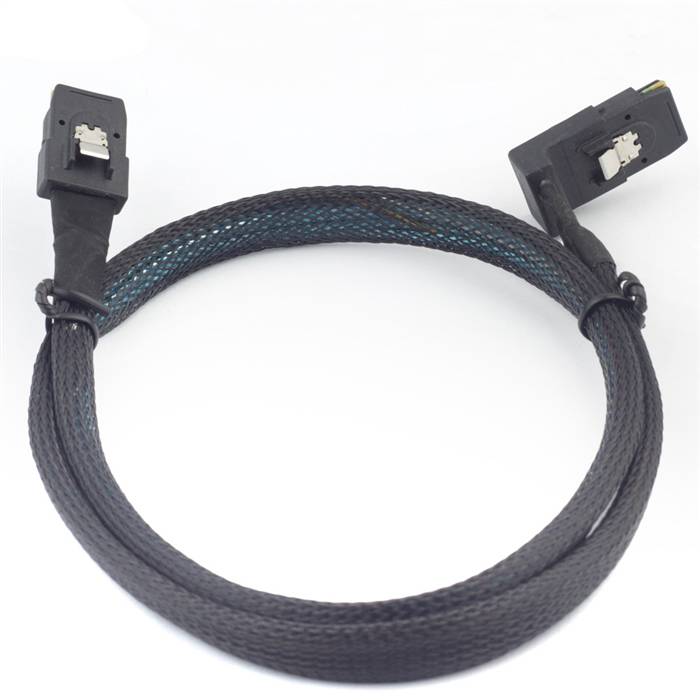

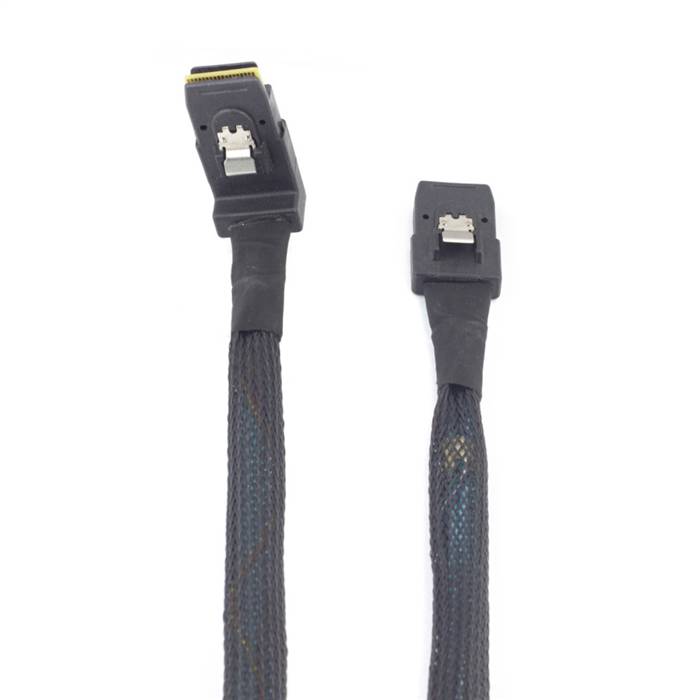

Internal Mini SAS SFF-8087 36P to Internal Mini SAS SFF-8087 36P Cable, Straight to Right Angle

This Internal Mini Serial Attached SCSI (miniSAS) SFF-8087 Cable Assemblies provide for high speed transmission up to 6 Gbps. It is an ideal interconnect solution for the growing server and storage market. MiniSAS are designed to significantly reduce the cable size for storage systems currently using SAS 4-lane (4x or 4-lanes of data) and are being widely adopted for next-generation designs. For internal Mini SAS SFF-8087 cable, we have several angles of connection, including Straight to Straight, Right Angle and Side Exit.

Features

• High-Speed SAS 6Gb/s Connectivity?: Engineered with dual SFF-8087 male connectors to support SAS 6Gb/s and SATA 3.0 protocols, ensuring seamless compatibility with RAID controllers, HBAs, and server backplanes for enterprise storage solutions.
• Premium 100? Shielded Twinax Design?: Built with 100-ohm impedance Twinax copper cables and full EMI shielding, minimizing signal interference and crosstalk for stable data transfers in high-density server environments.
• Both sides of the SFF-8087 cable are wrapped with an industrial-grade braided mesh jacket over individually shielded ribbon cable, a tape strain relief to protect the cable without creating rigidity, and a rugged 36-pin SFF-8087 connector with stainless steel Latch to ensure a secure connection.
• Durable Internal Deployment?: Short-length cable optimized for clean routing within rack servers, NAS enclosures, or workstations, reducing clutter while supporting 6Gbps bandwidth for SSDs/HDDs.
• Enterprise-Grade Reliability?: Tested for 24/7 operation under heavy workloads, featuring gold-plated contacts and reinforced strain relief for long-term durability in data centers and virtualization clusters.

Specifications

• Connector A: 1x SFF-8087 STR (Straight)
• Connector B: 1x SFF-8087 RA (Right Angle)
• Connector Gender: Male-to-Male
• Length: 0.5~1 meter
• Data Rates: 6.0Gbps
• Shape: Round
• Number of Pins: 36
• Frequency: ?6GHz
• Wire AWG: 30AWG

Applications

• Data Center
• Servers
• Workstations and desktops
