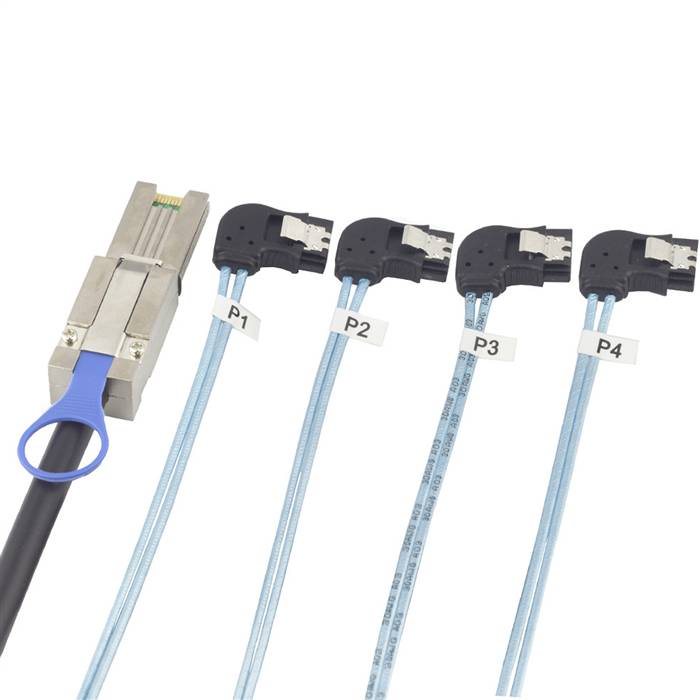

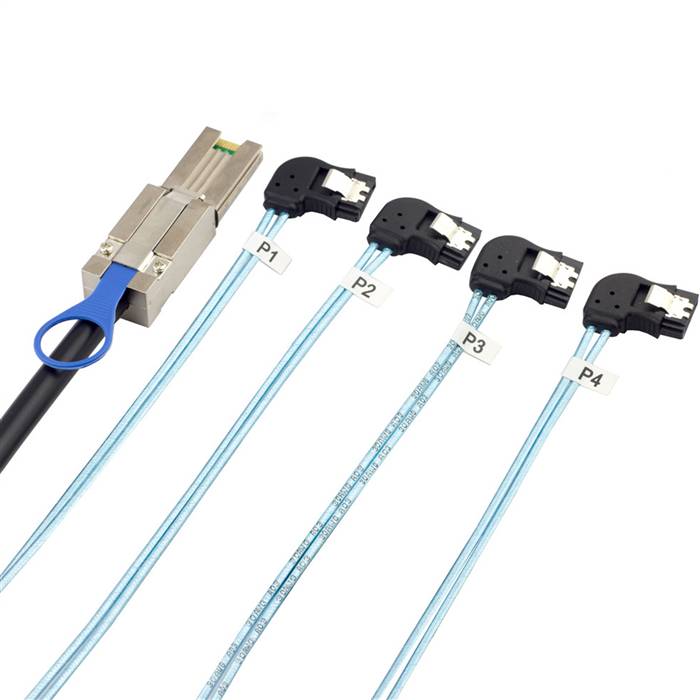

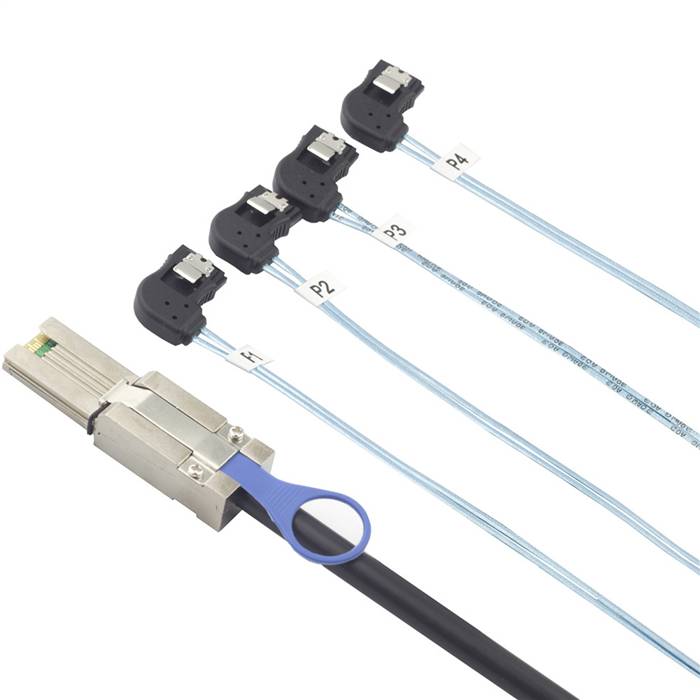

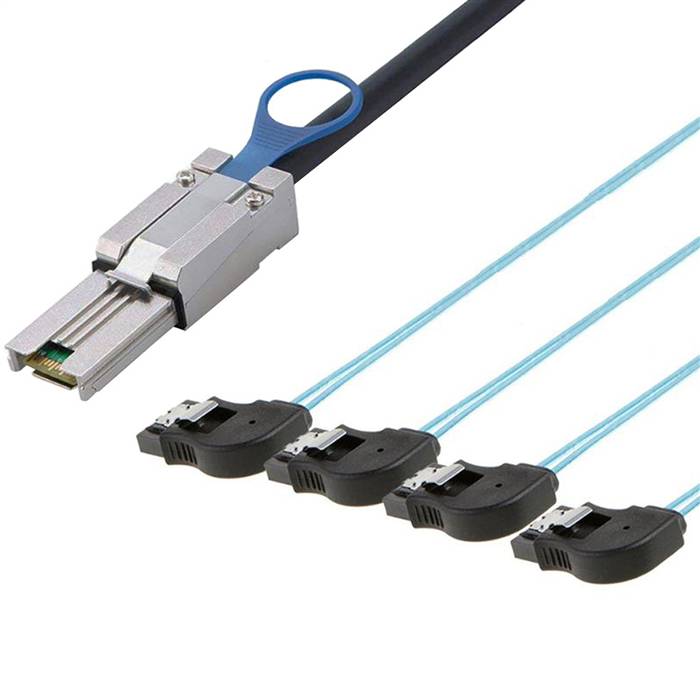

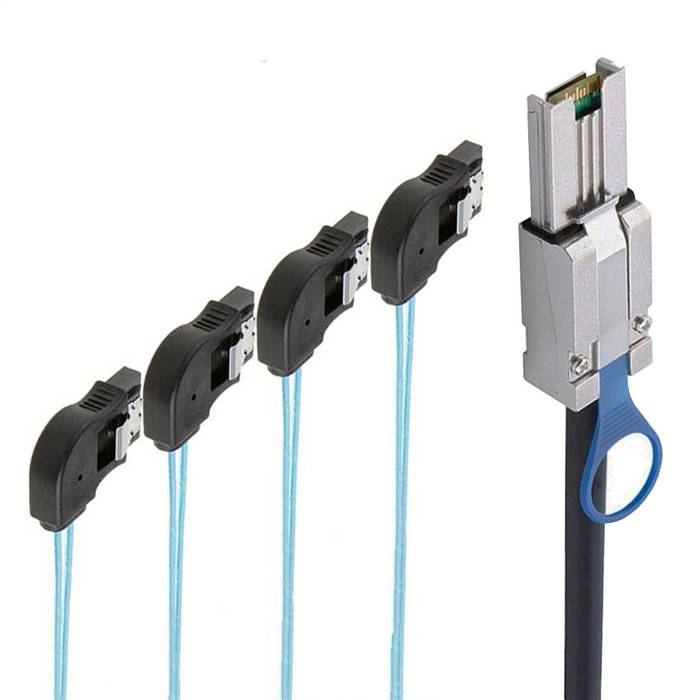

External Mini SAS SFF-8088 26P to 4 Right Bend SATA 7P Cable

The External Mini SAS SFF-8088 26P to 4 Right Bend SATA 7P Cable is a specialized high-density breakout solution designed for space-constrained enterprise storage environments and data center applications. This cable efficiently converts a single External Mini SAS SFF-8088 host interface into four independent right-bend SATA 7-pin connectors, providing optimal cable routing and management in dense server configurations. Engineered with a unique right-bend connector design that combines the benefits of straight and right-angle configurations, this cable ensures minimal obstruction, improved airflow, and enhanced signal integrity while supporting high-speed data transmission between SAS controllers and SATA storage devices.

Features

• Innovative Right-Bend Design: Features four right-bend SATA connectors for optimal cable routing in tight spaces
• High-Density Breakout: Converts one Mini SAS SFF-8088 port to four individual SATA 7-pin ports
• High-Speed Data Transfer: Supports data rates up to 6 Gbps per port (SAS 2.0, SATA 3.0)
• Enhanced Signal Integrity: Precision engineering with optimized impedance matching and reduced crosstalk
• Secure External Connection: Screw-down locking mechanism on SAS connector ensures vibration-resistant mating
• Superior Airflow Management: Low-profile right-bend design minimizes obstruction in high-density systems
• Flexible Protocol Support: Compatible with SAS 2.0 and SATA 3.0 protocols
• Robust Construction: External-grade cable with comprehensive EMI/RFI protection

Specifications

• Product Model: External Mini SAS to 4x Right Bend SATA Cable
• Host Connector: External Mini SAS SFF-8088, 26-Position, Male, with Locking Screws
• Device Connectors: 4x SATA 7-pin, Male, Right Bend (45-degree optimized orientation)
• Data Rate Support: Up to 6 Gbps per port (SAS 2.0, SATA 3.0)
• Supported Protocols: SAS 2.0/1.0, SATA 3.0
• Cable Type: External Grade, Round Cable
• Wire Gauge: 30 AWG
• Impedance: 100? ±10%
• Shielding: Individual pair shielding with overall braid protection
• Cable Length: 0.5m, 1.0m, 2.0m, 3.0m
• Operating Temperature: -10°C to +60°C
• Durability Rating: 3,000 mating cycles (SAS), 5,000 mating cycles (SATA)
• Minimum Bend Radius: 50mm

Applications

• High-Density Server Racks: Ideal for ultra-dense configurations where space optimization is critical
• Storage Array Connections: Perfect for connecting external SAS hosts to SATA drive backplanes
• Blade Server Environments: Suitable for narrow spaces in blade chassis configurations
• External Storage Enclosures: Optimizes cable management in JBOD and storage expansion units
• Data Center Infrastructure: Essential for dense rack configurations where clearance is limited
• OEM Server Manufacturing: Designed for system integrators needing advanced space-optimized solutions
• Test and Development Labs: Useful for prototyping systems with specific form factor requirements
• Broadcast and Media Systems: Ideal for video storage systems requiring compact cable solutions and efficient airflow
