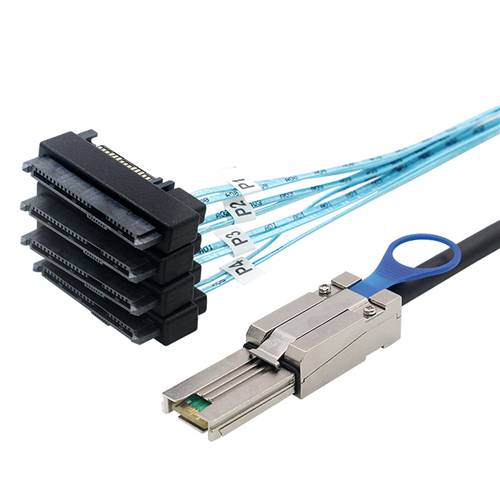

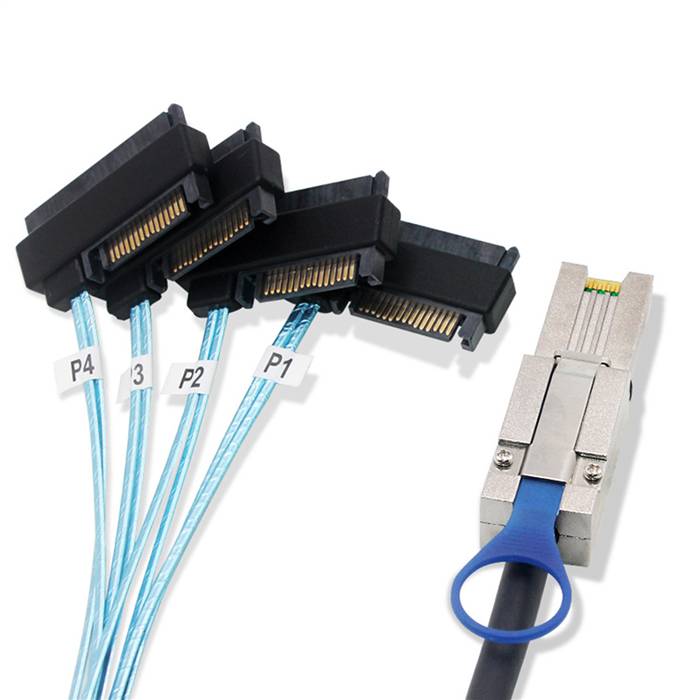

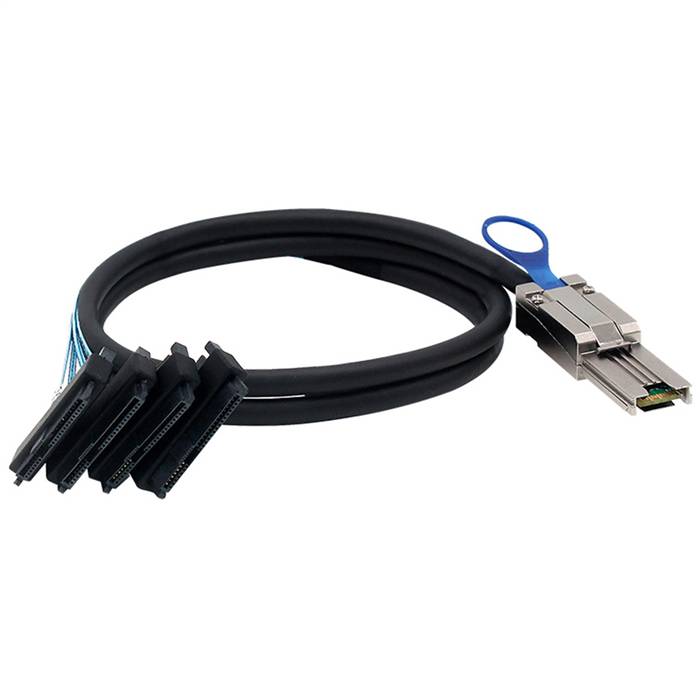

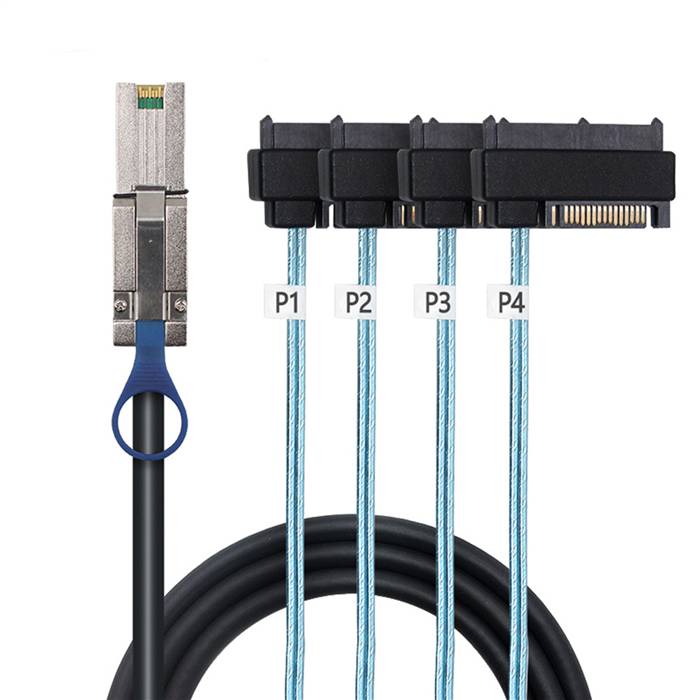

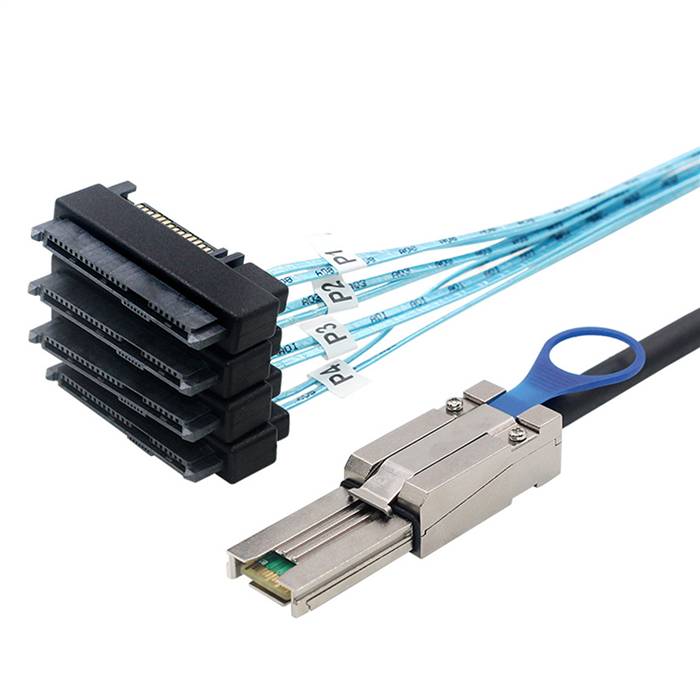

External Mini SAS SFF-8088 26P to 4 SAS SFF-8482 All-in-one Cable

The External Mini SAS SFF-8088 26P to 4 SAS SFF-8482 All-in-one Cable is a comprehensive breakout solution designed for enterprise storage systems requiring both data and power connectivity. This integrated cable converts a single External Mini SAS SFF-8088 host interface into four complete SAS SFF-8482 interfaces, each incorporating both data and power connections in a unified solution. Engineered for high-performance external storage applications, this all-in-one cable simplifies connectivity by eliminating the need for separate power cables, providing a clean and efficient solution for connecting SAS hosts to multiple SAS drives. The cable maintains excellent signal integrity while supporting high-speed data transmission and reliable power delivery, making it ideal for data centers, external storage expansions, and enterprise backup systems.

Features

• Integrated Power and Data: Combines 4x SAS SFF-8482 connectors with built-in power connections
• All-in-One Design: Eliminates need for separate power cables with integrated power delivery
• High-Density Breakout: Converts one Mini SAS SFF-8088 port to four complete SAS SFF-8482 interfaces
• High-Speed Data Transfer: Supports data rates up to 12 Gbps (SAS 3.0)
• Enhanced Signal Integrity: Precision engineering with optimized impedance matching and reduced crosstalk
• Secure External Connection: Screw-down locking mechanism on SAS connector ensures vibration-resistant mating
• Robust Construction: External-grade cable with comprehensive EMI/RFI protection
• Flexible Protocol Support: Compatible with SAS 3.0/2.0 and SATA protocols

Specifications

• Product Model: External Mini SAS to 4x SAS SFF-8482 All-in-One Cable
• Host Connector: External Mini SAS SFF-8088, 26-Position, Male, with Locking Screws
• Device Connectors: 4x SAS SFF-8482, 29-Position with Integrated Power
• Data Rate Support: Up to 12 Gbps per port (SAS 3.0)
• Supported Protocols: SAS 3.0/2.0, SATA 3.0
• Power Rating: Integrated 4-pin power connector per SAS port
• Cable Type: External Grade, Round Cable
• Wire Gauge: 28-30 AWG
• Impedance: 100? ±10%
• Shielding: Individual pair shielding with overall braid protection
• Cable Length: 0.5m, 1.0m, 2.0m, 3.0m
• Operating Temperature: -10°C to +60°C
• Durability Rating: 3,000 mating cycles (SAS), 5,000 mating cycles (SFF-8482)
• Minimum Bend Radius: 50mm

Applications

• External Storage Arrays: Ideal for connecting SAS hosts to external drive enclosures with integrated power
• Data Center Infrastructure: Perfect for storage expansions requiring combined data and power connectivity
• Enterprise Backup Systems: Suitable for backup servers connecting to multiple SAS drives
• RAID Configurations: Excellent for RAID systems requiring reliable power and data delivery
• Storage Area Networks: Ideal for SAN environments needing integrated connectivity solutions
• Server Upgrade Projects: Enables integration of new servers with existing SAS drive infrastructure
• OEM Storage Solutions: Designed for system integrators needing all-in-one connectivity
• Disaster Recovery Systems: Facilitates data replication between storage systems with reliable power delivery
