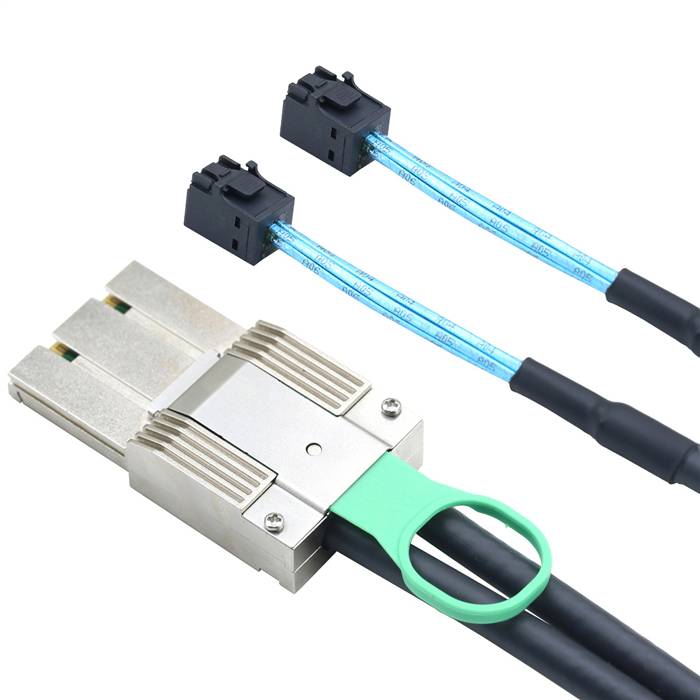

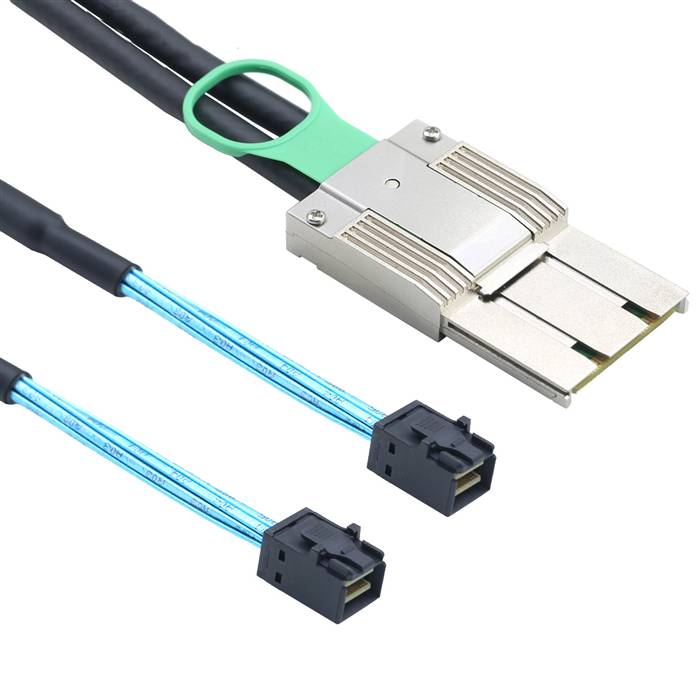

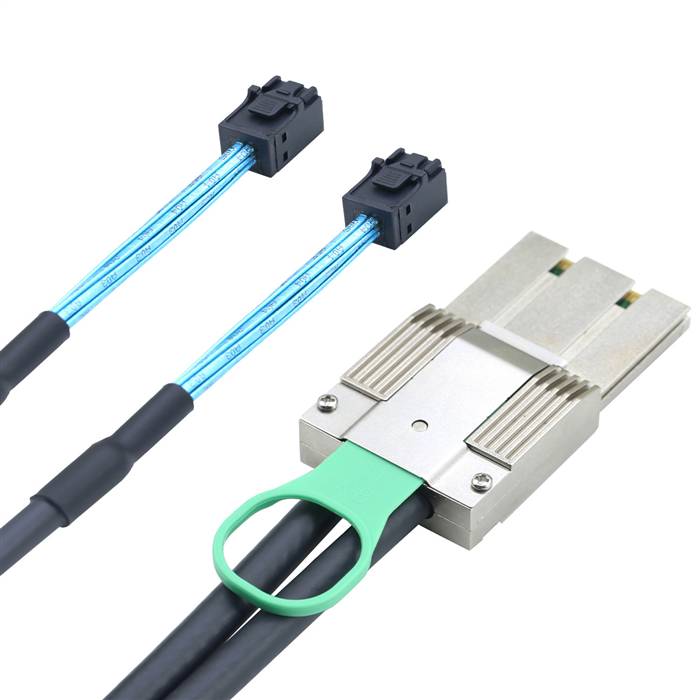

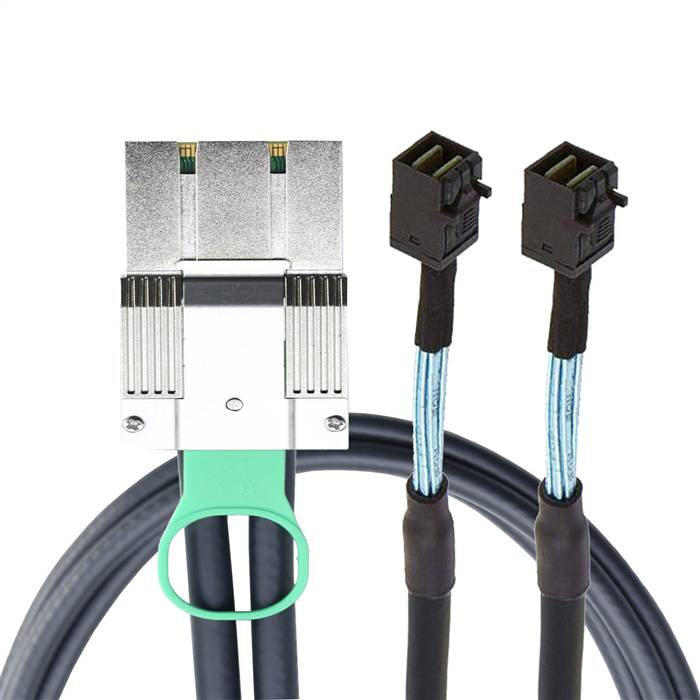

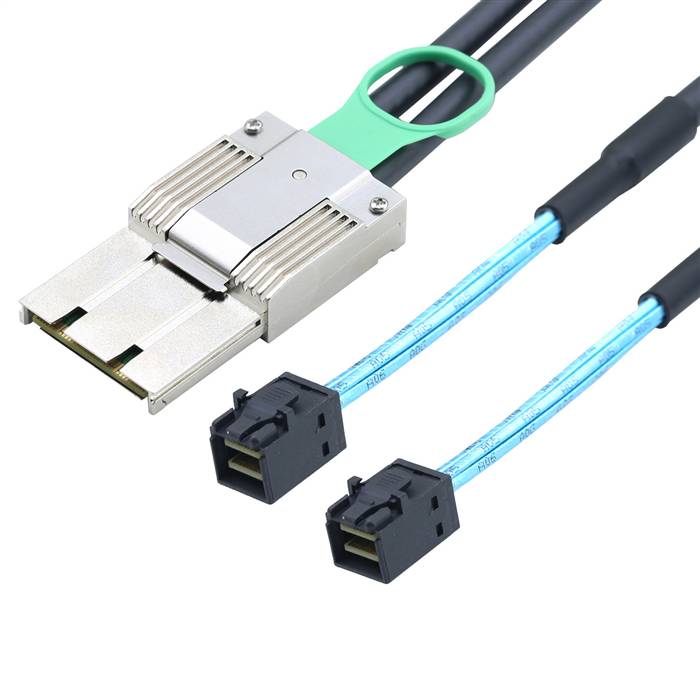

External Mini SAS SFF-8088 8X I/O 68P to 2 Internal HD Mini SAS SFF-8643 4i Cable

The External Mini SAS SFF-8088 8X I/O 68P to 2 Internal HD Mini SAS SFF-8643 4i Cable is a high-performance hybrid conversion cable designed for enterprise storage systems requiring interface conversion between external and internal connectivity. This specialized cable converts a single high-density external SFF-8088 8X (68-position) host interface into two internal HD Mini SAS SFF-8643 4i interfaces, providing seamless connectivity between external storage controllers and internal storage devices. Engineered with precision signal integrity features, this solution supports high-speed data transmission while maintaining reliable performance across different SAS environments. The robust construction ensures optimal performance in demanding data center applications, making it ideal for connecting external storage systems to internal backplanes or expanding storage infrastructure with mixed interface requirements.

Features

• Hybrid Interface Conversion: Converts external 68-position 8X Mini SAS to two internal HD Mini SAS 4i interfaces
• High-Speed Data Transfer: Supports data rates up to 24 Gbps (SAS 4.0)
• Enhanced Signal Integrity: Precision engineering with optimized impedance matching and reduced crosstalk
• Secure Connection: Screw-down locking mechanism on external connector ensures vibration-resistant mating
• Robust Construction: High-quality materials with comprehensive EMI/RFI protection
• Flexible Protocol Support: Compatible with SAS 4.0/3.0 and SATA protocols
• Space-Efficient Design: Slim internal connectors enable high-density server deployments

Specifications

• Product Model: External Mini SAS 8X to Dual Internal HD Mini SAS Cable
• Host Connector: External Mini SAS SFF-8088 8X, 68-Position, Male, with Locking Screws
• Device Connectors: 2x Internal HD Mini SAS SFF-8643 4i, 36-Position, Male
• Data Rate Support: Up to 24 Gbps (SAS 4.0), 16 GT/s (PCIe 4.0)
• Supported Protocols: SAS 4.0/3.0, SATA 3.0
• Cable Type: Hybrid External/Internal Grade
• Wire Gauge: 30 AWG
• Impedance: 100? ±10%
• Shielding: Individual pair shielding with overall braid protection
• Cable Length: 0.5m, 1.0m, 2.0m
• Operating Temperature: -10°C to +60°C
• Durability Rating: 3,000 mating cycles (external), 5,000 mating cycles (internal)
• Minimum Bend Radius: 40mm

Applications

• Storage System Integration: Ideal for connecting external storage controllers to internal drive backplanes
• Data Center Infrastructure: Suitable for mixed environment storage expansions requiring external-to-internal conversion
• Enterprise Storage Arrays: Perfect for large-scale storage systems needing flexible interface options
• Server Upgrade Projects: Enables integration of external storage systems with internal server configurations
• OEM Storage Solutions: Designed for system integrators needing hybrid interface connectivity
• Disaster Recovery Systems: Facilitates data replication between external and internal storage systems
• Cloud Infrastructure: Ideal for cloud storage platforms requiring flexible connectivity solutions
• Test and Development: Useful for laboratory environments requiring interface conversion between external and internal systems
