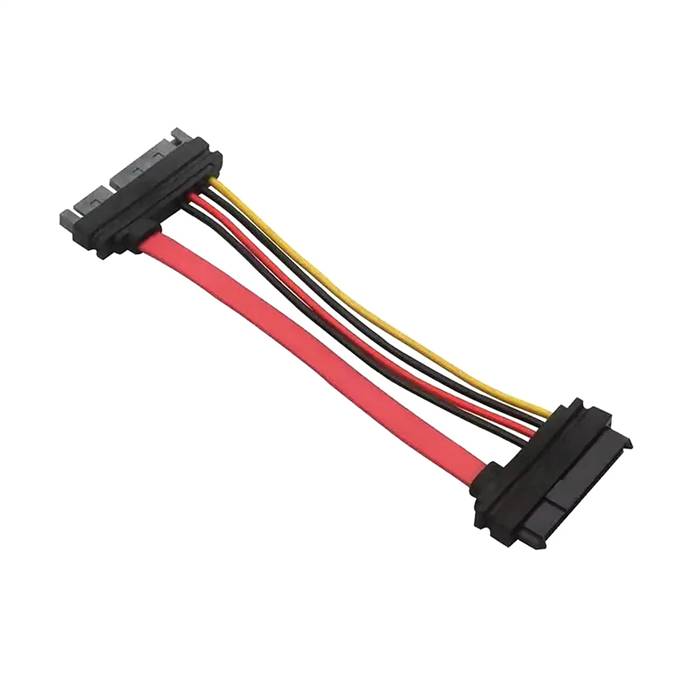

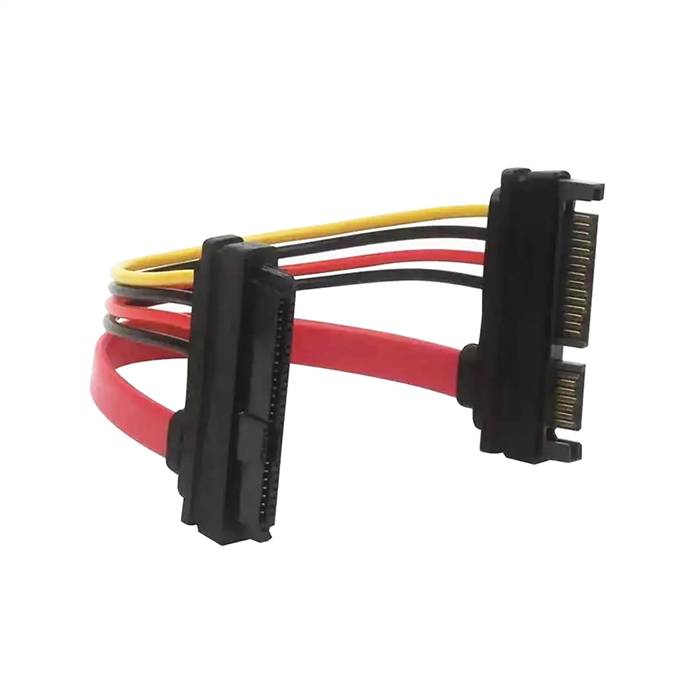

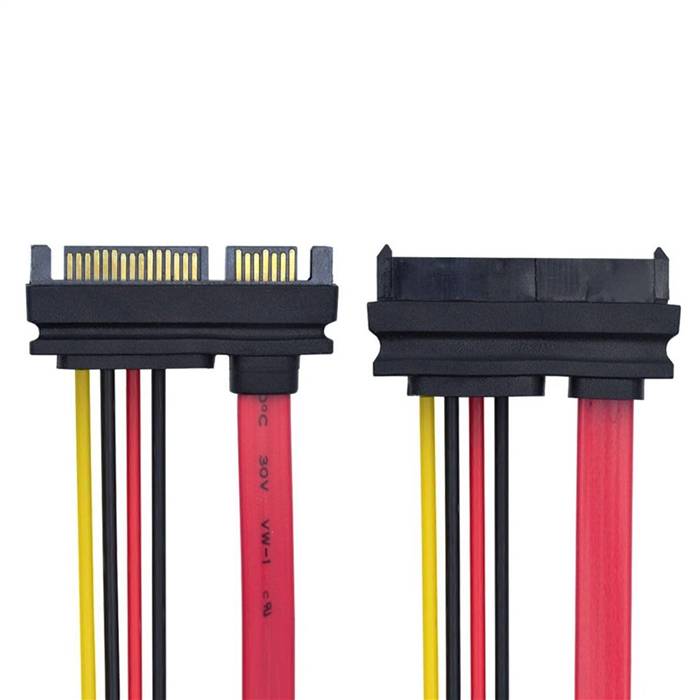

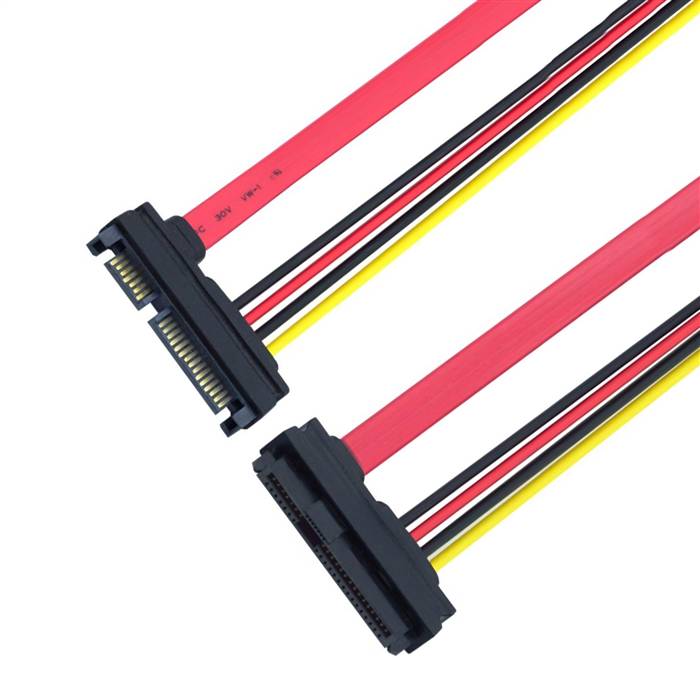

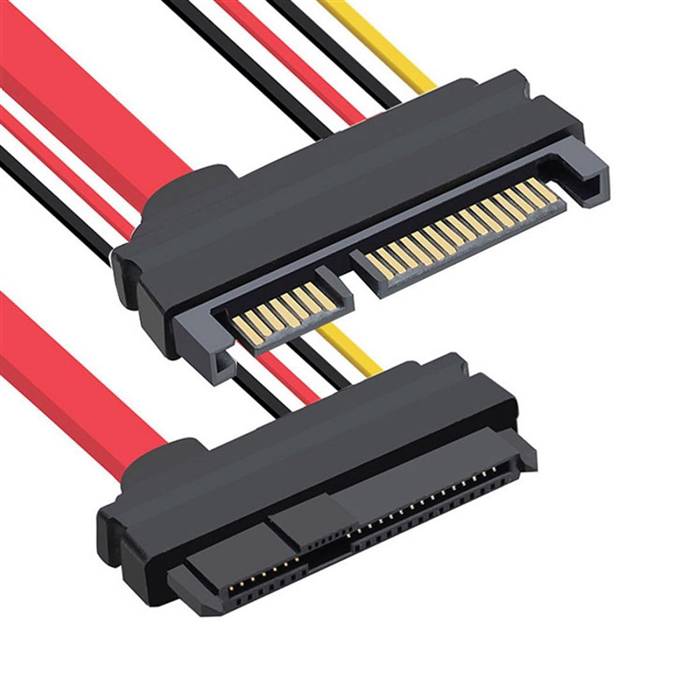

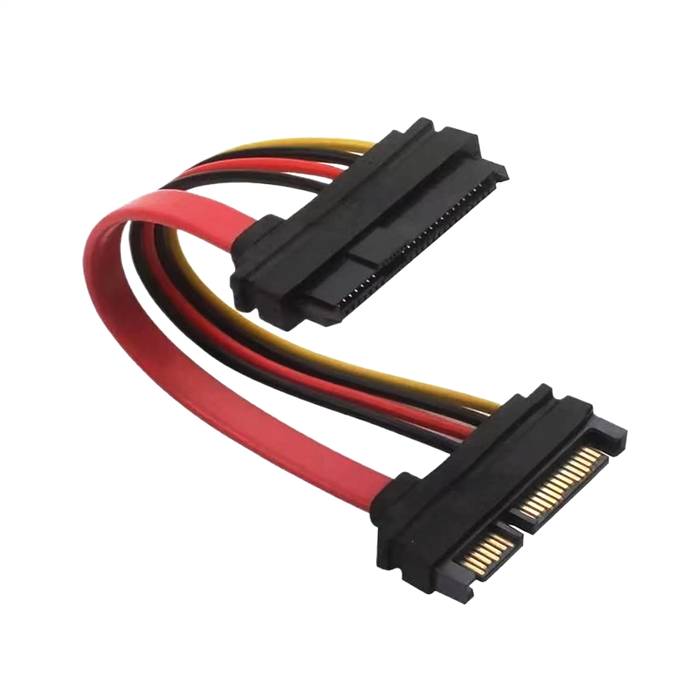

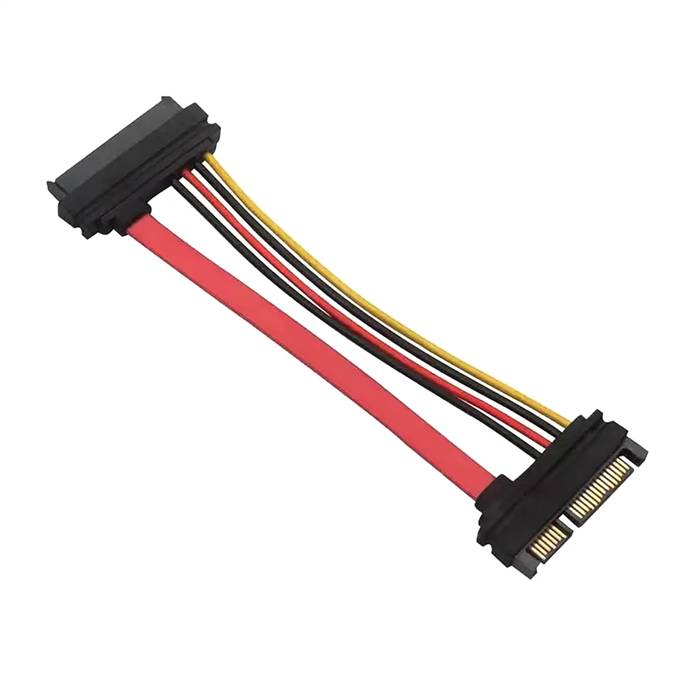

SAS SFF-8482 29P to SATA 22P (7+15) Male Cable

The SAS SFF-8482 29P to SATA 22P (7+15) Male Cable is a precision-engineered interface conversion solution designed to connect SAS (Serial Attached SCSI) host interfaces to standard SATA storage devices. This cable features a SAS SFF-8482 29-position female connector on one end and a standard SATA 22-pin (7+15) male connector on the other end, enabling seamless connectivity between SAS controllers and SATA drives while integrating both data and power transmission into a single cable assembly. Engineered with precision signal preservation, this cable ensures reliable data transfer and power delivery while maintaining compatibility between enterprise-level SAS infrastructure and consumer-grade SATA storage devices, making it ideal for mixed storage environments, server configurations, and enterprise storage applications.

Features

• Interface Conversion: Converts SAS SFF-8482 29-pin female to standard SATA 22-pin (7+15) male interface
• Complete Integration: Combines both data and power transmission in a single cable solution
• High-Speed Performance: Supports SAS 3.0 specifications with up to 12 Gbps data transfer rates
• Enhanced Compatibility: Enables connection between SAS host systems and SATA storage devices
• Secure Connection: Precision-engineered connectors ensure reliable mating and stable operation
• Durable Construction: Quality materials ensure long-term reliability and repeated use
• Plug-and-Play Operation: Requires no additional drivers or software for installation
• Hot-Swap Support: Designed to support hot-swap capabilities for enterprise environments

Specifications

• Host Connector: SAS SFF-8482 29-position Female
• Device Connector: SATA 22-pin (7+15) Male
• Data Rate Support: Up to 12 Gbps (SAS 3.0 compatible), 6 Gbps (SATA 3.0 compatible)
• Supported Protocols: SAS 3.0/2.0, SATA 3.0/2.0/1.0
• Power Delivery: Integrated power delivery through SATA power pins (12V/5V/3.3V)
• Cable Length: Typically 0.1m, 0.3m, 0.5m (standard options)
• Operating Temperature: -20°C to +85°C
• Durability Rating: 2,500+ mating cycles
• Wire Gauge: 28-30 AWG (data), 18-20 AWG (power)
• Shielding: Individual pair shielding with overall braid protection
• Contact Plating: Gold-plated contacts (15?" thickness)
• Impedance: 100? ±10% (characteristic impedance)
• Dielectric Withstanding Voltage: 500V AC

Applications

• Storage Array Expansion: Connecting SATA drives to SAS storage controllers in enterprise environments
• Server Integration: Enabling use of SATA drives in SAS-based server systems
• Data Center Infrastructure: Facilitating mixed storage configurations in hyperscale environments
• Test Benches: Temporary connectivity for testing and diagnostics of SATA devices with SAS controllers
• Data Recovery: Facilitating drive connections for data retrieval operations in mixed interface environments
• Backup Solutions: Creating flexible backup systems utilizing SATA drives with SAS infrastructure
• Technical Support: Field service applications requiring interface adaptation between SAS and SATA
• Educational Labs: Teaching storage technology and interface compatibility concepts
