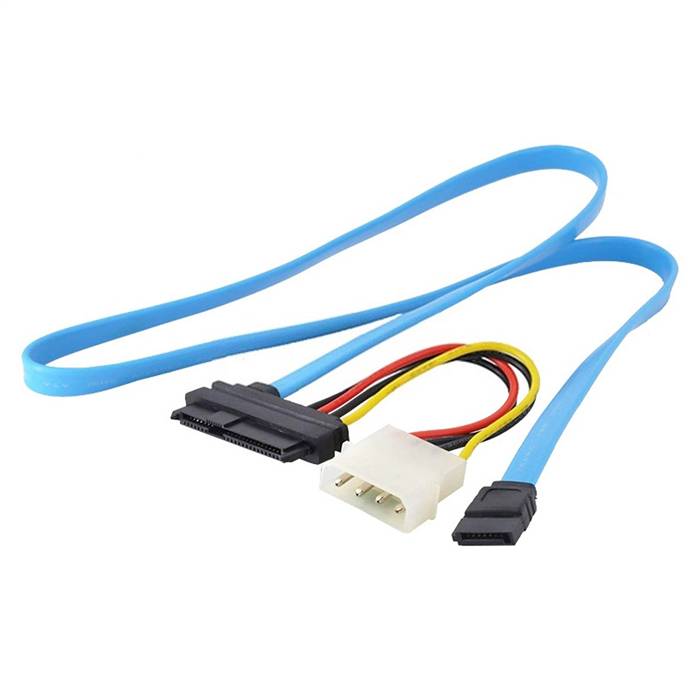

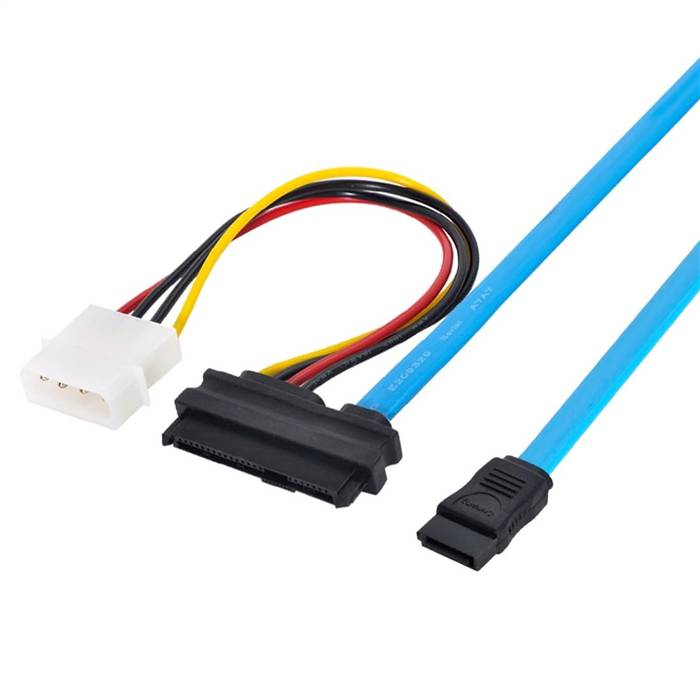

SAS SFF-8482 29P to SATA 7P & Big 4Pin Power Cable

The SAS SFF-8482 29P to SATA 7P & Big 4Pin Power Cable is a specialized interface conversion and power delivery solution designed to connect SAS (Serial Attached SCSI) host interfaces to standard SATA storage devices while providing dedicated power through a separate 4-pin peripheral connector. This cable features a SAS SFF-8482 29-position female connector on one end, a standard SATA 7-pin data connector on the other end, and an integrated Big 4-pin female power connector. Engineered for reliability and performance, this cable enables seamless connectivity between SAS controllers and SATA drives while ensuring stable power delivery, making it ideal for enterprise environments, server configurations, and storage applications where separate power management is required.

Features

• Interface Conversion: Converts SAS SFF-8482 29-pin female to standard SATA 7-pin data interface
• Dedicated Power Delivery: Integrated Big 4-pin female power connector provides stable power supply
• High-Speed Performance: Supports SAS 3.0 specifications with up to 12 Gbps data transfer rates
• Enhanced Compatibility: Enables connection between SAS host systems and SATA storage devices
• Secure Connection: Precision-engineered connectors ensure reliable mating and stable operation
• Robust Power Management: Separate power connector ensures adequate power delivery for various drives
• Durable Construction: Quality materials ensure long-term reliability and repeated use
• Plug-and-Play Operation: Requires no additional drivers or software for installation

Specifications

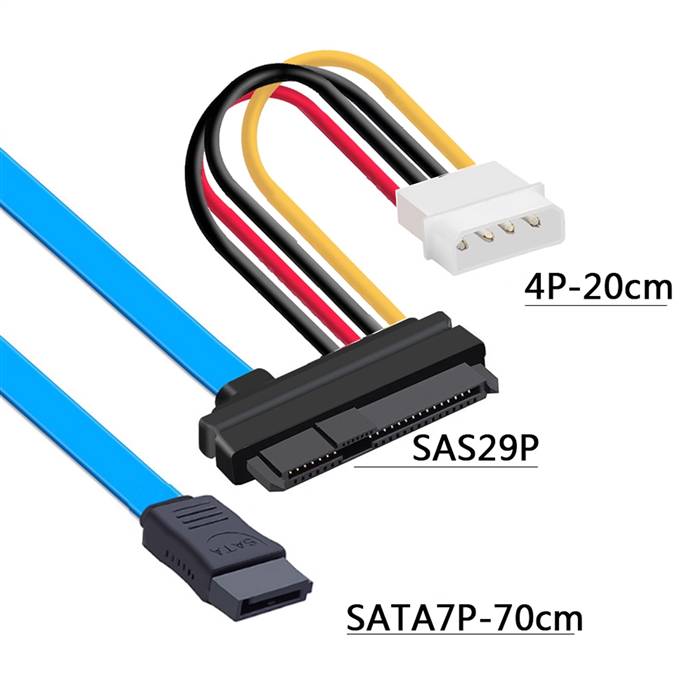

• Host Connector: SAS SFF-8482 29-position Female
• Data Connector: SATA 7-pin Male
• Power Connector: Big 4-pin Female (Molex)
• Data Rate Support: Up to 12 Gbps (SAS 3.0 compatible), 6 Gbps (SATA 3.0 compatible)
• Supported Protocols: SAS 3.0/2.0, SATA 3.0/2.0
• Power Delivery: Supports standard peripheral power specifications (12V/5V)
• Cable Length:  0.7m
• Operating Temperature: -20°C to +85°C
• Durability Rating: 2,500+ mating cycles (SAS and SATA connectors)
• Wire Gauge: 28-30 AWG (data), 18-20 AWG (power)
• Shielding: Individual pair shielding with overall braid protection
• Contact Plating: Gold-plated contacts (data connectors)
• Impedance: 100? ±10% (characteristic impedance)

Applications

• Storage Array Expansion: Connecting SATA drives to SAS storage controllers in enterprise environments
• Server Integration: Enabling use of SATA drives in SAS-based server systems with separate power management
• Data Center Infrastructure: Facilitating mixed storage configurations in hyperscale environments
• Test Benches: Temporary connectivity for testing and diagnostics of SATA devices with SAS controllers
• Data Recovery: Facilitating drive connections for data retrieval operations in mixed interface environments
• Backup Solutions: Creating flexible backup systems utilizing SATA drives with SAS infrastructure
• Technical Support: Field service applications requiring interface adaptation between SAS and SATA
• Educational Labs: Teaching storage technology and interface compatibility concepts
