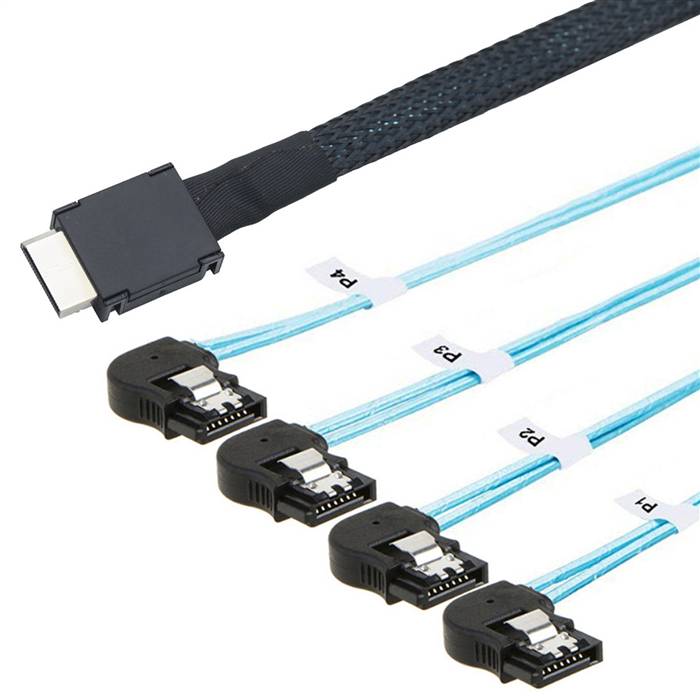

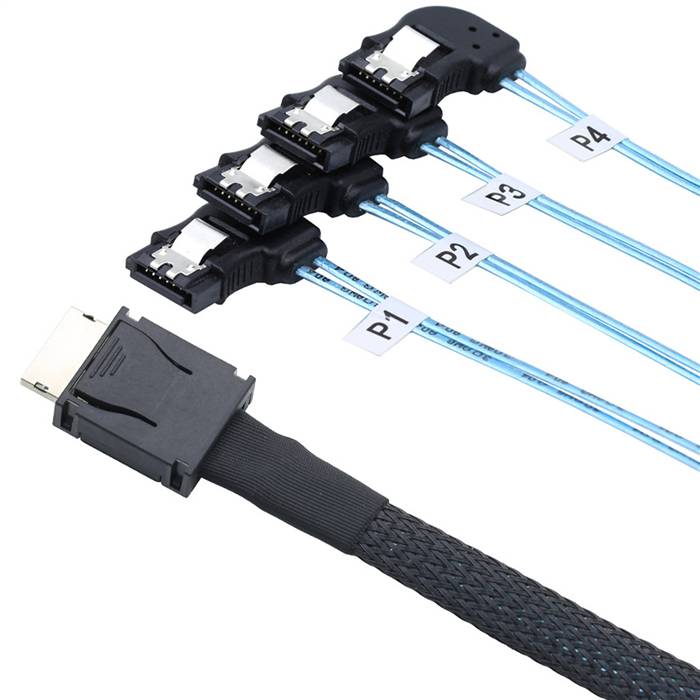

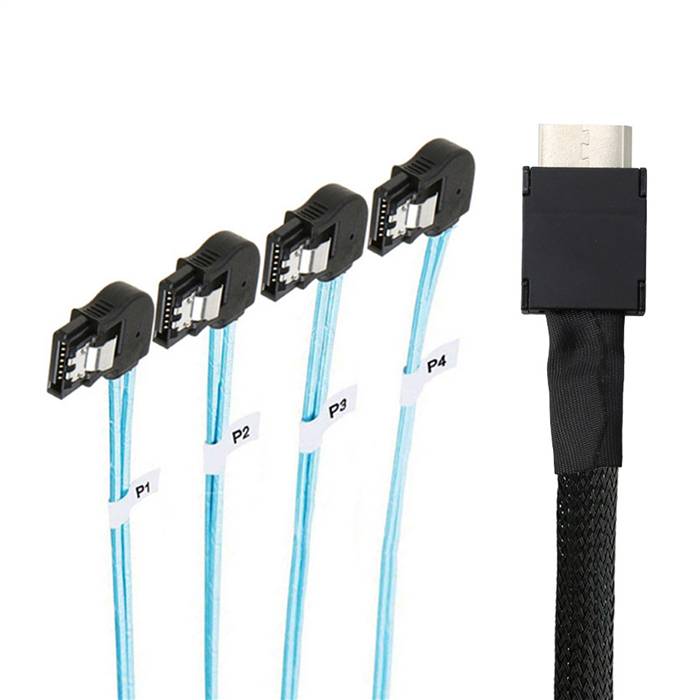

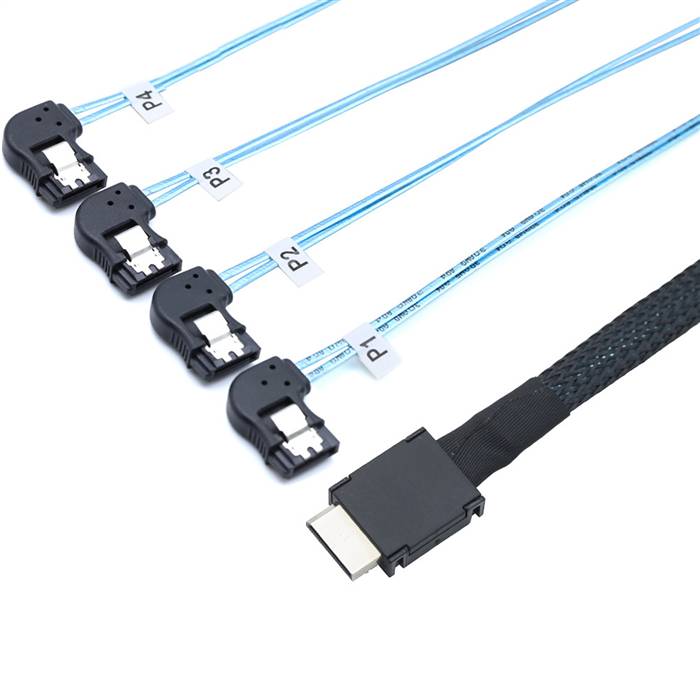

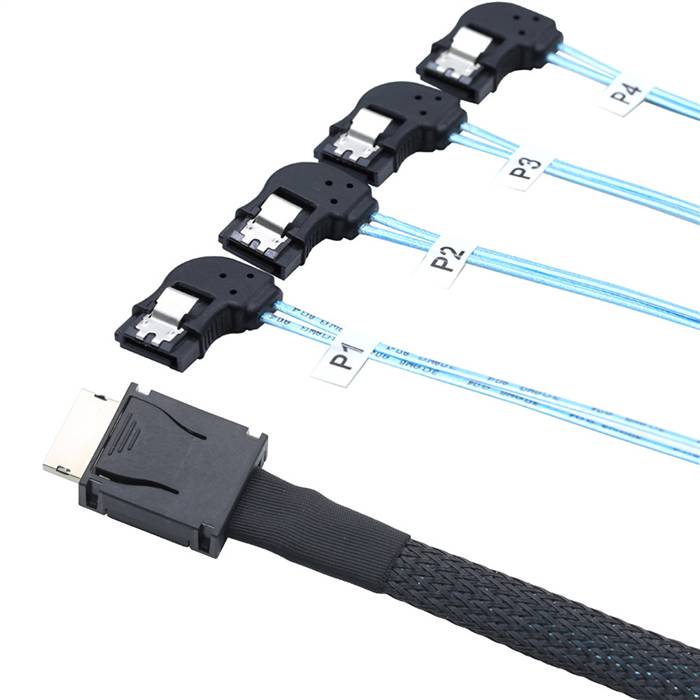

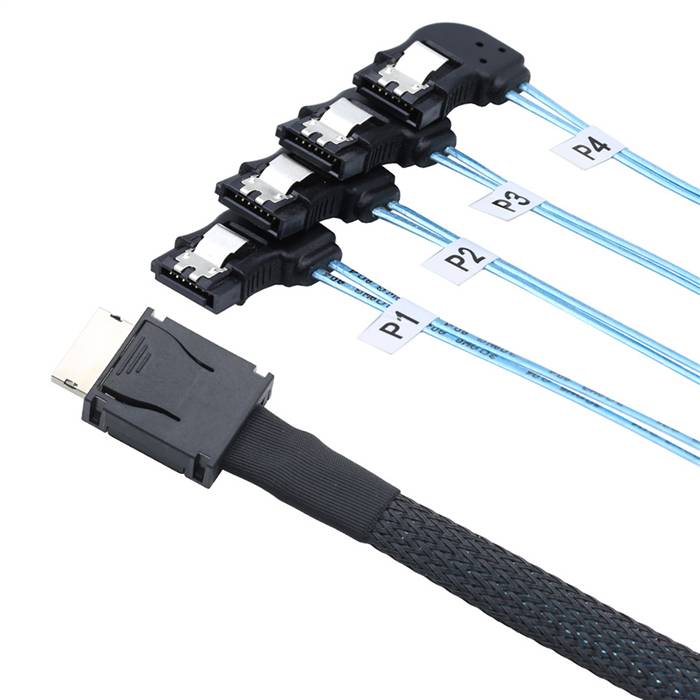

OCulink SFF-8611 4i to 4 Left Bend SATA 7P Cable

The OCuLink SFF-8611 4i to 4 Left Bend SATA 7P Cable is a specialized protocol conversion solution designed for space-constrained server and storage environments requiring specific cable routing configurations. This cable converts a single OCuLink SFF-8611 4i host interface into four independent left-bend SATA 7-pin interfaces, enabling efficient connectivity between PCIe-based host systems and multiple SATA storage devices in challenging installation scenarios. The left-bend SATA connectors facilitate optimized cable routing in specific spatial configurations, making this solution ideal for modern data centers requiring both protocol conversion and customized cable management solutions.

Features

• Direction-Optimized Design: Left-bend SATA connectors enable specific cable routing paths in confined spaces
• Protocol Conversion: Bridges PCIe host interfaces to multiple SATA storage devices
• High-Density Connectivity: Single host port supports connection to four SATA devices
• High-Speed Performance: Supports SATA 3.0 data rates up to 6 Gbps
• Enhanced Signal Integrity: Precision engineering with optimized impedance matching and shielding
• Secure Connection: Robust connectors ensure reliable mating and vibration-resistant operation
• Hot-Plug Capable: Supports hot-swap functionality for maintenance and upgrades
• Durable Construction: Quality materials ensure long-term reliability in 24/7 operation

Specifications

• Product Model : OCuLink to Quad Left-Bend SATA Cable
• Host Connector : OCuLink SFF-8611 4i, Male, Straight
• Device Connectors : 4x SATA 7-pin, Male, Left Bend
• Data Rate Support : Up to 6 Gbps (SATA 3.0)
• Supported Protocols : PCIe 4.0/3.0, SATA 3.0
• Wire Gauge : 30 AWG (data), 22 AWG (power)
• Impedance : 100? ±10%
• Shielding : Individual pair shielding with overall braid protection
• Cable Length : 0.5m, 1.0m
• Operating Temperature : -20°C to +85°C
• Durability Rating : 5,000 mating cycles (OCuLink), 1,500 cycles (SATA)
• Minimum Bend Radius : 30mm

Applications

• Space-Constrained Servers: Ideal for 1U/2U server configurations requiring specific cable routing paths
• Asymmetric Storage Arrays: Enabling efficient SATA drive connections in unconventional storage layouts
• Data Center Modernization: Facilitating infrastructure upgrades in environments with unique spatial constraints
• Direction-Specific Applications: Perfect for applications requiring left-oriented cable management
• OEM Server Manufacturing: Essential for system integrators building customized storage solutions
• Embedded Systems: Suitable for industrial applications requiring specific cable orientation
• Retrofit Projects: Ideal for upgrade scenarios with predetermined cable routing paths
• High-Availability Systems: Supporting reliable storage connectivity in mission-critical environments
