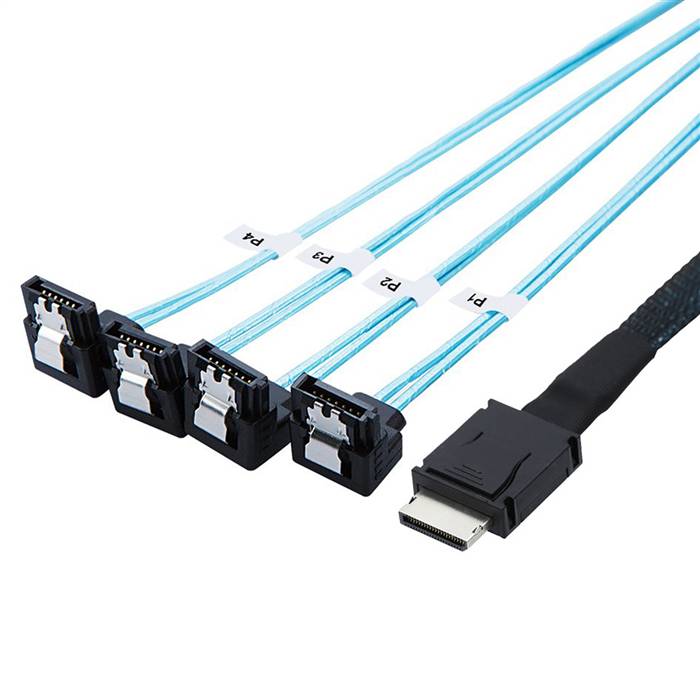

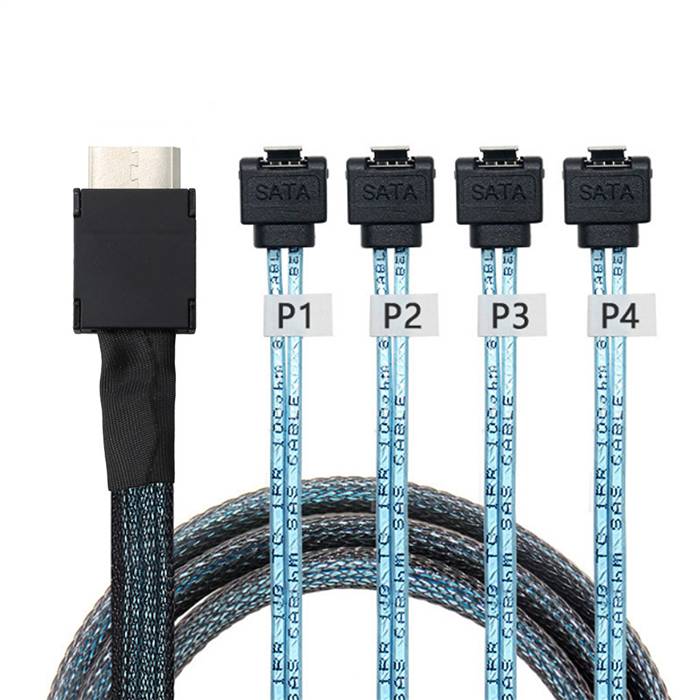

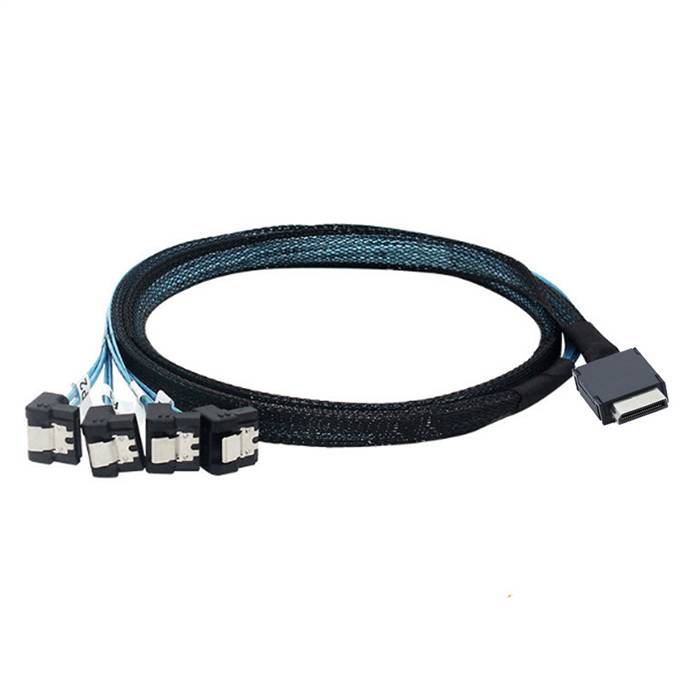

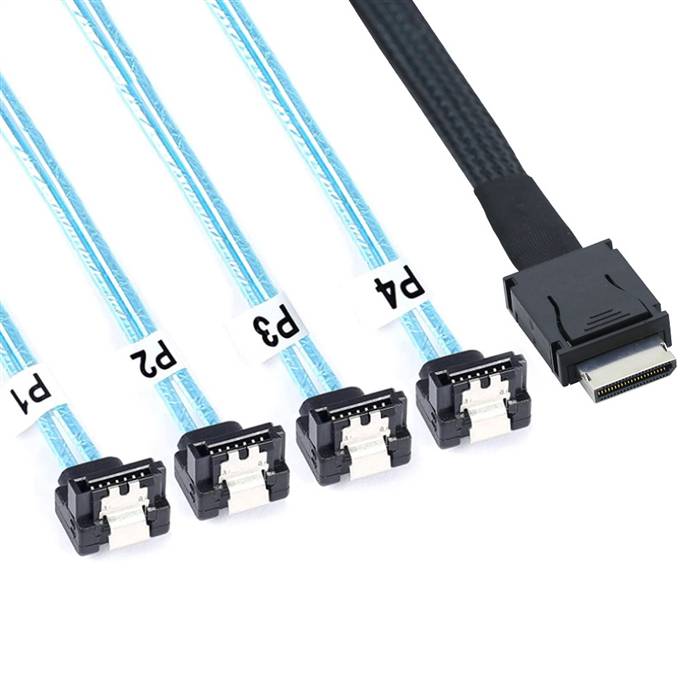

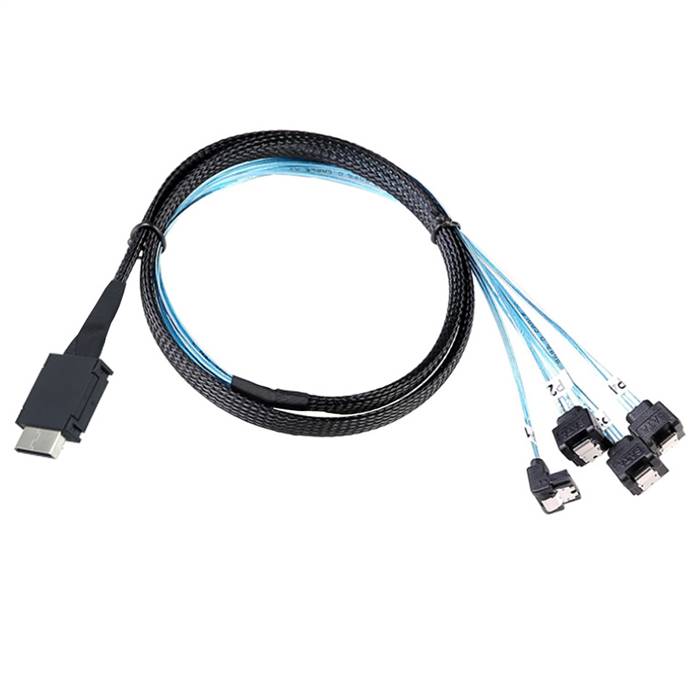

OCulink SFF-8611 4i to 4 Right Angle SATA 7P Cable

The OCuLink SFF-8611 4i to 4 Right Angle SATA 7P Cable is a space-optimized protocol conversion solution designed for high-density server and storage configurations. This specialized cable converts a single OCuLink SFF-8611 4i host interface into four independent right-angle SATA 7-pin interfaces, enabling efficient connectivity between PCIe-based host systems and multiple SATA storage devices in space-constrained environments. The right-angle SATA connectors facilitate clean cable routing and improved airflow, making this solution ideal for modern data centers requiring both protocol conversion and optimized space utilization.

Features

• Space-Optimized Design: Right-angle SATA connectors enable efficient cable management in confined spaces
• Protocol Conversion: Bridges PCIe host interfaces to multiple SATA storage devices
• High-Density Connectivity: Single host port supports connection to four SATA devices
• High-Speed Performance: Supports SATA 3.0 data rates up to 6 Gbps
• Enhanced Signal Integrity: Precision engineering with optimized impedance matching and shielding
• Secure Connection: Robust connectors ensure reliable mating and vibration-resistant operation
• Hot-Plug Capable: Supports hot-swap functionality for maintenance and upgrades
• Durable Construction: Quality materials ensure long-term reliability in 24/7 operation

Specifications

• Product Model: OCuLink to Quad Right Angle SATA Cable
• Host Connector: OCuLink SFF-8611 4i, Male, Straight
• Device Connectors: 4x SATA 7-pin, Male, Right Angle
• Data Rate Support: Up to 6 Gbps (SATA 3.0)
• Supported Protocols: PCIe 4.0/3.0, SATA 3.0
• Wire Gauge: 30 AWG (data), 22 AWG (power)
• Impedance: 100? ±10%
• Shielding: Individual pair shielding with overall braid protection
• Cable Length: 0.5m, 1.0m
• Operating Temperature: -20°C to +85°C
• Durability Rating: 5,000 mating cycles (OCuLink), 1,500 cycles (SATA)
• Minimum Bend Radius: 30mm

Applications

• High-Density Servers: Ideal for 1U/2U server configurations requiring multiple SATA connections
• Storage Arrays: Enabling space-optimized SATA drive configurations in compact storage systems
• Data Center Modernization: Facilitating infrastructure upgrades in space-constrained environments
• Backup Solutions: Perfect for connecting multiple backup drives with optimized cable routing
• OEM Server Manufacturing: Essential for system integrators building compact storage solutions
• Cloud Infrastructure: Supporting cost-effective, high-density storage configurations
• Test and Development: Useful for laboratory environments with limited space requirements
• Embedded Systems: Suitable for industrial applications requiring multiple SATA connections in compact form factors
