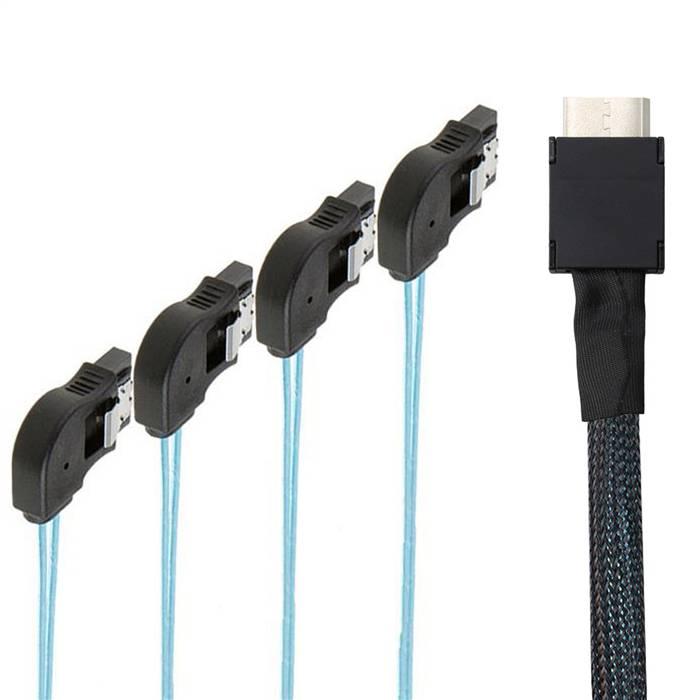

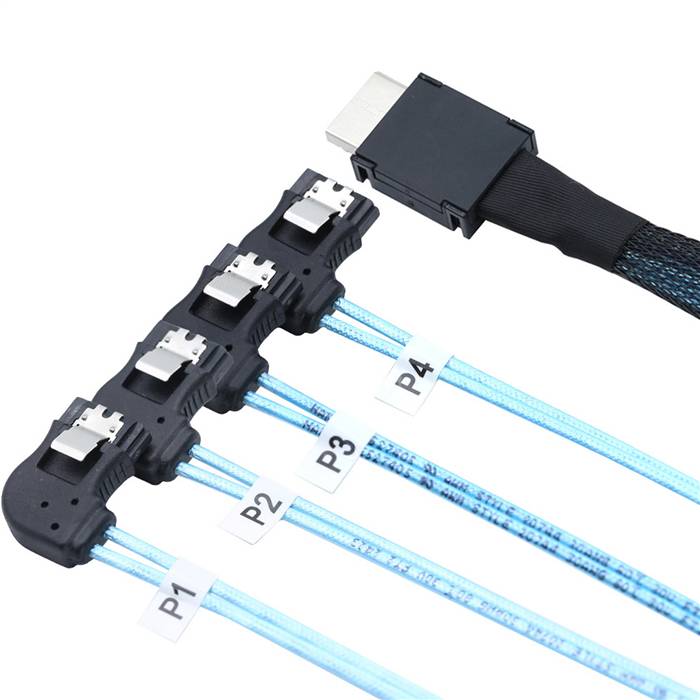

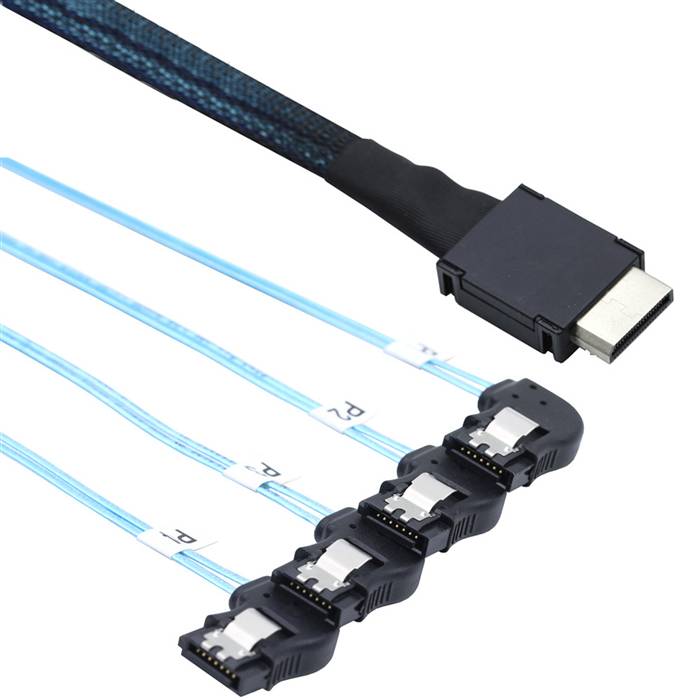

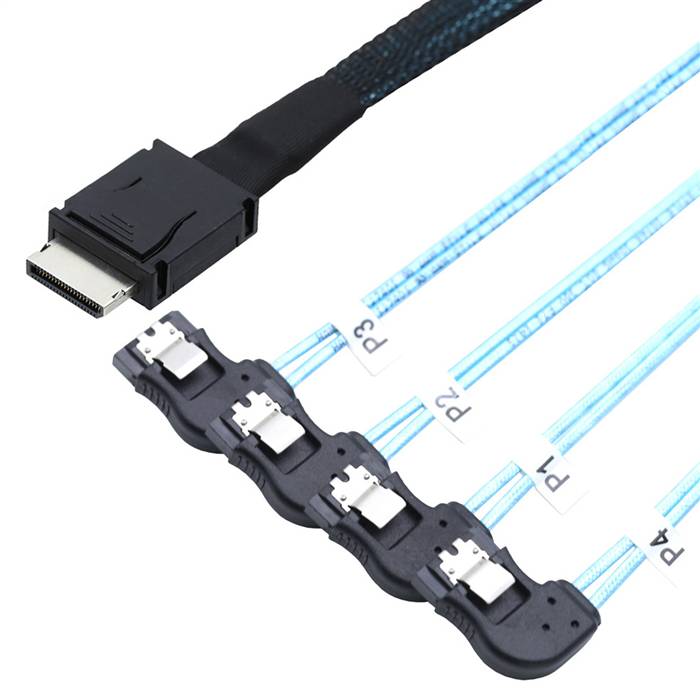

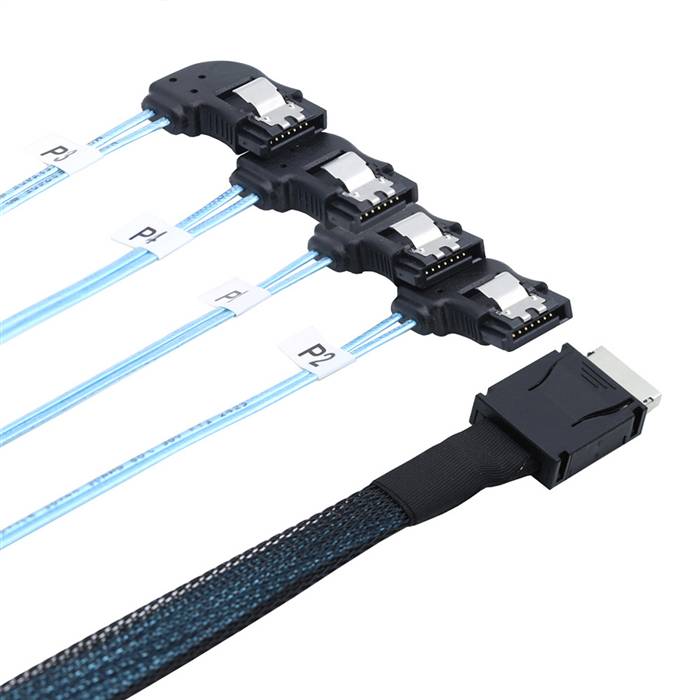

OCulink SFF-8611 4i to 4 Right Bend SATA 7P Cable

The OCuLink SFF-8611 4i to 4 Right Bend SATA 7P Cable is a specialized connectivity solution designed for space-constrained server and storage environments requiring specific right-oriented cable routing. This cable converts a single OCuLink SFF-8611 4i host interface into four independent right-bend SATA 7-pin interfaces, providing efficient connectivity between PCIe-based host systems and multiple SATA storage devices. The right-bend SATA connectors enable optimized cable management in specific spatial configurations where right-oriented routing is essential for proper installation and airflow management.

Features

• Direction-Specific Design: Right-bend SATA connectors enable optimized cable routing in confined spaces
• Protocol Conversion: Bridges PCIe host interfaces to multiple SATA storage devices
• High-Density Connectivity: Single host port supports connection to four SATA devices
• High-Speed Performance: Supports SATA 3.0 data rates up to 6 Gbps
• Enhanced Signal Integrity: Precision engineering with optimized impedance matching and shielding
• Secure Connection: Robust connectors ensure reliable mating and stable operation
• Hot-Plug Capable: Supports hot-swap functionality for maintenance and upgrades
• Durable Construction: Quality materials ensure long-term reliability in 24/7 operation

Specifications

• Product Model: OCuLink to Quad Right-Bend SATA Cable
• Host Connector: OCuLink SFF-8611 4i, Male, Straight
• Device Connectors: 4x SATA 7-pin, Male, Right Bend
• Data Rate Support: Up to 6 Gbps (SATA 3.0)
• Supported Protocols: PCIe 4.0/3.0, SATA 3.0
• Wire Gauge: 30 AWG (data), 22 AWG (power)
• Impedance: 100? ±10%
• Shielding: Individual pair shielding with overall braid protection
• Cable Length: 0.5m, 1.0m
• Operating Temperature: -20°C to +85°C
• Durability Rating: 5,000 mating cycles (OCuLink), 1,500 cycles (SATA)
• Minimum Bend Radius: 30mm

Applications

• Space-Constrained Servers: Ideal for 1U/2U server configurations requiring right-oriented cable routing
• Asymmetric Storage Arrays: Enabling efficient SATA drive connections in specific storage layouts
• Data Center Modernization: Facilitating infrastructure upgrades in environments with right-side spatial constraints
• Direction-Specific Applications: Perfect for applications requiring right-oriented cable management
• OEM Server Manufacturing: Essential for system integrators building customized storage solutions
• Embedded Systems: Suitable for industrial applications requiring specific right-bend cable orientation
• Retrofit Projects: Ideal for upgrade scenarios with predetermined right-side cable routing paths
• High-Density Racks: Supporting efficient cable management in fully populated server racks
