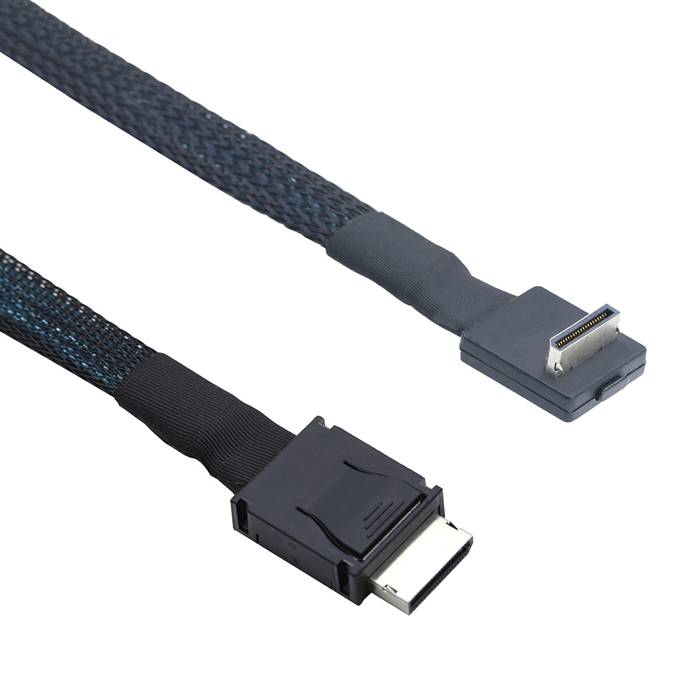

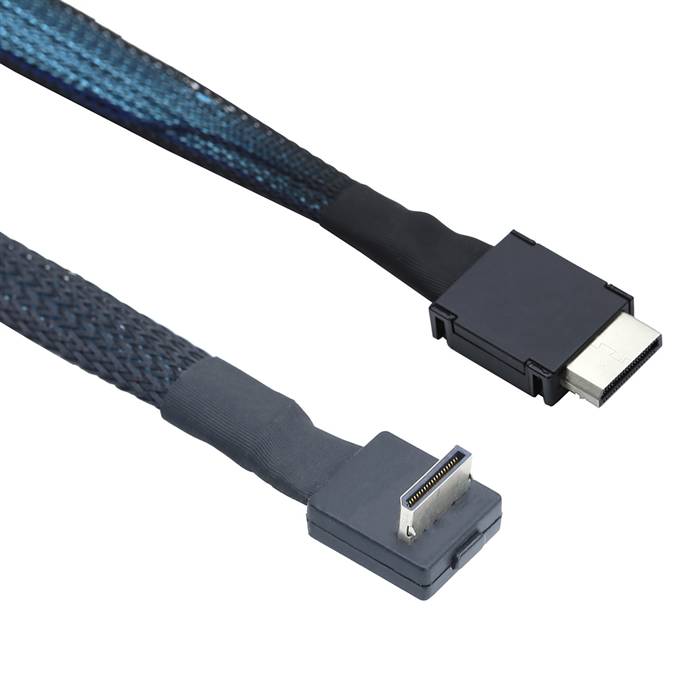

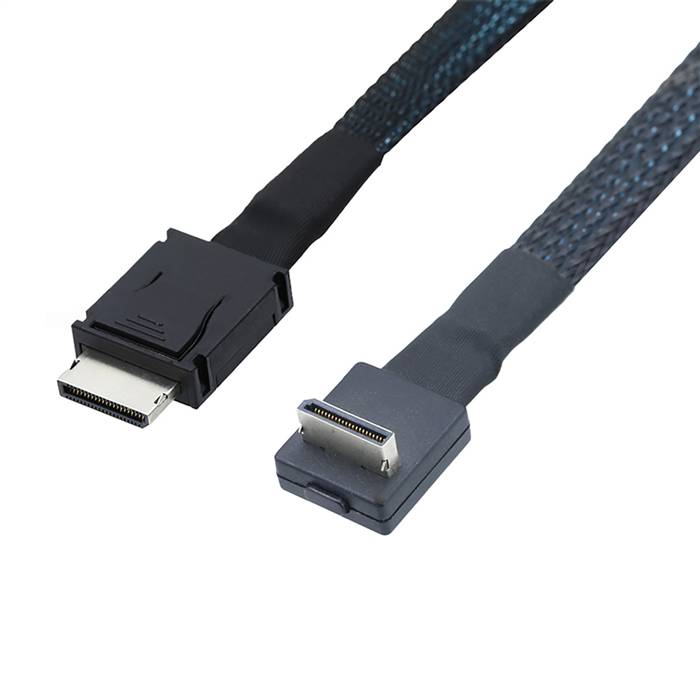

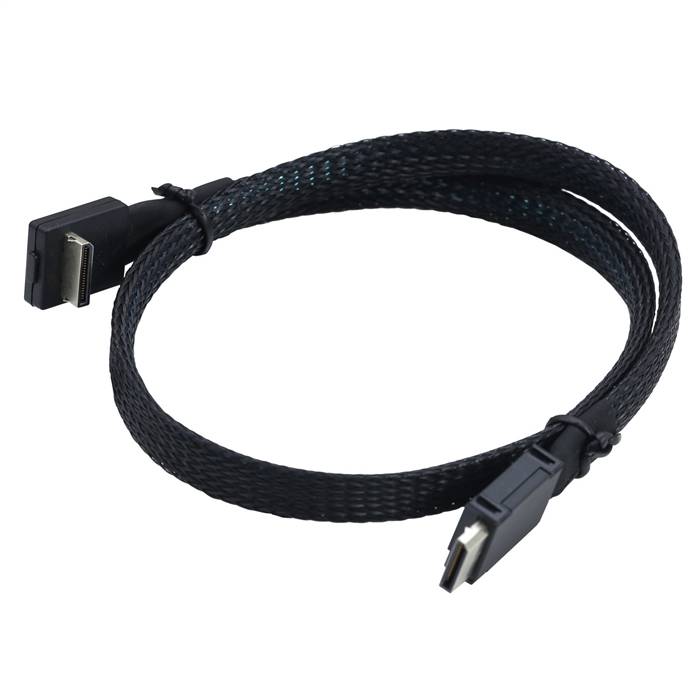

OCulink SFF-8611 4i to OCulink SFF-8611 4i Cable, Straight to Right Angle

The OCuLink SFF-8611 4i to OCuLink SFF-8611 4i Cable with Straight to Right Angle configuration is a specialized internal connectivity solution designed for space-constrained server and storage environments. This cable features a straight connector on one end and a right-angle connector on the other, providing optimal routing flexibility in high-density configurations. It enables reliable high-speed data transmission between OCuLink SFF-8611 4i interfaces while accommodating tight clearance requirements and improving cable management in compact server chassis and storage arrays.

Features

• Dual Orientation Design: Straight to right-angle connector configuration enables optimal cable routing in space-constrained environments
• High-Speed Performance: Supports PCIe 4.0 data rates up to 16 GT/s per lane, ensuring maximum bandwidth utilization
• Enhanced Signal Integrity: Precision engineering with optimized impedance control and shielding minimizes signal degradation
• Space-Optimized Connection: Right-angle connector facilitates clean cable management in tight spaces and high-density deployments
• Secure Connection: Robust connector design ensures reliable mating and vibration-resistant performance
• Flexible Protocol Support: Compatible with PCIe 4.0/3.0 standards for various applications
• Durable Construction: High-quality materials ensure long-term reliability in 24/7 operation environments
• Hot-Plug Capable: Supports hot-plug functionality for maintenance and upgrades without system downtime

Specifications

• Product Model: OCuLink SFF-8611 4i to OCuLink SFF-8611 4i Cable
• Host Connector: OCuLink SFF-8611 4i, Male, Straight
• Device Connector: OCuLink SFF-8611 4i, Male, Right Angle
• Data Rate Support: Up to 16 GT/s (PCIe 4.0)
• Supported Protocols: PCIe 4.0/3.0
• Wire Gauge: 30 AWG
• Impedance: 85? ±10%
• Shielding: Individual pair shielding with overall braid protection
• Cable Length: 0.5m, 1.0m
• Operating Temperature: -20°C to +85°C
• Durability Rating: 5,000 mating cycles
• Minimum Bend Radius: 25mm
• Current Rating: 1.0A per pin maximum

Applications

• High-Density Servers: Ideal for space-constrained 1U/2U server configurations requiring optimized cable routing
• Storage Arrays: Perfect for connecting backplanes to controllers in compact storage systems
• Rack-Mount Systems: Enables clean cable management in full-depth rack installations
• Embedded Systems: Suitable for industrial PCs and embedded applications with limited clearance
• OEM Server Manufacturing: Essential for system integrators designing compact server solutions
• Data Center Infrastructure: Supports high-density deployments in hyperscale computing environments
• Test and Development: Useful for prototyping and validation in laboratory settings with space constraints
