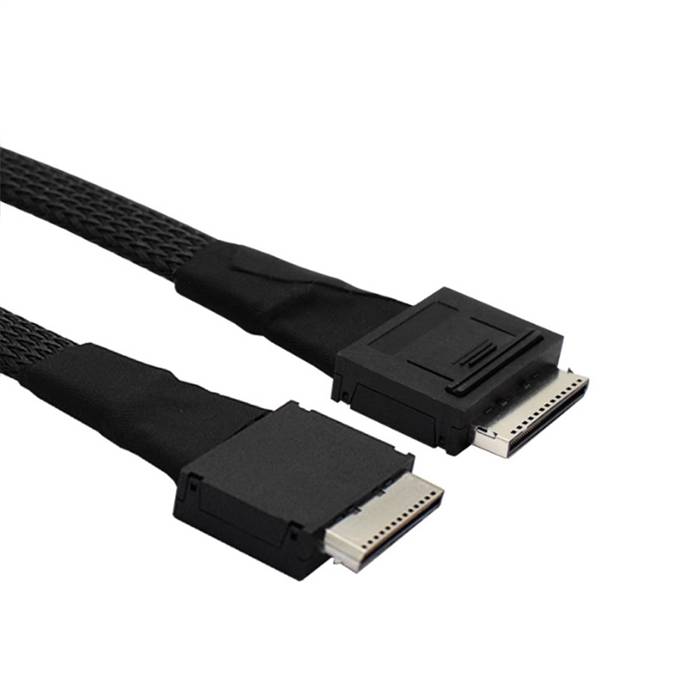

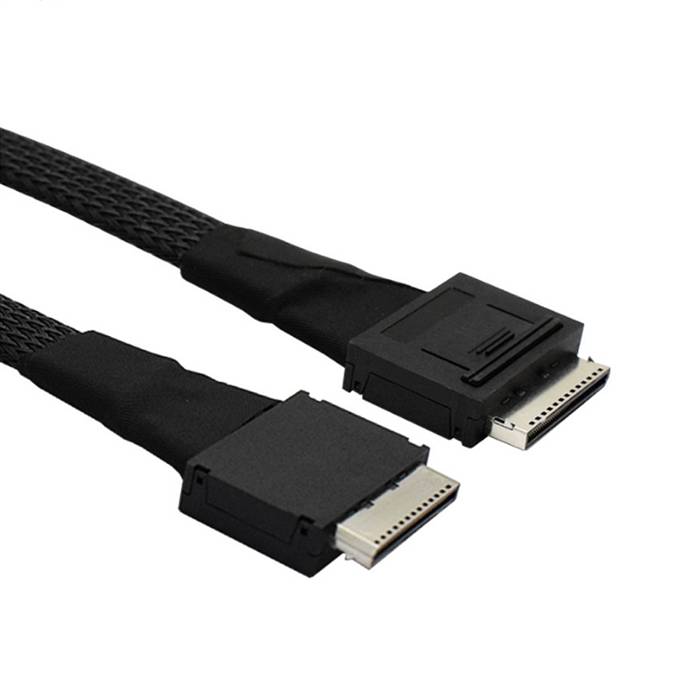

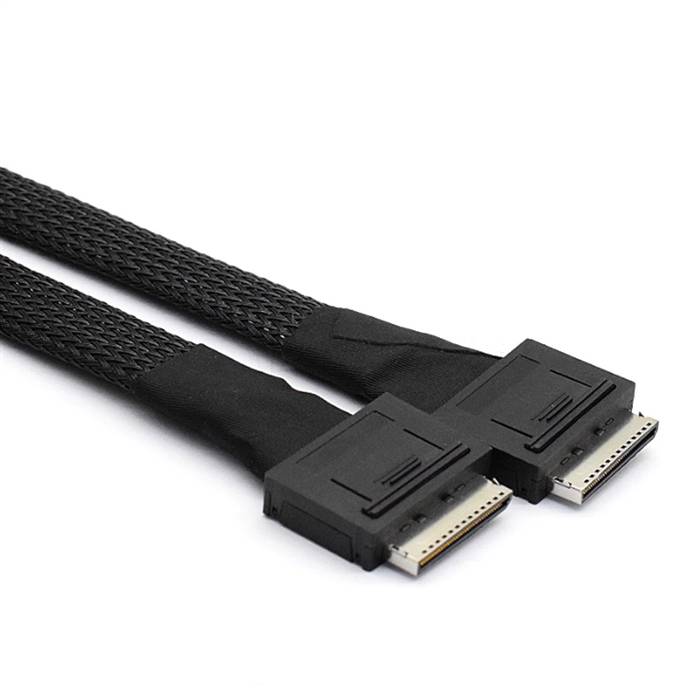

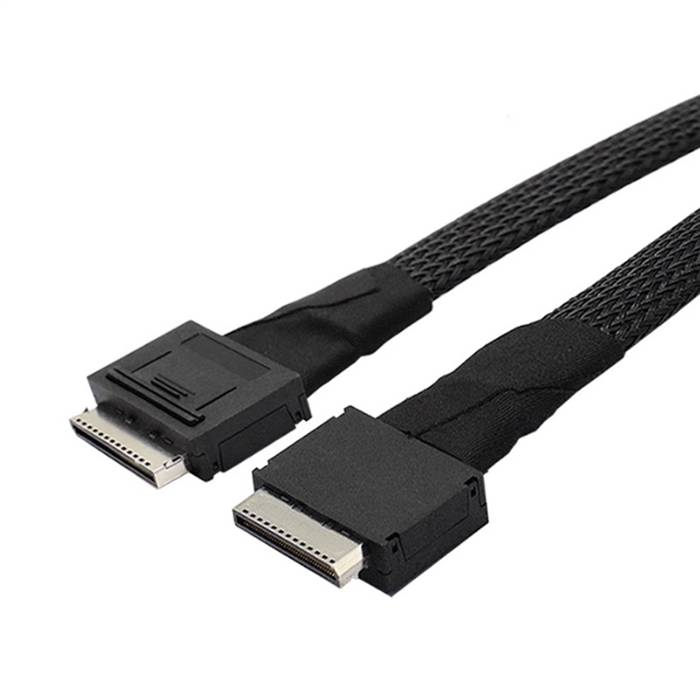

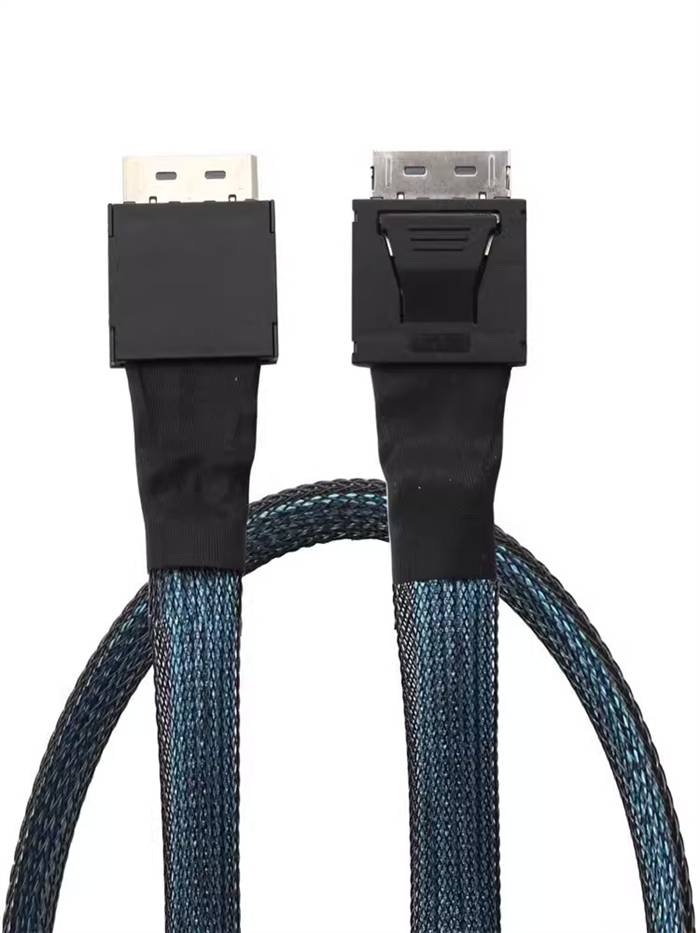

OCulink SFF-8611 8i to OCulink SFF-8611 8i Cable, Straight to Straight

The OCulink SFF-8611 8i to OCulink SFF-8611 8i Cable is a high-performance direct-connect solution designed for establishing reliable PCIe connections between compatible devices in enterprise and high-performance computing environments. This straight-to-straight configuration cable provides a robust point-to-point link that maintains signal integrity while supporting the high bandwidth requirements of modern PCIe applications. The cable features identical SFF-8611 8i connectors on both ends, ensuring a secure and stable connection for various PCIe expansion scenarios.

Features

• Direct PCIe Connection: Provides point-to-point connectivity between OCulink SFF-8611 8i interfaces
• High-Speed Performance: Supports PCIe 4.0 specifications with data rates up to 16 GT/s per lane
• Full Bandwidth Utilization: Maintains x8 lane configuration for maximum throughput
• Enhanced Signal Integrity: Precision impedance matching and shielding minimize signal loss
• Secure Connection: Positive latching mechanism ensures stable mating
• Robust Construction: Fully shielded connectors and cable provide EMI protection

Specifications

• Product Model: OCulink SFF-8611 8i to SFF-8611 8i Cable
• Connectors: 2x SFF-8611 8i, Male, Straight
• Data Rate Support: PCIe 4.0 (16 GT/s), PCIe 3.0 (8 GT/s)
• Supported Protocols: PCI Express
• Number of Lanes: x8 (8 lanes)
• Cable Type: Twinaxial
• Impedance: 85? ±10%
• Shielding: Individual pair shielding with overall braid protection
• Cable Length: 0.5m, 1.0m
• Operating Temperature: 0°C to +70°C
• Durability Rating: 5,000 mating cycles minimum
• Minimum Bend Radius: 30mm

Applications

• GPU Expansion: Connecting graphics accelerators to host systems
• NVMe Storage Expansion: Linking PCIe storage devices to host controllers
• High-Performance Computing: Interconnecting PCIe devices in cluster configurations
• Server Infrastructure: Expanding PCIe capabilities in enterprise servers
• Workstation Applications: Adding specialized PCIe cards to professional workstations
• Test and Measurement: Laboratory environments requiring stable PCIe connections
• OEM Solutions: Custom integration for specific PCIe connectivity requirements
