CAB-8643-8087 | Internal HD Mini SAS SFF-8643 to Mini SAS SFF-8087 Cable, Straight to Straight
CAB-8643-8087 | Internal HD Mini SAS SFF-8643 to Mini SAS SFF-8087 Cable, Straight to Straight

Alternative Views:
Our Price: $15.00

Warranty: 1 Year Warranty
Availability: In Stock
Leadtime: Usually ships within 2 Business Days


Product Code: CAB-8643-8087


Compatibility: 		Please input the brand and model of the device on which you will install this cable.

Select Length*:

Qty:
Description Datasheet

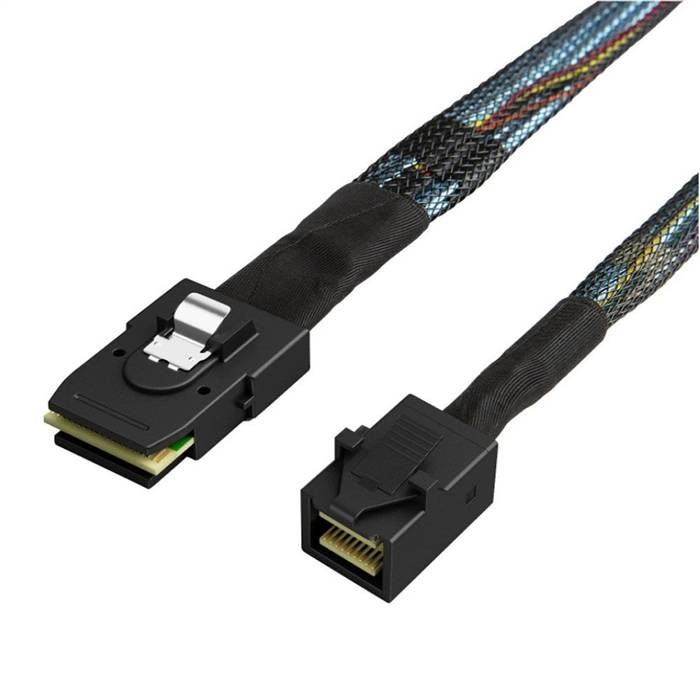

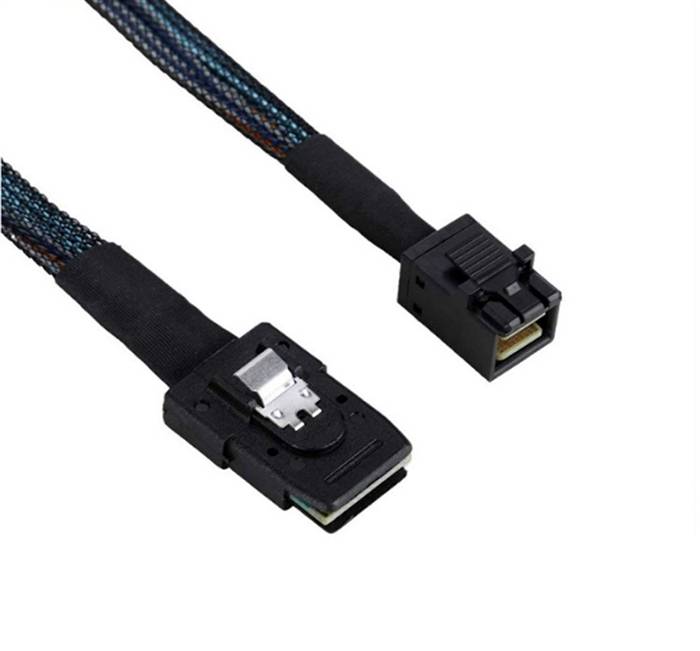

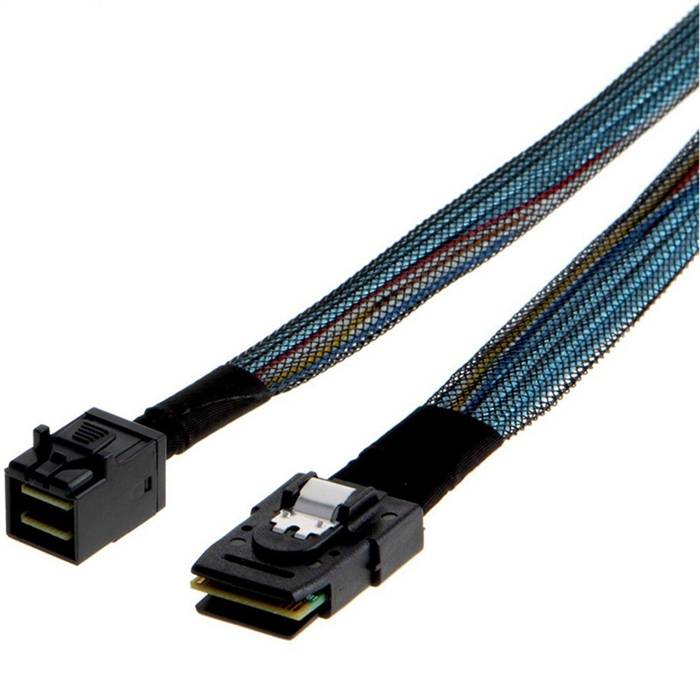

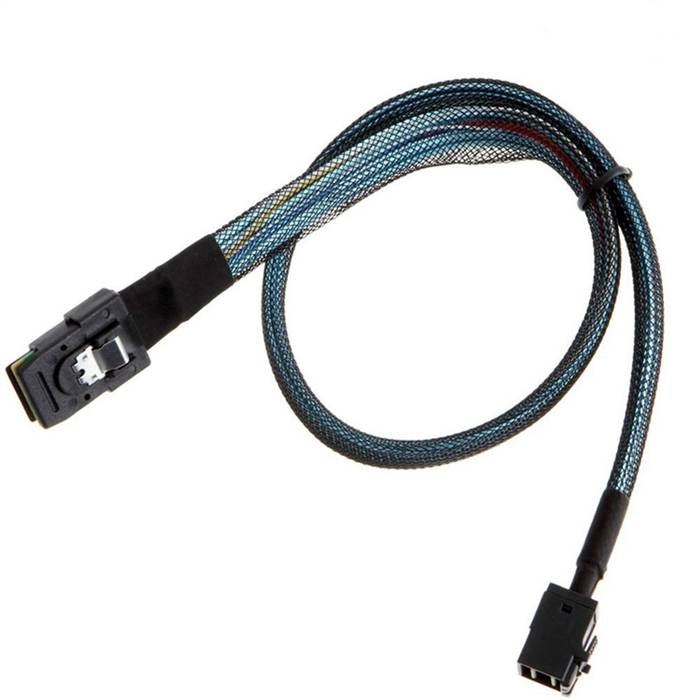

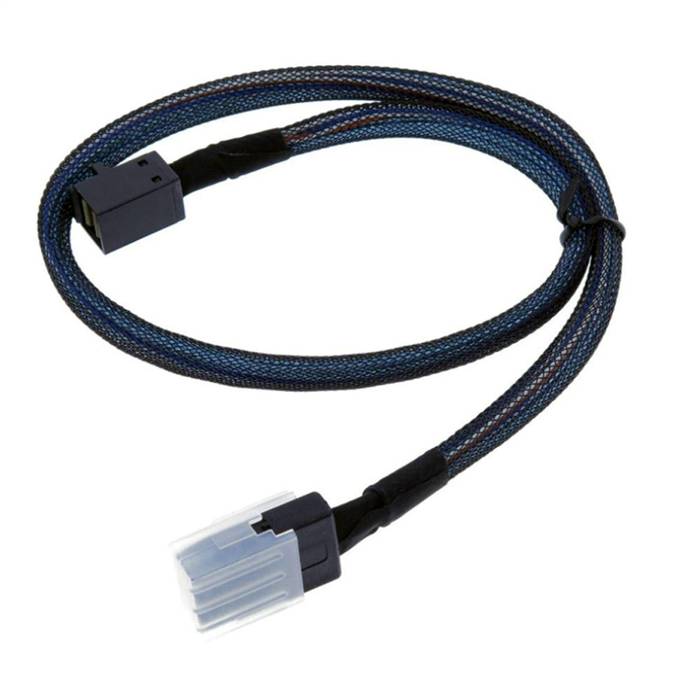

Internal HD Mini SAS SFF-8643 to Mini SAS SFF-8087 Cable, Straight to Straight.

Features and benefits
  • Length: 0.5~1 meter
  • 30AWG
  • Connector A: Internal Mini SAS HD (SFF-8643)
  • Connector B: Internal Mini SAS (SFF-8087)
  • Impedance: 100 Ohms
  • Sideband
  • Data Rate = 6Gb/s

Mechanical behavior
  • Fit and non-fit
  • Conditions: EIA 364-13. Insert and extract at a speed of 25 mm/min.
  • Mating power: 100N maximum.
  • Relieving force: 50 nautical miles maximum.

Electrical performance
  • Contact current rating: 0.5 The maximum ampere per needle when mating.
  • Voltage level: 30 volts per contact when mating or not mating.
  • Contact resistance: After the stress test, the maximum initial is 30mohm, and the maximum is 15mohm.
  • Withstand medium voltage: 500 volts, no failure in 1 minute.
  • Insulation resistance: At least 1000 moms.

Signal integrity
  • Matching connector impedance: 100 ohm ± 15%
  • Absolute cable impedance: 100 ohm ± 10%
  • Cable pair matching: ±5 ohm
  • Common mode impedance: 25 to 40 ohms
  • Insertion loss: -6Db up to 4.5Ghz; 11Db up to 9Ghz
  • Crosstalk: -35dB up to 6GHz

Applications
  • Fibre Channel
  • InfiniBand
  • SAS 2.1 (Serial Attached SCSI) compliant
  • RoHS Compliant
