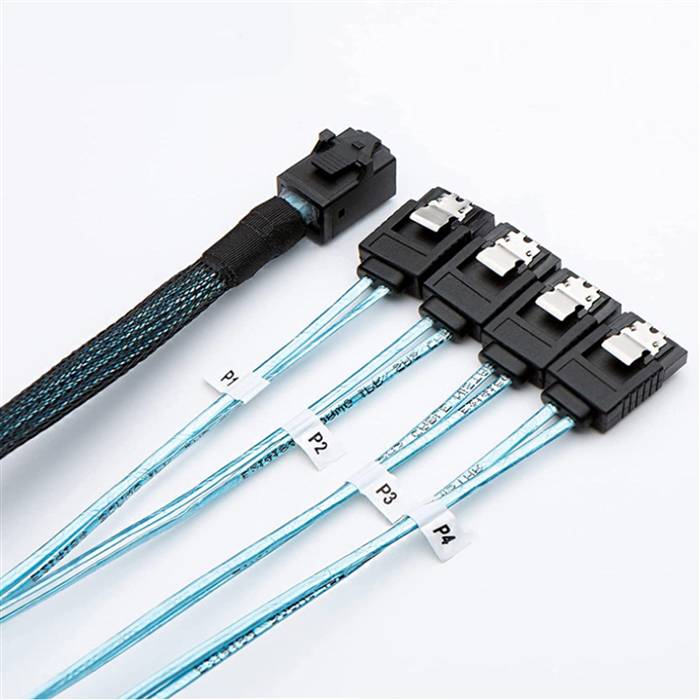

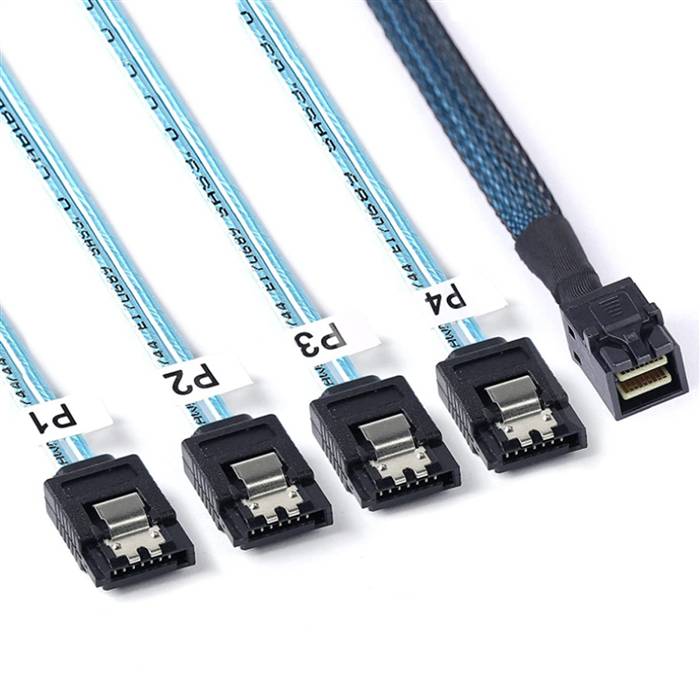

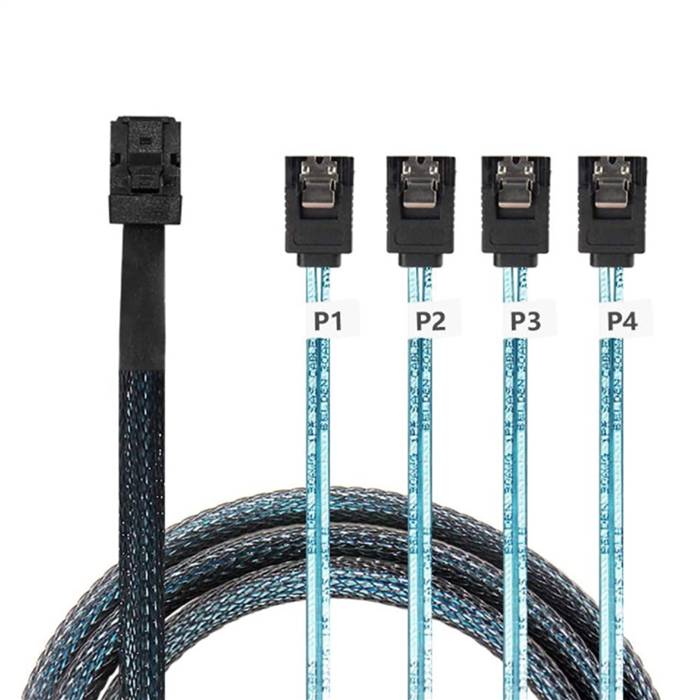

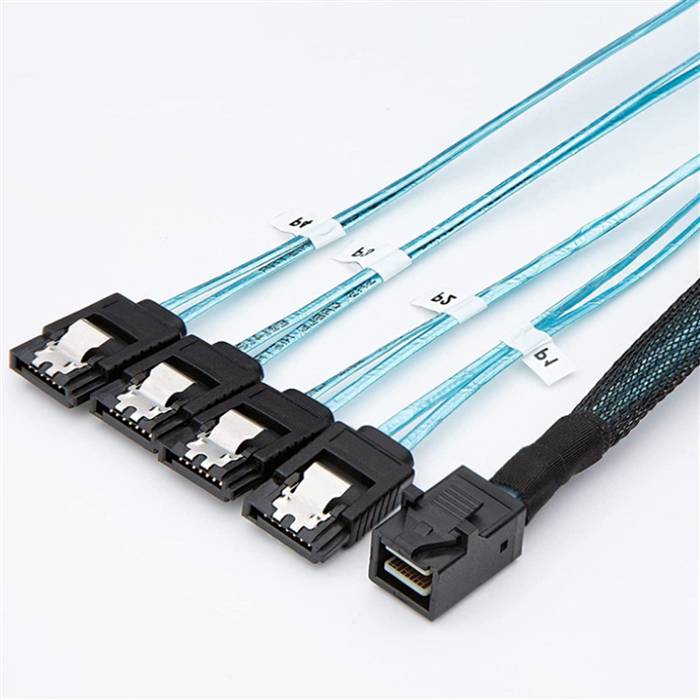

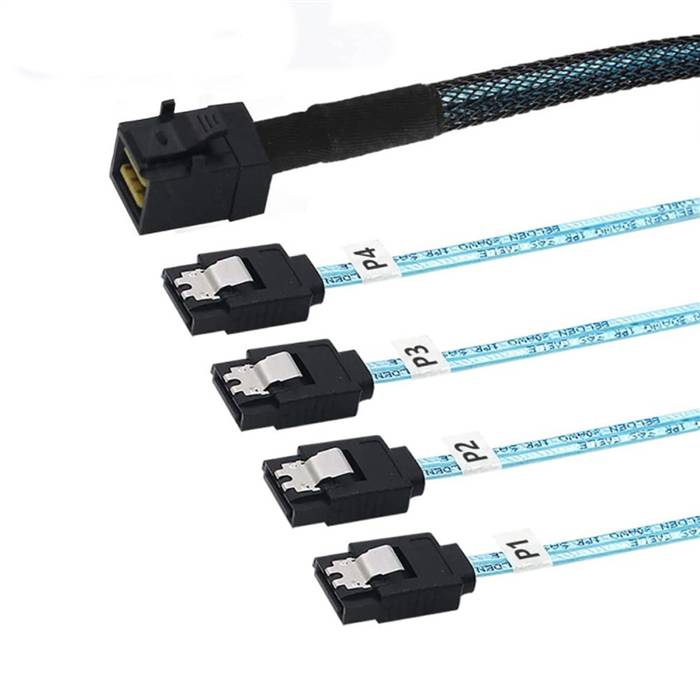

Internal HD Mini SAS SFF-8643 4i to 4 Straight SATA 7P Cable

The Internal HD Mini SAS SFF-8643 4i to 4 Straight SATA 7P Cable is a high-density breakout solution designed to connect a single HD Mini SAS (SFF-8643) host port to four individual SATA 7-pin devices. This cable enables efficient expansion of SATA storage capacity in server and storage systems while maintaining high-speed data transfer rates. Its straight connectors ensure reliable connections in standard configurations, making it ideal for internal storage expansions and backplane connectivity in data center environments.

Features

• High-Density Breakout: Converts one HD Mini SAS port to four SATA ports (maximizing storage connectivity);
• High-Speed Performance: Supports SATA 3.0 (6Gb/s data rates, ensuring full bandwidth utilization);
• Backward Compatibility: Fully compatible with SATA 2.0 and SATA 1.0 specifications;
• Superior Signal Integrity: Precision engineering with proper impedance control (minimizes signal degradation);
• Secure Connection: SATA connectors with positive latching mechanisms (vibration-resistant operation);
• Space-Efficient Design: Straight connectors facilitate clean cable management (standard server configurations);
• Durable Construction: High-quality materials ensure reliability (multiple mating cycles).

Specifications

• Product Model: Internal HD Mini SAS to 4x SATA Cable;
• Host Connector: HD Mini SAS SFF-8643 4i (Male);
• Device Connectors: 4x Straight SATA 7-pin;
• Data Rate Support: Up to 6Gb/s (SATA 3.0);
• Supported Protocols: SATA 3.2/2.0/1.0;
• Cable Type: Internal shielded cable assembly;
• Cable Length: 0.5m, 1.0m (standard options);
• Operating Temperature: -20°C to +85°C;
• Durability Rating: 5000 mating cycles (SATA connectors);
• Minimum Bend Radius: 30mm;
• Voltage Rating: 30V (per contact).

Applications

• Server Storage Expansion: Adding multiple SATA drives to servers (with HD Mini SAS ports);
• Storage Arrays: Connecting host adapters to SATA drive backplanes (storage systems);
• Data Center Infrastructure: Deploying high-density SATA storage (server racks);
• OEM System Integration: Building customized storage solutions (SAS to SATA connectivity);
• Backup Solutions: Implementing cost-effective SATA-based backup storage systems;
• Test and Development Labs: Prototyping and validating multi-drive SATA configurations;
• Hardware Upgrades: Modernizing existing systems (additional SATA storage capacity);
• Cloud Storage: Supporting large-scale SATA storage deployments (cloud infrastructure).
