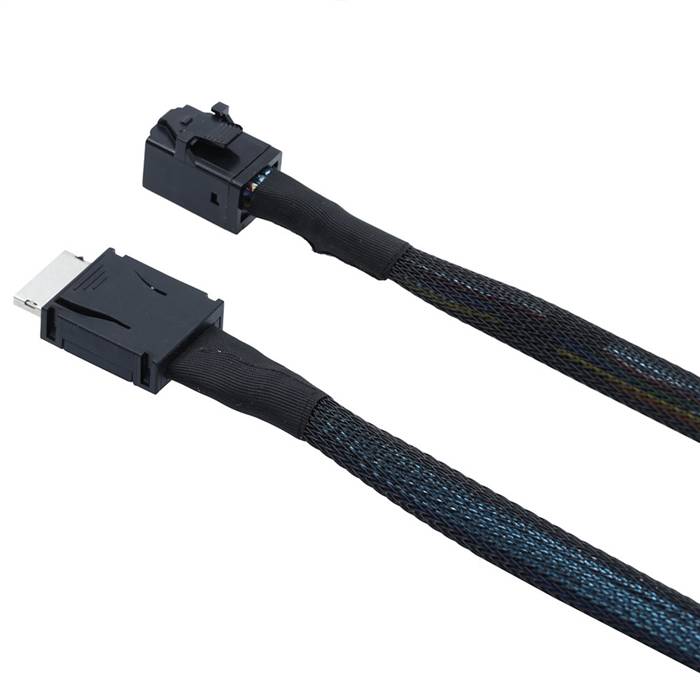

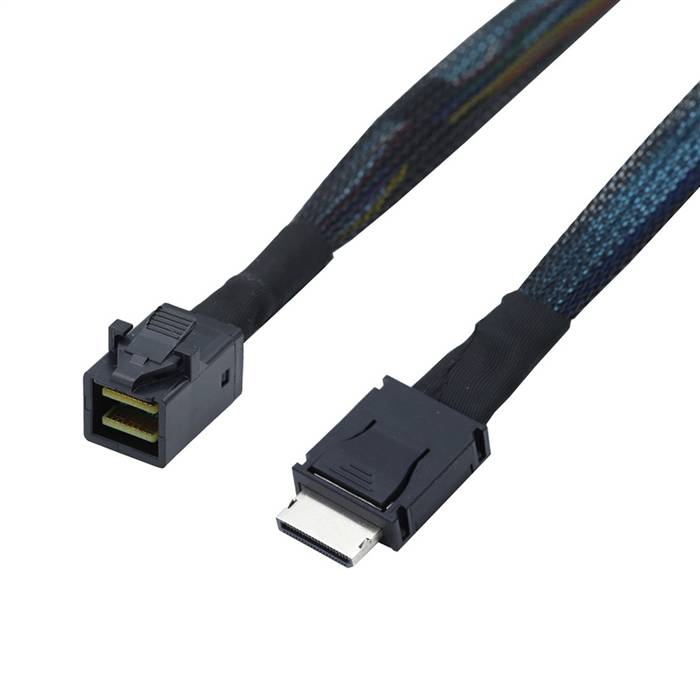

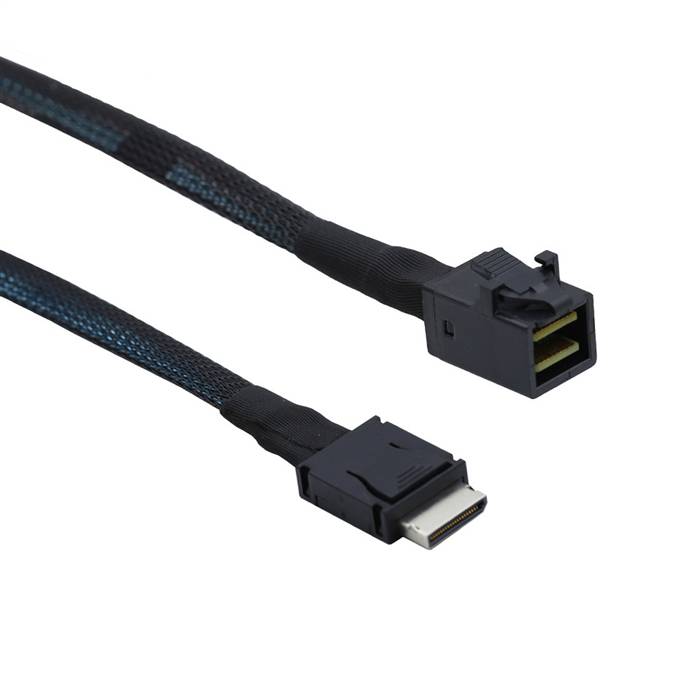

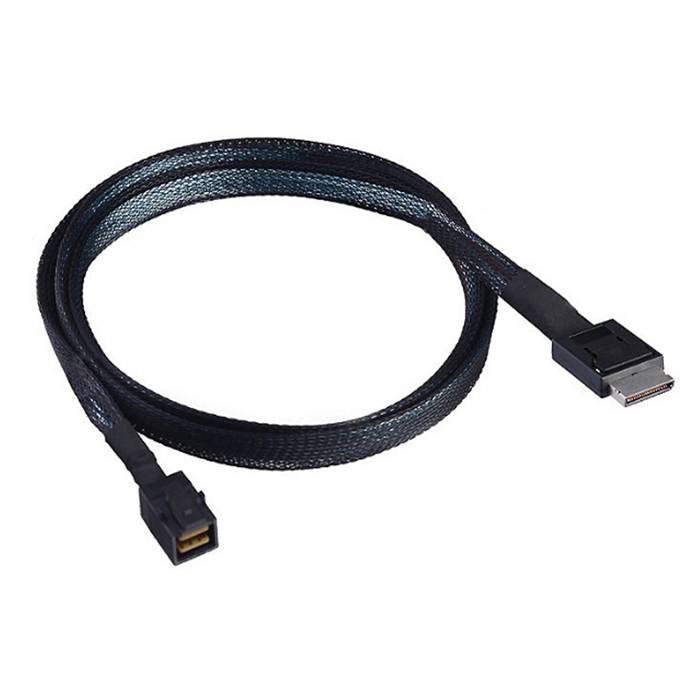

Internal HD Mini SAS SFF-8643 4i to OCulink SFF-8611 4i Cable

The Internal HD Mini SAS SFF-8643 4i to OCuLink SFF-8611 4i Cable is a high-performance interconnect solution designed for modern server and storage systems; It provides direct conversion from high-density Mini SAS interface to compact OCuLink interface; Enables seamless connectivity between SAS/SATA hosts and PCIe-based storage devices; Ideal for space-constrained environments with reliable high-speed data transmission and excellent signal integrity.

Features

• High-Speed Performance: Supports SAS-3 12Gb/s and PCIe 3.0 8GT/s data rates;
• Dual Protocol Compatibility: Works with SAS/SATA and PCIe NVMe protocols;
• Superior Signal Integrity: Precision engineering with 100? impedance matching;
• Secure Connection: Robust connectors with positive latching mechanisms;
• Space-Efficient Design: Compact OCuLink connector for high-density configurations;
• Durable Construction: High-quality materials with 5000 mating cycles rating;
• Hot-Plug Capable: Supports hot-swapping without system downtime.

Specifications

• Product Model: Internal HD Mini SAS to OCuLink Cable;
• Host Connector: HD Mini SAS SFF-8643 4i Male;
• Device Connector: OCuLink SFF-8611 4i Male;
• Data Rate Support: Up to 12Gb/s SAS-3, 8GT/s PCIe 3.0;
• Supported Protocols: SAS-3/2/1, SATA 3.2, PCIe 3.0;
• Impedance: 100? ±10%;
• Shielding: Individual pair shielding with overall braided protection;
• Cable Length: 0.5m, 1.0m;
• Operating Temperature: -20°C to +85°C;
• Durability Rating: 5000 mating cycles;
• Minimum Bend Radius: 30mm;
• Voltage Rating: 30V per contact.

Applications

• Server Storage Expansion: Connecting SAS HBAs to OCuLink NVMe drives;
• Storage Array Connectivity: Linking SAS systems to PCIe storage devices;
• Data Center Infrastructure: Mixed-protocol storage environments;
• OEM System Integration: Customized storage solutions;
• Test and Development Labs: Prototyping and validation;
• Hardware Upgrades: Modernizing SAS systems with PCIe NVMe storage;
• High-Density Servers: 1U/2U server space optimization;
• Cloud Computing: Hyperscale environment storage configurations.
