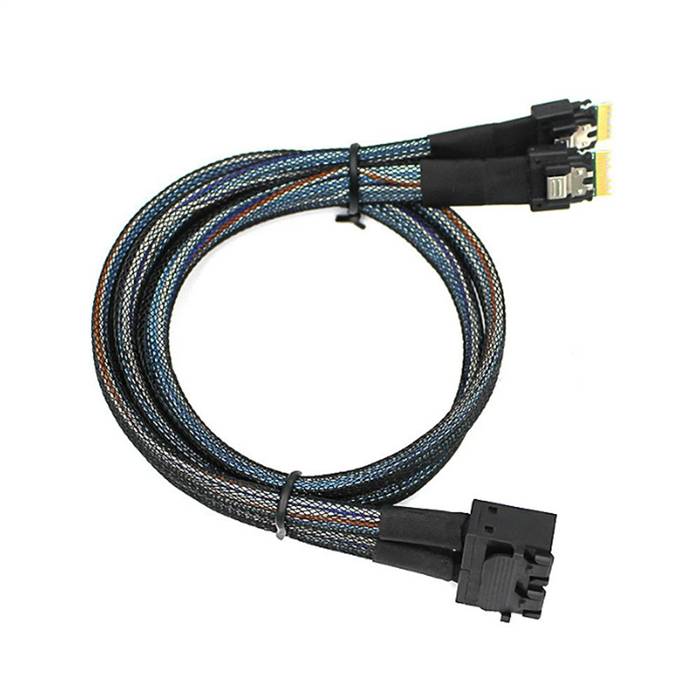

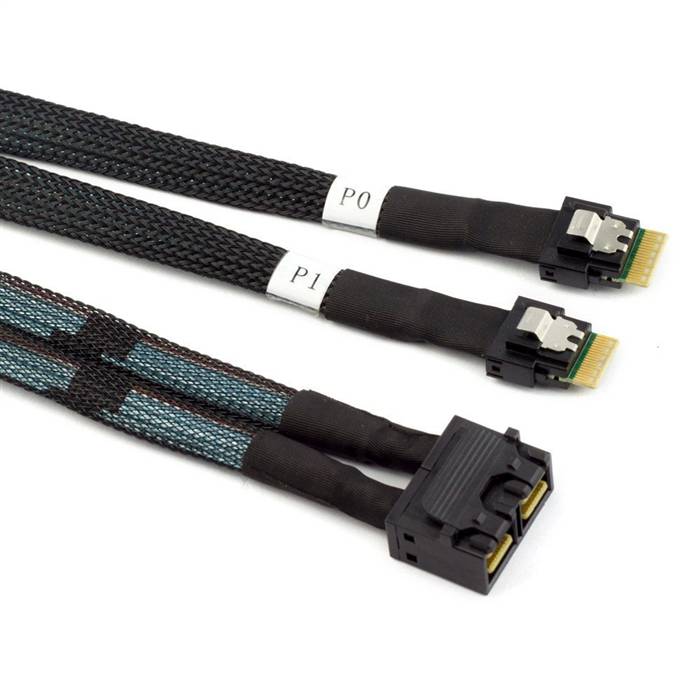

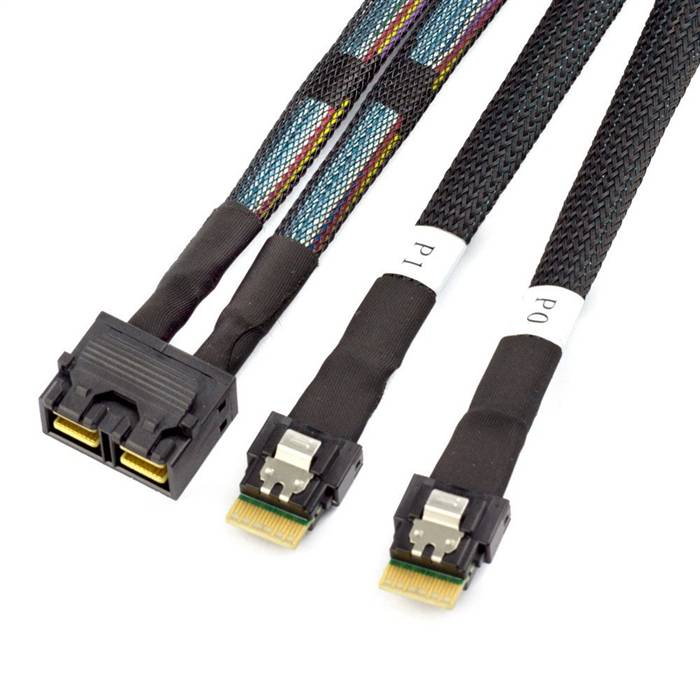

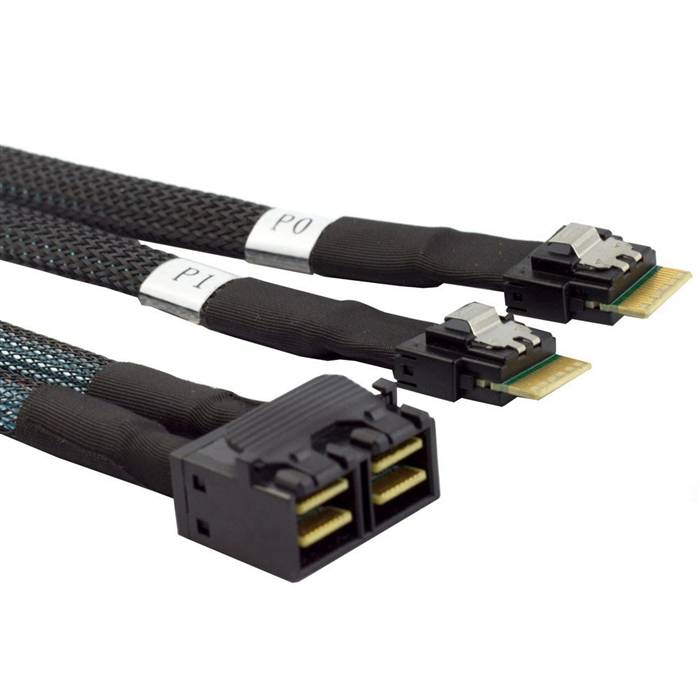

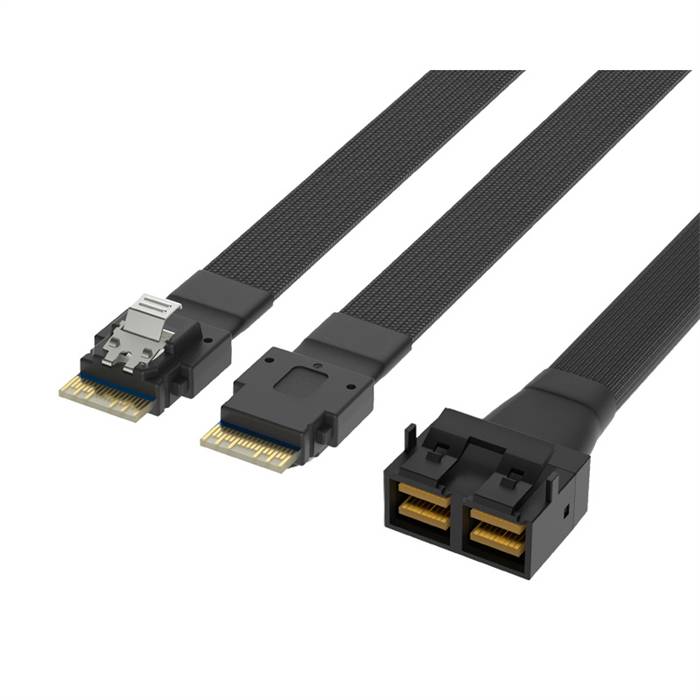

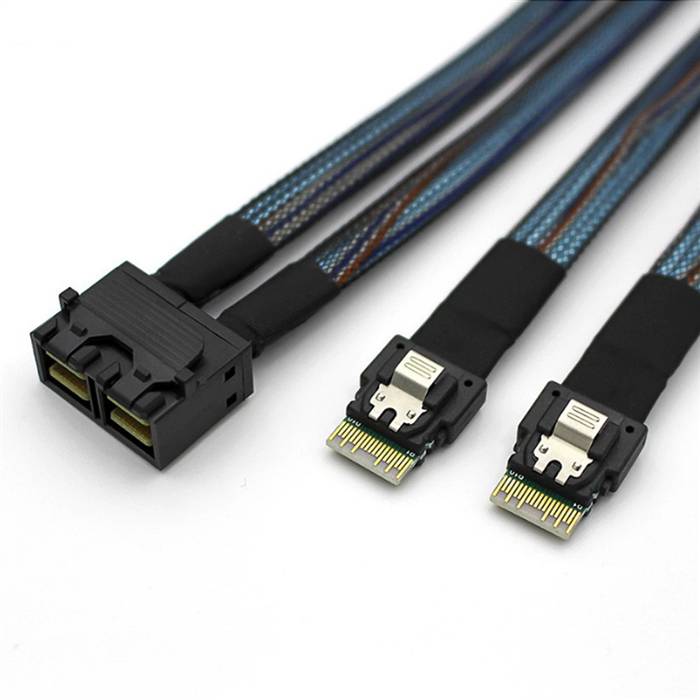

Internal HD Mini SAS SFF-8643 8i to 2 SlimSAS SFF-8654 4i 38P Cable

The Internal HD Mini SAS SFF-8643 8i to 2 SlimSAS SFF-8654 4i 38P Cable is a high-performance breakout solution designed for modern enterprise storage systems and data center environments. This cable efficiently converts a single 8i Mini SAS host interface into two independent SlimSAS 4i interfaces, providing reliable high-speed data transmission while maintaining excellent signal integrity. Engineered for high-density server configurations, this solution offers flexible connectivity options for integrating host systems with modern storage devices, making it ideal for storage expansion and infrastructure upgrades in demanding computing environments.

Features

• High-Density Breakout Design: Converts one 8i host port into two 4i SlimSAS interfaces
• High-Speed Performance: Supports data rates up to 24 Gbps (SAS 4.0) and 16 GT/s (PCIe 4.0)
• Enhanced Signal Integrity: Precision engineering with optimized impedance matching
• Reliable Connection: Straight connectors ensure secure mating and stable connections
• Space-Efficient Design: Compact SlimSAS connectors enable higher density server deployments
• Flexible Protocol Support: Compatible with SAS and PCIe protocols
• Robust Construction: Quality materials ensure long-term reliability
• Hot-Plug Capable: Supports hot-swap functionality for maintenance and upgrades

Specifications

• Product Model: Mini SAS HD to Dual SlimSAS Cable
• Host Connector: Internal HD Mini SAS SFF-8643 8i, Male, Straight
• Device Connectors: 2x SlimSAS SFF-8654 4i, 38-Position, Male, Straight
• Data Rate Support: Up to 24 Gbps (SAS 4.0), 16 GT/s (PCIe 4.0)
• Supported Protocols: SAS 4.0/3.0, PCIe 4.0/3.0, SATA 3.0
• Wire Gauge: 30 AWG
• Impedance: 100? ±10%
• Shielding: Individual pair shielding with overall braid protection
• Cable Length: 0.5m, 1.0m
• Operating Temperature: -20°C to +85°C
• Durability Rating: 5,000 mating cycles
• Minimum Bend Radius: 30mm

Applications

• Data Center Infrastructure: Connecting traditional SAS hosts to modern SlimSAS storage devices
• Storage Array Expansion: Ideal for hybrid storage configurations requiring protocol flexibility
• Server Upgrade Projects: Enabling integration of new servers with existing storage infrastructure
• High-Density Server Racks: Perfect for space-constrained server configurations
• Enterprise Storage Systems: Suitable for large-scale deployments requiring flexible connectivity
• Test and Development: Useful for laboratory environments requiring interface conversion
• OEM Server Solutions: Designed for server manufacturers needing backward compatibility
• Cloud Infrastructure: Supporting mixed storage environments in hyperscale data centers
