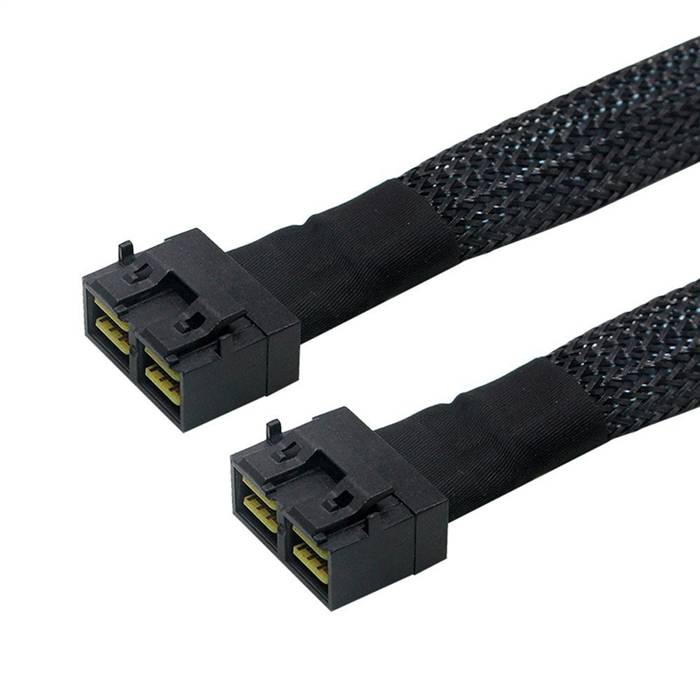

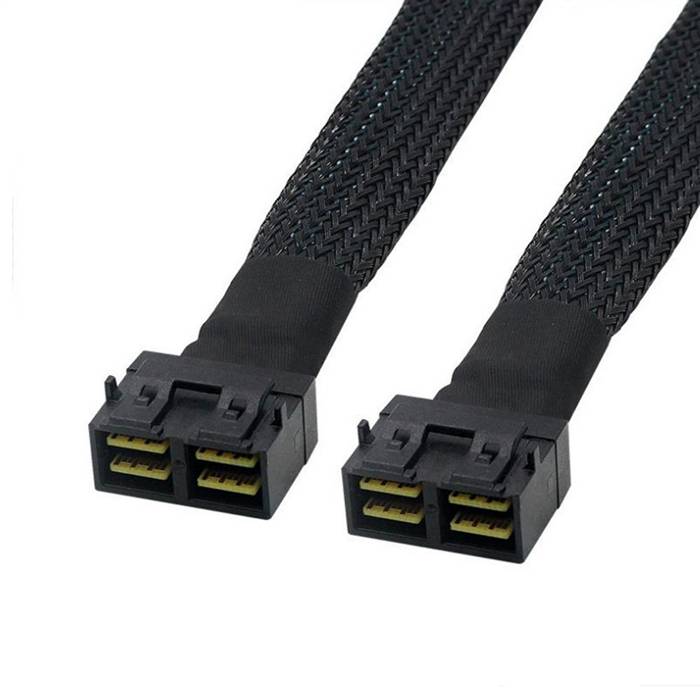

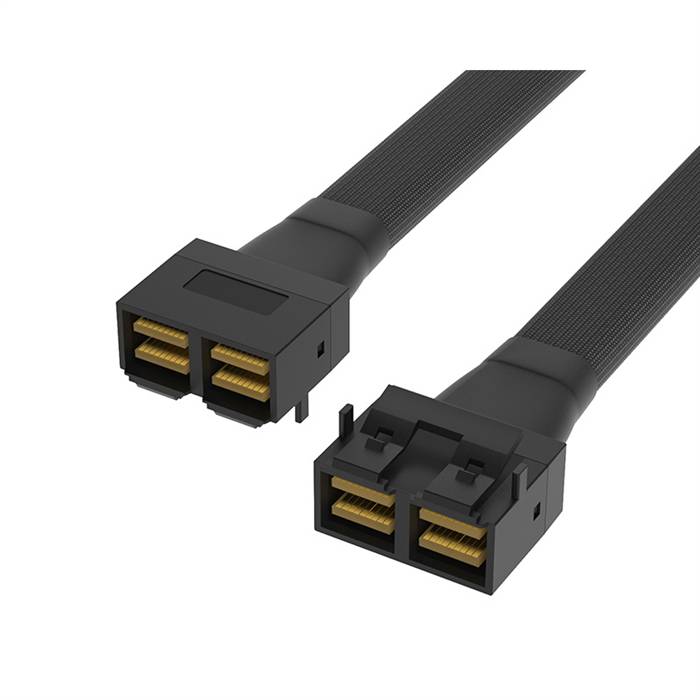

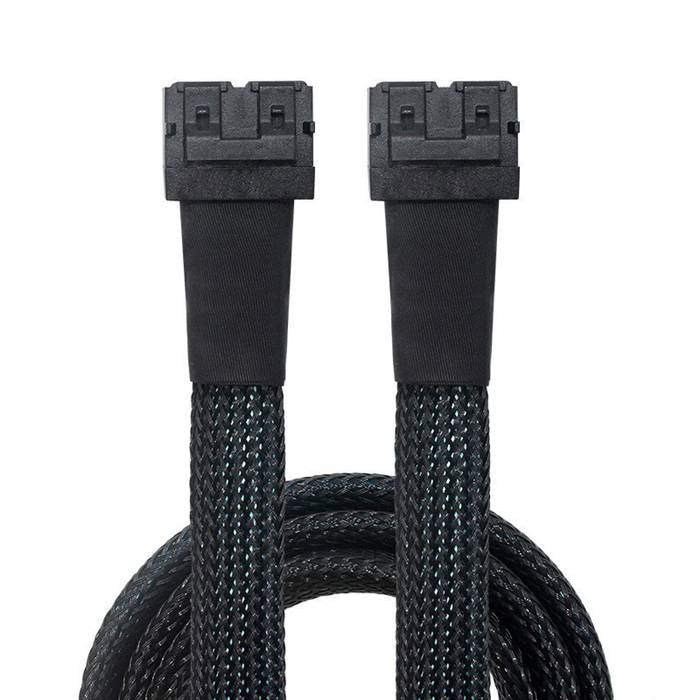

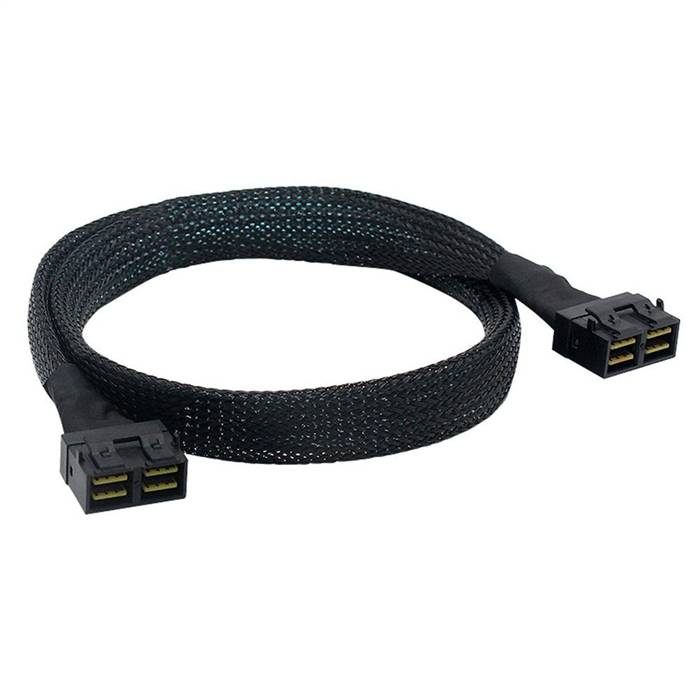

Internal HD Mini SAS SFF-8643 8i to Internal HD Mini SAS SFF-8643 8i Cable

The Internal HD Mini SAS SFF-8643 8i to Internal HD Mini SAS SFF-8643 8i Cable is a high-performance internal connectivity solution designed for enterprise storage systems and data center environments. This straight-through cable provides reliable high-speed data transmission between compatible Mini SAS HD interfaces, maintaining excellent signal integrity while supporting the latest SAS and SATA protocols. Engineered for high-density server configurations, this solution offers seamless connectivity for storage expansion, server interconnects, and infrastructure upgrades in demanding computing environments.

Features

• High-Speed Performance: Supports data rates up to 24 Gbps (SAS 4.0) and 12 Gbps (SAS 3.0)
• Enhanced Signal Integrity: Precision engineering with optimized impedance matching and shielding
• Reliable Connection: Straight connectors ensure secure mating and stable connections
• Space-Efficient Design: Compact HD Mini SAS connectors enable high-density server deployments
• Flexible Protocol Support: Compatible with SAS and SATA protocols
• Robust Construction: Quality materials ensure long-term reliability
• Hot-Plug Capable: Supports hot-swap functionality for maintenance and upgrades

Specifications

• Product Model: Internal Mini SAS HD to Mini SAS HD Cable
• Host Connector: Internal HD Mini SAS SFF-8643 8i, Male, Straight
• Device Connector: Internal HD Mini SAS SFF-8643 8i, Male, Straight
• Data Rate Support: Up to 24 Gbps (SAS 4.0), 12 Gbps (SAS 3.0)
• Supported Protocols: SAS 4.0/3.0/2.0, SATA 3.0
• Wire Gauge: 30 AWG
• Impedance: 100? ±10%
• Shielding: Individual pair shielding with overall braid protection
• Cable Length: 0.5m, 1.0m
• Operating Temperature: -20°C to +85°C
• Durability Rating: 5,000 mating cycles
• Minimum Bend Radius: 30mm

Applications

• Data Center Infrastructure: Connecting host adapters to storage backplanes in enterprise environments
• Storage Array Expansion: Ideal for JBOD and storage enclosure configurations
• Server Upgrade Projects: Enabling integration of new servers with existing Mini SAS infrastructure
• Enterprise Storage Systems: Suitable for large-scale deployments requiring reliable SAS connectivity
• High-Density Server Racks: Perfect for space-constrained server configurations
• Test and Development: Useful for laboratory environments requiring SAS connectivity
• OEM Server Solutions: Designed for server manufacturers requiring internal SAS connections
• Backup and Recovery Systems: Supporting data protection solutions in enterprise environments
