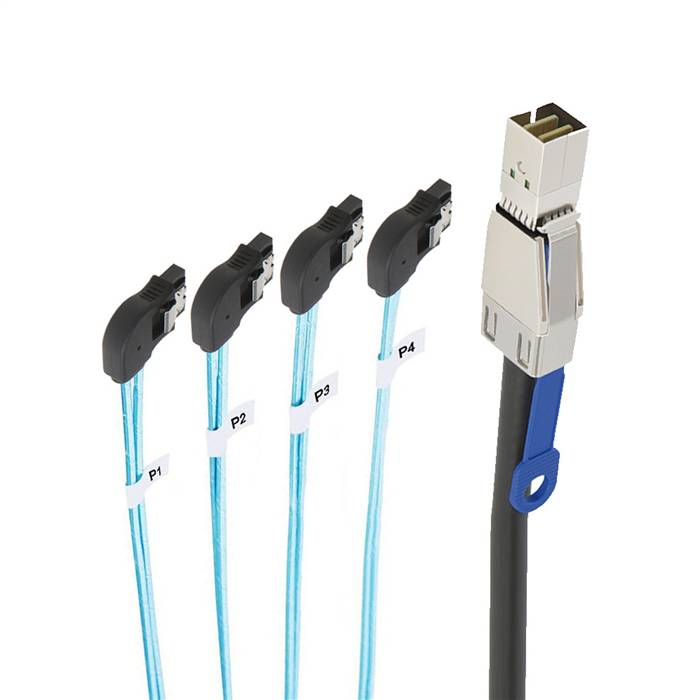

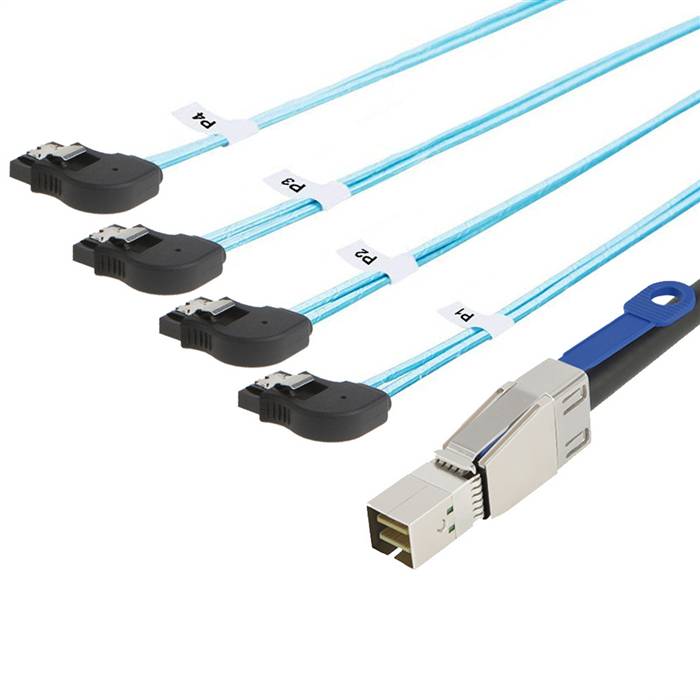

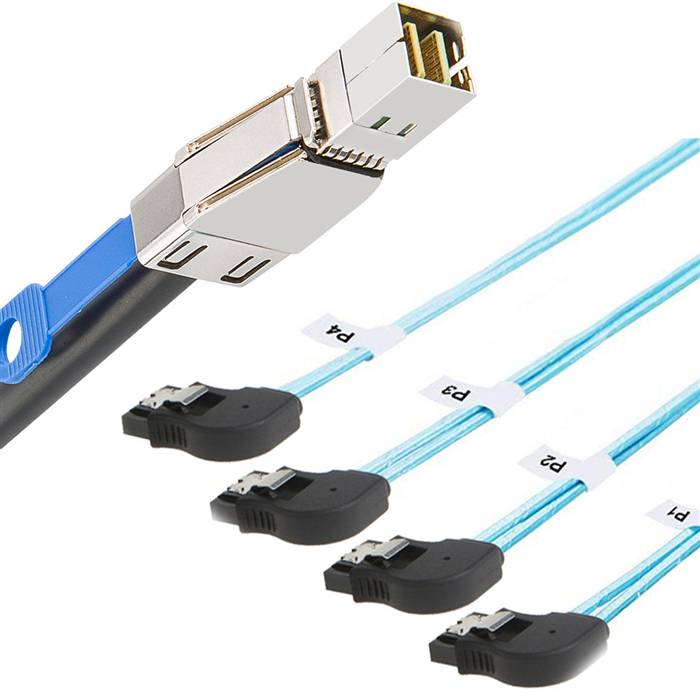

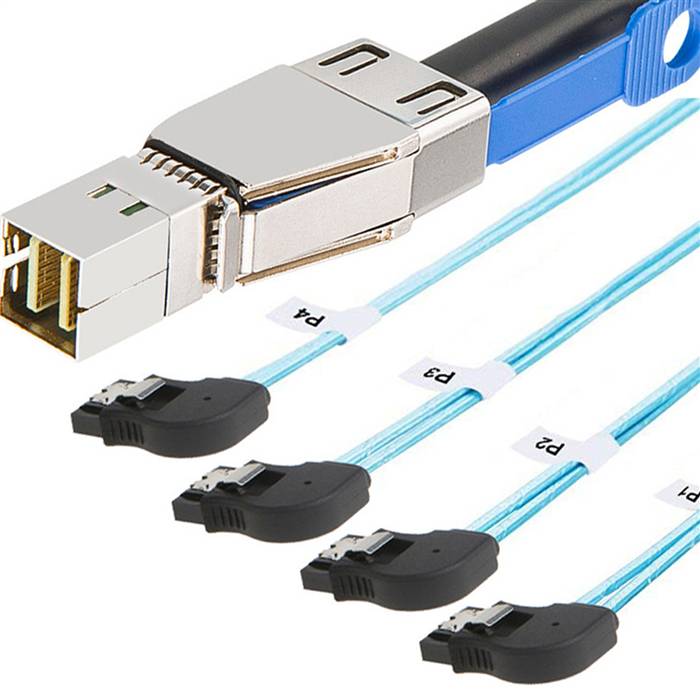

External HD Mini SAS SFF-8644 to 4 Right Bend SATA 7P Cable

The External HD Mini SAS SFF-8644 to 4 Right Bend SATA 7P Cable is a high-performance breakout solution designed to connect external SAS interfaces to multiple SATA devices with right-angle connectors. This cable converts a single External HD Mini SAS SFF-8644 port into four individual right-bend SATA 7-pin connections, enabling efficient data transmission between SAS hosts and SATA drives while optimizing cable routing in space-constrained environments. It supports high-speed data transfer rates (up to 12Gb/s SAS-3) and is ideal for storage expansions, server upgrades, and data center applications requiring reliable external-to-internal connectivity with enhanced cable management.

Features

• High-Density Breakout: Converts one External HD Mini SAS SFF-8644 port to four SATA 7-pin ports (maximizing storage connectivity in limited spaces)
• Right-Angle Connector Design: 90-degree right-bend SATA connectors enable clean cable routing and reduce bending stress (ideal for tight server layouts)
• High-Speed Performance: Supports SAS-3 12Gb/s and SATA 3.0 6Gb/s data rates (ensures full bandwidth utilization)
• External-Grade Durability: Metal-shielded SFF-8644 connector with EMI protection (withstands rigorous data center conditions)
• Dual Protocol Compatibility: Works with SAS and SATA protocols (offers flexibility for mixed storage environments)
• Superior Signal Integrity: Precision engineering with 100? impedance matching and shielding (minimizes signal degradation and EMI/RFI interference)
• Secure Connection: SATA connectors with latching mechanisms and robust SFF-8644 mating (vibration-resistant operation)
• Hot-Plug Capable: Supports hot-swapping for maintenance without system downtime

Specifications

• Product Model: External HD Mini SAS to 4x Right Bend SATA Cable
• Host Connector: External HD Mini SAS SFF-8644 Female (36-position, Metal Shell)
• Device Connectors: 4x Right Bend SATA 7-pin Male
• Data Rate Support: Up to 12Gb/s (SAS-3), 6Gb/s (SATA 3.0)
• Supported Protocols: SAS-3/2/1, SATA 3.2/2.0/1.0
• Impedance: 100? ±10%
• Shielding: Braided overall shielding with aluminum mylar foil (minimizes EMI/RFI interference)
• Cable Length: 0.5m, 1.0m, 2.0m, 3.0m (standard options)
• Operating Temperature: -20°C to +85°C
• Durability Rating: 5,000 mating cycles (SATA connectors)
• Voltage Rating: 30V per contact
• Current Rating: 1.5A per pin

Applications

• High-Density Servers: Ideal for 1U/2U server configurations where space optimization is critical
• Storage Expansion: Connecting external SAS hosts to multiple SATA drives or backplanes
• Data Center Infrastructure: Deploying high-density SATA storage with external SAS connectivity
• OEM System Integration: Building customized storage solutions with external SAS interfaces
• Backup Solutions: Implementing cost-effective SATA-based backup systems with external access
• Test and Development: Validating external SAS to SATA configurations in lab environments
• Disaster Recovery: Supporting redundant storage configurations with external backups
• Cloud Infrastructure: Enabling scalable storage deployments in hyperscale environments
