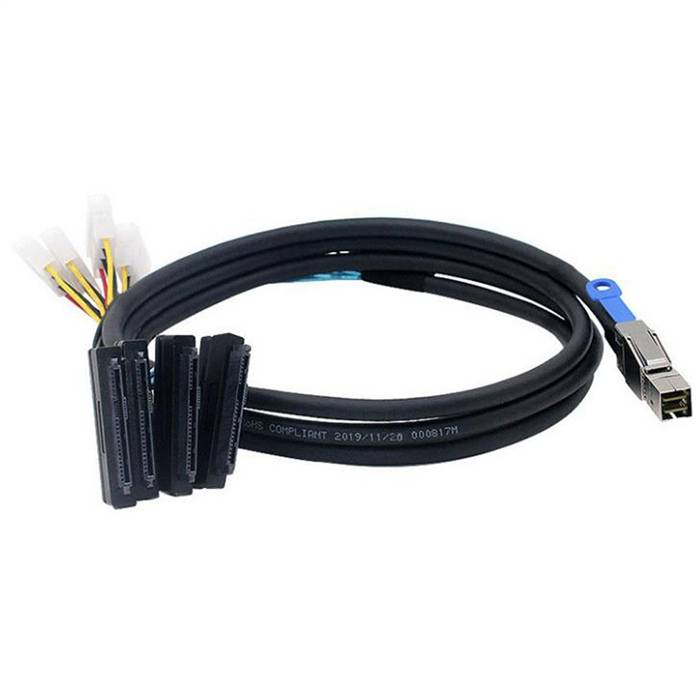

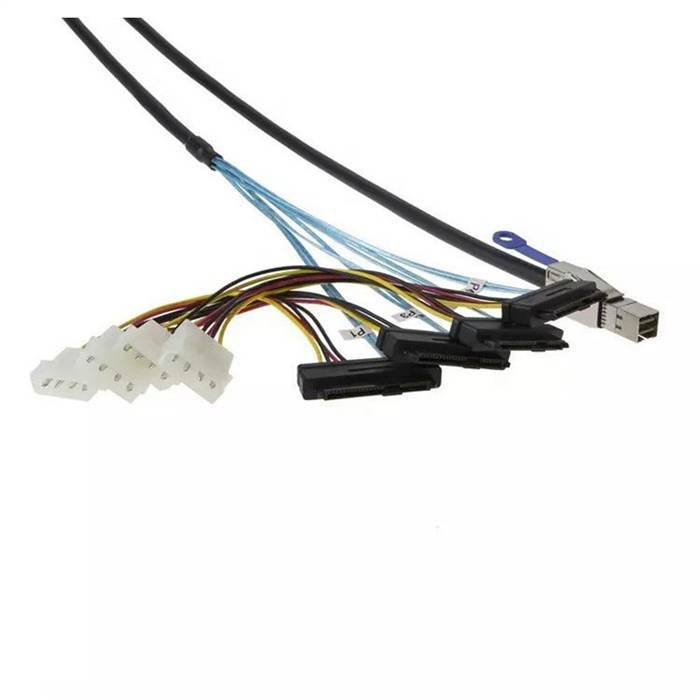

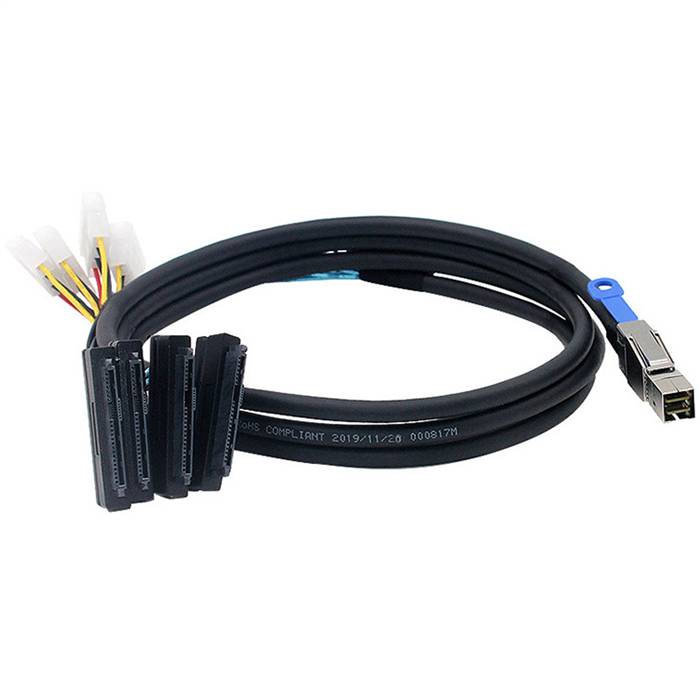

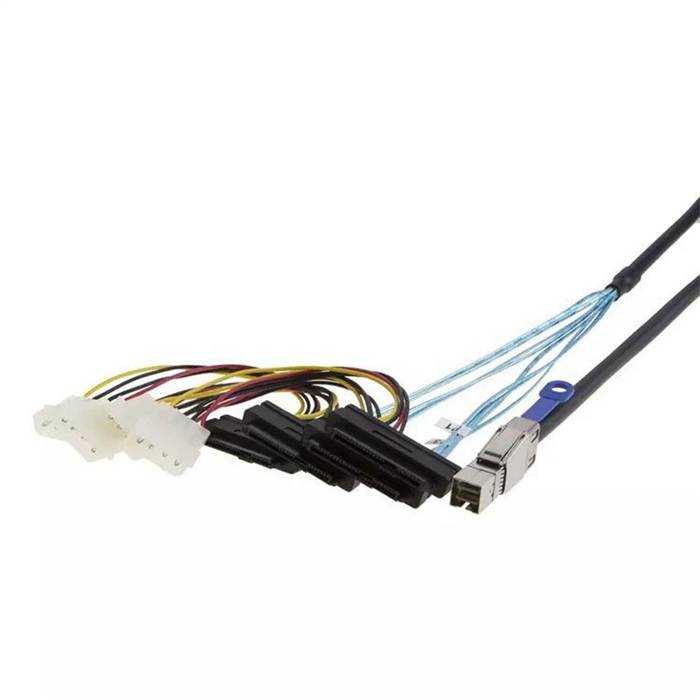

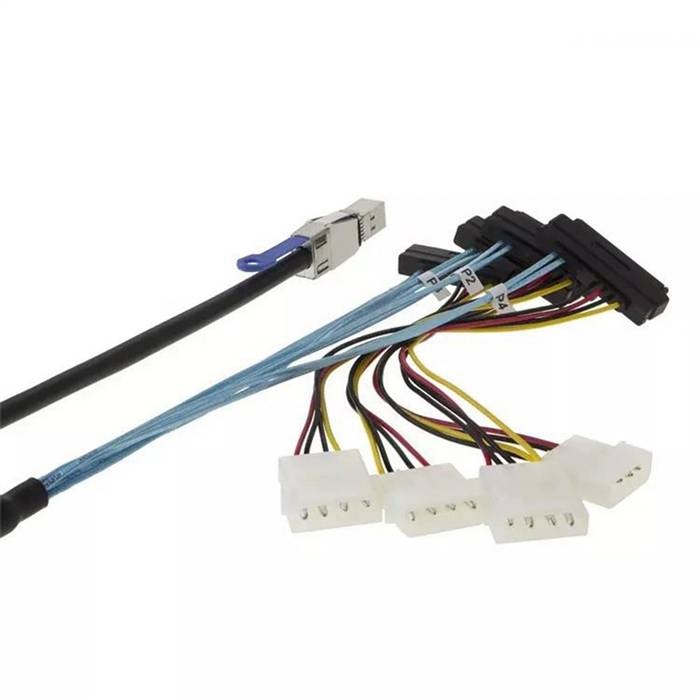

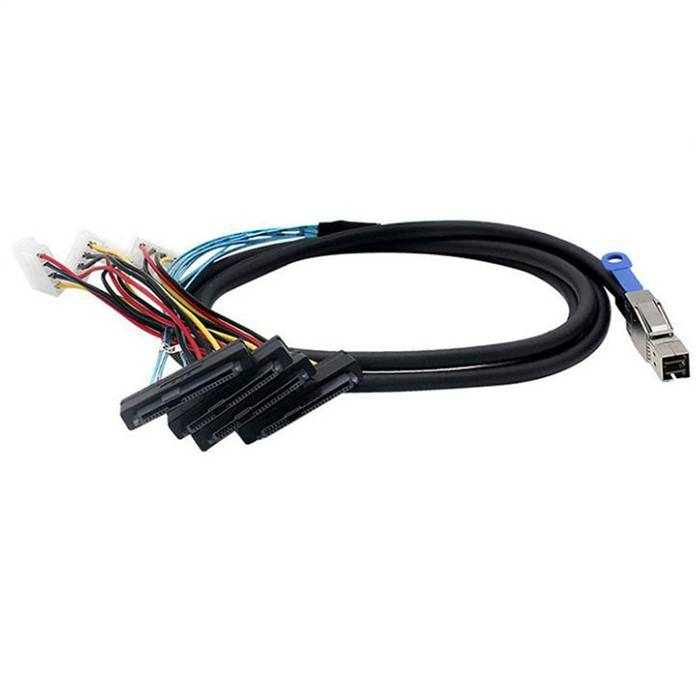

External HD Mini SAS SFF-8644 to 4 SAS SFF-8482 29P with 4-Pin Power Cable

The External HD Mini SAS SFF-8644 to 4 SAS SFF-8482 29P with 4-Pin Power Cable is a high-performance breakout solution designed to connect external SAS hosts to multiple SAS or SATA drives with integrated power delivery. This cable converts a single External HD Mini SAS SFF-8644 port into four individual SAS SFF-8482 29-pin connections, while incorporating a 4-pin power connector to supply necessary power to the drives. It supports high-speed data transfer rates (up to 12Gb/s SAS-3) and is ideal for storage expansions, server upgrades, and data center applications requiring reliable external connectivity with simplified power and data management.

Features

• High-Density Breakout: Converts one External HD Mini SAS SFF-8644 port to four SAS SFF-8482 ports (maximizing storage connectivity for multiple drives)
• Integrated Power Delivery: Includes a 4-pin power connector (eliminates the need for separate power cables and simplifies installations)
• High-Speed Performance: Supports SAS-3 12Gb/s and SAS-2 6Gb/s data rates (ensures full bandwidth utilization for SAS and SATA protocols)
• External-Grade Durability: Metal-shielded SFF-8644 connector with EMI protection (withstands rigorous data center conditions and resists interference)
• Dual Protocol Compatibility: Works with SAS and SATA protocols (offers flexibility for mixed storage environments)
• Superior Signal Integrity: Precision engineering with 100? impedance matching and shielding (minimizes signal degradation and crosstalk)
• Secure Connection: Robust connectors with latching mechanisms (vibration-resistant operation for reliable mating)
• Hot-Plug Capable: Supports hot-swapping for maintenance without system downtime

Specifications

• Product Model: External HD Mini SAS to 4x SAS SFF-8482 with 4-Pin Power Cable
• Host Connector: External HD Mini SAS SFF-8644 Female (36-position, Metal Shell)
• Device Connectors: 4x SAS SFF-8482 29-pin (with integrated power contacts)
• Power Connector: 4-pin peripheral power (conforms to SATA power specifications)
• Data Rate Support: Up to 12Gb/s (SAS-3), 6Gb/s (SAS-2)
• Supported Protocols: SAS-3/2/1, SATA 3.2/2.0
• Impedance: 100? ±10%
• Shielding: Braided overall shielding with aluminum mylar foil (minimizes EMI/RFI interference)
• Cable Length: 0.5m, 1.0m, 2.0m, 3.0m (standard options)
• Operating Temperature: -20°C to +85°C
• Durability Rating: 5,000 mating cycles (SFF-8482 connectors)
• Voltage Rating: 30V per contact
• Current Rating: 1.5A per pin

Applications

• Storage Expansion: Connecting external SAS hosts to multiple SAS/SATA drives or backplanes
• Data Center Infrastructure: Deploying high-density storage solutions with integrated power delivery
• Server Upgrades: Adding external storage connectivity to existing systems with power support
• Backup Solutions: Implementing cost-effective SAS/SATA-based backup systems with reduced cable clutter
• Test and Development: Validating external SAS to SAS/SATA configurations in lab environments
• Disaster Recovery: Supporting redundant storage configurations with external backups
• OEM System Integration: Building customized storage solutions with streamlined cabling and power management
• Cloud Infrastructure: Enabling scalable storage deployments in hyperscale environments
