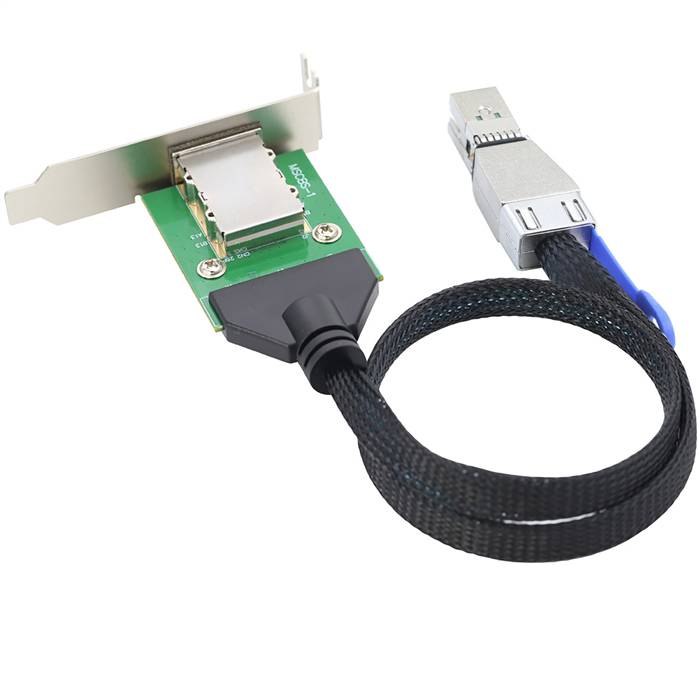

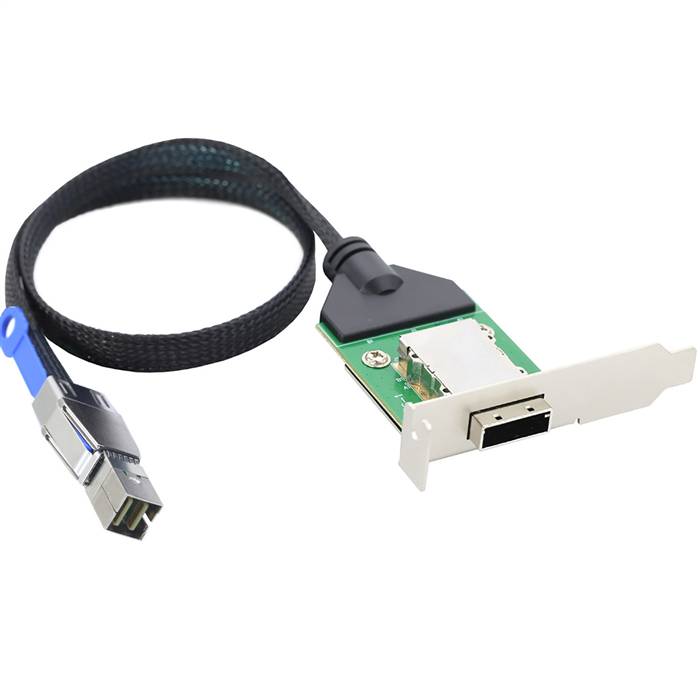

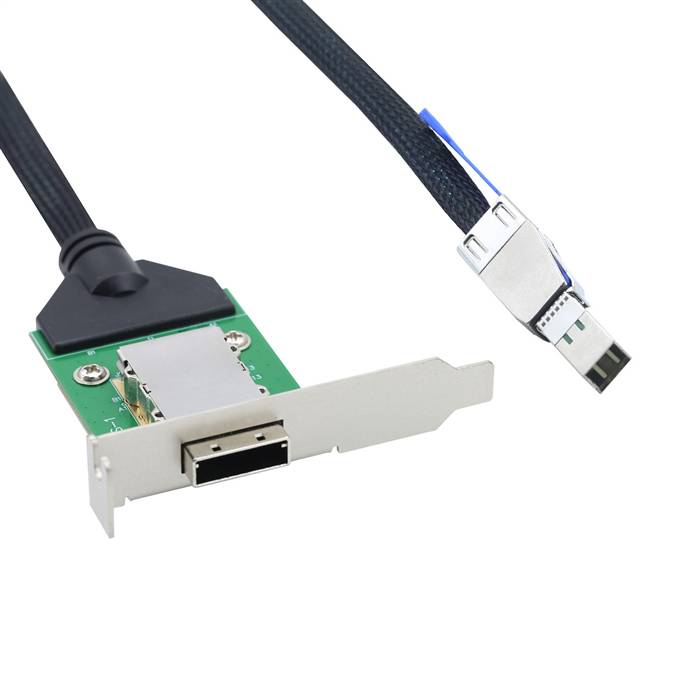

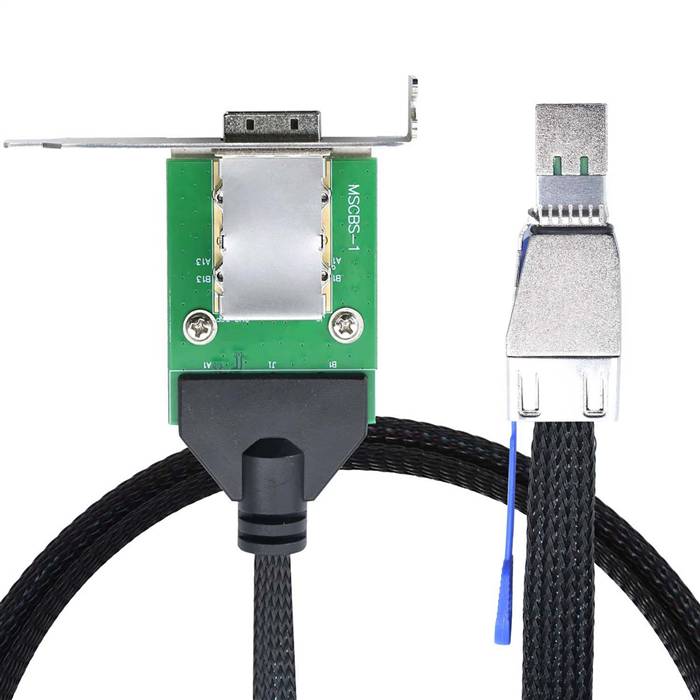

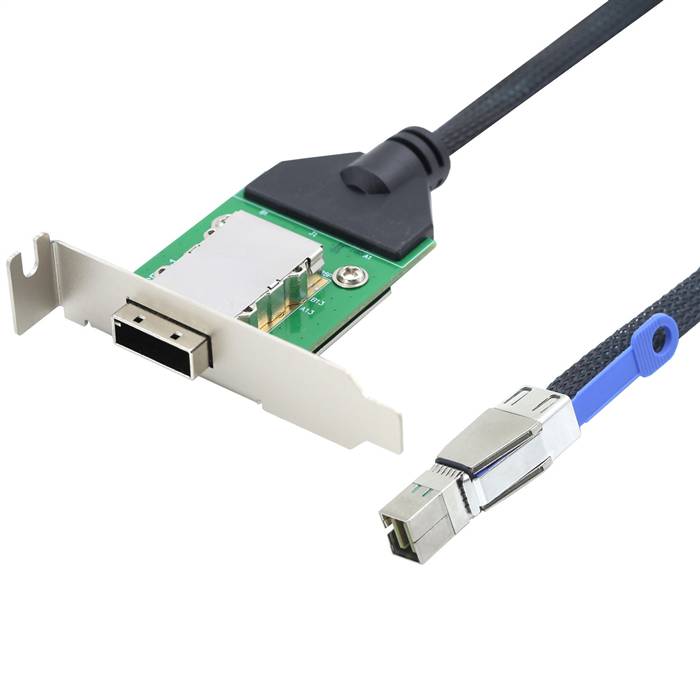

External HD Mini SAS SFF-8644 to External Mini SAS SFF-8088 PCBA Female Cable

The External HD Mini SAS SFF-8644 to External Mini SAS SFF-8088 PCBA Female Cable is a hybrid adapter cable designed to bridge modern SAS 3.0 (12Gb/s) systems with legacy SAS 2.0 (6Gb/s) storage devices. This cable features an SFF-8644 female connector on one end and an SFF-8088 female connector on the other, incorporating a PCBA (Printed Circuit Board Assembly) for signal conditioning and protocol adaptation. It enables seamless connectivity between newer high-density SAS interfaces and older Mini SAS external ports, ensuring backward compatibility and reliable data transmission in mixed-generation storage environments. Ideal for data centers, server upgrades, and legacy system integration, it simplifies hardware transitions while maintaining high-speed performance and signal integrity.

Features

• Hybrid Protocol Adaptation: Connects modern SAS 3.0 (SFF-8644) hosts to legacy SAS 2.0 (SFF-8088) devices (ensures backward compatibility and system interoperability)
• PCBA Integration: Includes a printed circuit board assembly for signal conditioning, impedance matching, and protocol translation (enhances signal integrity and reduces data errors)
• High-Speed Performance: Supports SAS-3 12Gb/s and SAS-2 6Gb/s data rates (maximizes bandwidth utilization across generations)
• External-Grade Durability: Metal-shielded connectors with EMI protection and secure latching mechanisms (withstands rigorous data center conditions and resists vibration)
• Hot-Plug Capable: Supports hot-swapping for maintenance and upgrades without system downtime
• RoHS Compliance: Manufactured with environmentally friendly materials (meets industry environmental standards)
• Durable Construction: High-quality materials ensure reliability through 5,000 mating cycles (long-term operational stability)

Specifications

• Product Model: External HD Mini SAS to Mini SAS PCBA Adapter Cable
• Host Connector: External HD Mini SAS SFF-8644 Female (36-position, Metal Shell)
• Device Connector: External Mini SAS SFF-8088 Female (26-position, Metal Shell)
• PCBA Features: Signal conditioning, impedance matching (100? ±10%), and protocol translation
• Data Rate Support: Up to 12Gb/s (SAS-3), 6Gb/s (SAS-2)
• Supported Protocols: SAS-3/2/1, SATA 3.2/2.0
• Shielding: Braided overall shielding with aluminum mylar foil (minimizes EMI/RFI interference)
• Cable Length: 0.5m (standard options; custom lengths available)
• Operating Temperature: -40°C to +85°C (suitable for harsh environments)
• Durability Rating: 5,000 mating cycles (both connectors)
• Voltage Rating: 30V per contact (complies with SAS specifications)
• Current Rating: 0.5A per pin (ensures safe power delivery)

Applications

• Legacy System Integration: Connecting modern SAS 3.0 servers to older SAS 2.0 external storage arrays (e.g., JBODs, RAID systems)
• Data Center Migrations: Facilitating phased hardware upgrades without complete system overhaul
• Storage Area Networks (SANs): Bridging newer and older SAN components for extended infrastructure lifecycles
• Hardware Upgrades: Enabling newer hosts to connect to legacy external storage devices
• Test and Development: Validating compatibility between SAS generations in lab environments
• Disaster Recovery: Ensuring backup systems with mixed SAS generations can communicate effectively
• OEM Solutions: Providing customized connectivity options for system integrators managing heterogeneous environments
• Cloud Infrastructure: Supporting mixed storage environments in hyperscale data centers
