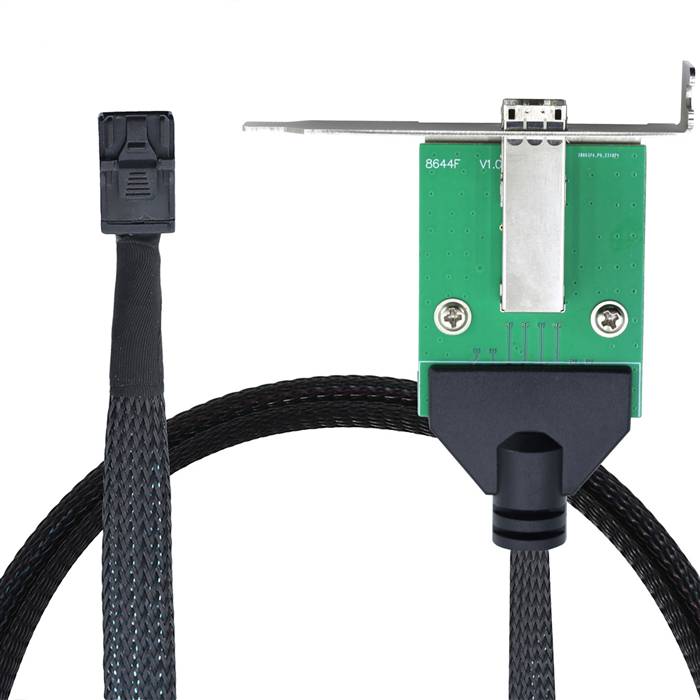

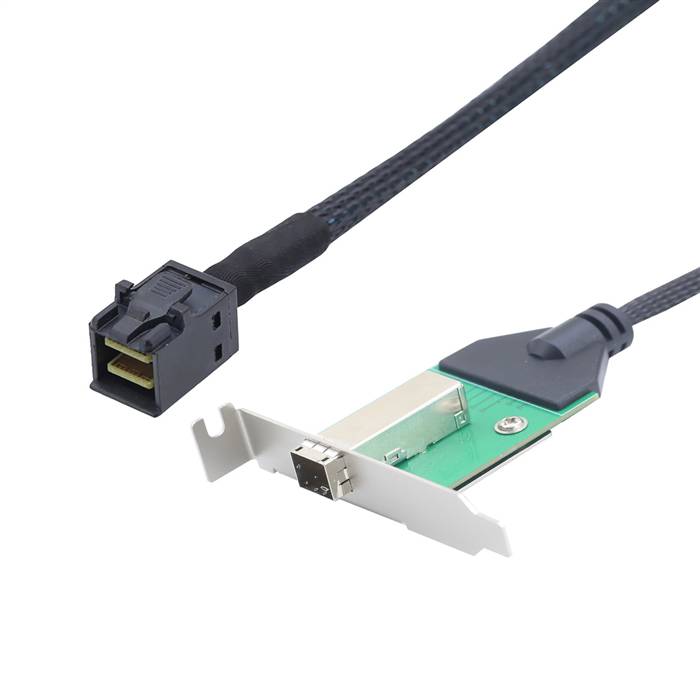

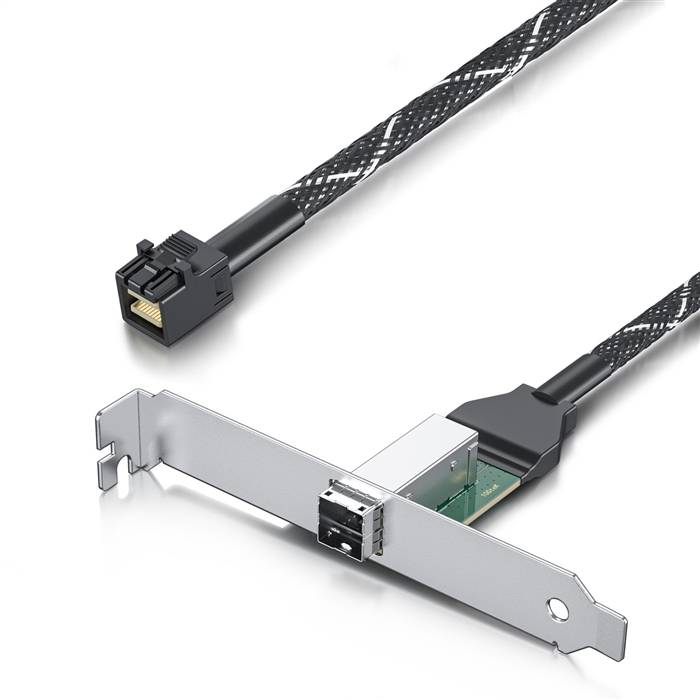

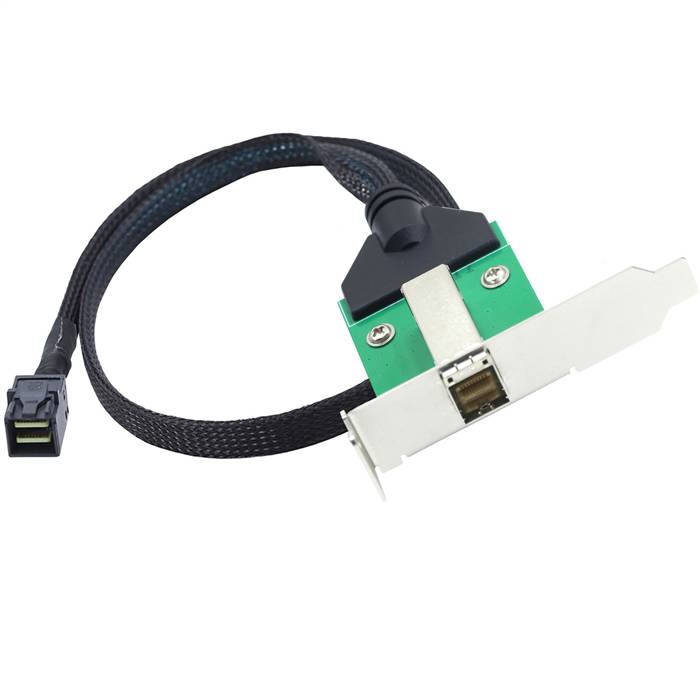

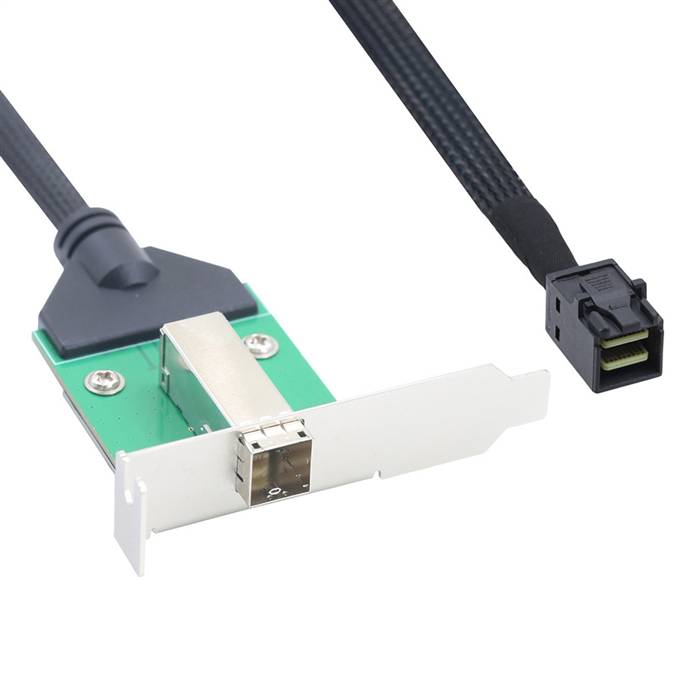

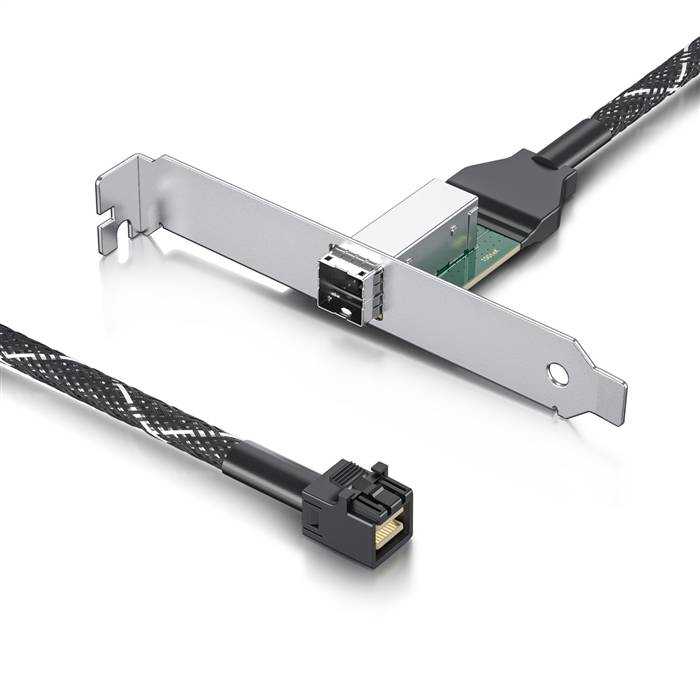

External HD Mini SAS SFF-8644 Female to Internal HD Mini SAS SFF-8643 4i Cable

The External HD Mini SAS SFF-8644 Female to Internal HD Mini SAS SFF-8643 4i Cable is a hybrid connectivity solution designed to bridge external SAS interfaces with internal storage systems. This cable features an external SFF-8644 female connector and an internal SFF-8643 4i connector, enabling seamless data transmission between external storage devices (e.g., JBODs) and internal server backplanes. It supports high-speed data transfer rates up to 12Gb/s (SAS-3) and is ideal for data center expansions, storage area networks (SANs), and server upgrades requiring reliable external-to-internal connectivity.

Features

• Hybrid Design: Connects external SFF-8644 ports to internal SFF-8643 backplanes (enables bidirectional data flow)
• High-Speed Performance: Supports SAS-3 12Gb/s and SAS-2 6Gb/s protocols (ensures full bandwidth utilization)
• Robust Shielding: Metal-shielded SFF-8644 connector with EMI protection (minimizes signal interference)
• Secure Connection: Latching mechanisms on both connectors (vibration-resistant and reliable mating)
• Hot-Plug Capable: Supports hot-swapping for maintenance without system downtime
• Durable Construction: High-quality materials ensure 5,000 mating cycles (long-term reliability)
• Space-Optimized: Internal SFF-8643 connector facilitates clean cable management in servers

Specifications

• Product Model: External HD Mini SAS to Internal HD Mini SAS Cable
• External Connector: SFF-8644 Female (36-position, Metal Shell)
• Internal Connector: SFF-8643 4i Male (36-position, Plastic Body)
• Data Rate Support: Up to 12Gb/s (SAS-3), 6Gb/s (SAS-2)
• Supported Protocols: SAS-3/2/1, SATA 3.2/2.0
• Impedance: 100? ±10%
• Shielding: Braided overall shielding with aluminum mylar foil (minimizes EMI/RFI interference)
• Cable Length: 0.5m (standard options)
• Operating Temperature: -20°C to +85°C
• Durability Rating: 5,000 mating cycles
• Voltage Rating: 30V per contact
• Current Rating: 1.5A per pin

Applications

• Data Center Storage Expansion: Connecting external JBODs to internal server backplanes
• Storage Area Networks (SANs): Facilitating high-speed links between external storage and internal systems
• Server Manufacturing: Integrating external storage interfaces into OEM server designs
• Hardware Upgrades: Adding external storage connectivity to existing servers
• Disaster Recovery Systems: Supporting redundant storage configurations with external backups
• Test and Development: Validating external-to-internal SAS connectivity in lab environments
• Cloud Infrastructure: Enabling scalable storage solutions in hyperscale environments
