CAB-8654-4xSATA | SlimSAS SFF-8654 4i to 4x 7Pin SATA Breakout Cable
CAB-8654-4xSATA | SlimSAS SFF-8654 4i to 4x 7Pin SATA Breakout Cable

Alternative Views:
Our Price: $12.00

Warranty: 1 Year Warranty
Availability: In Stock
Leadtime: Usually ships within 2 Business Days


Product Code: CAB-8654-4XSATA


Compatibility: 		Please input the brand and model of the device on which you will install this cable.

Select Length*:

Qty:
Description

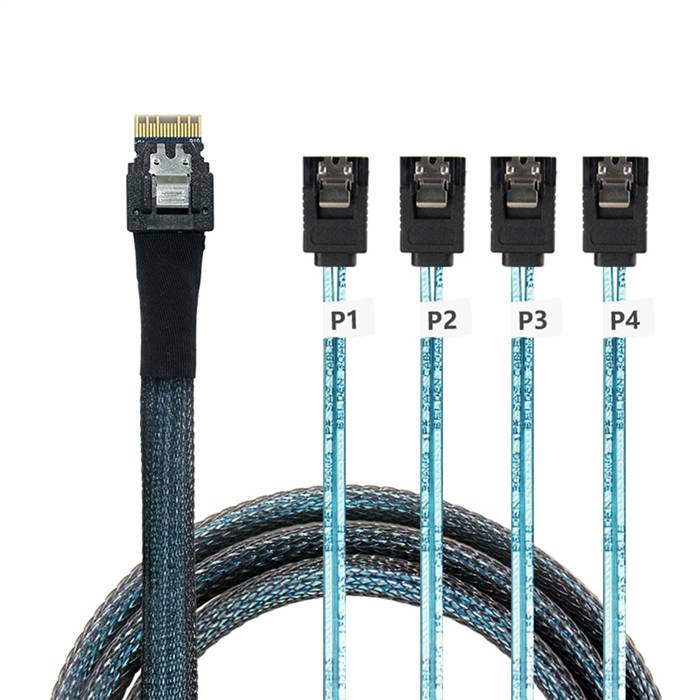

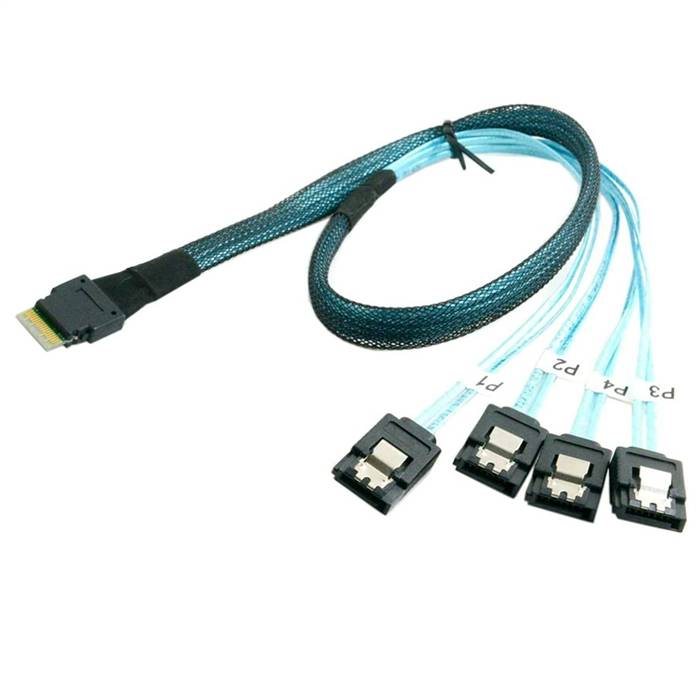

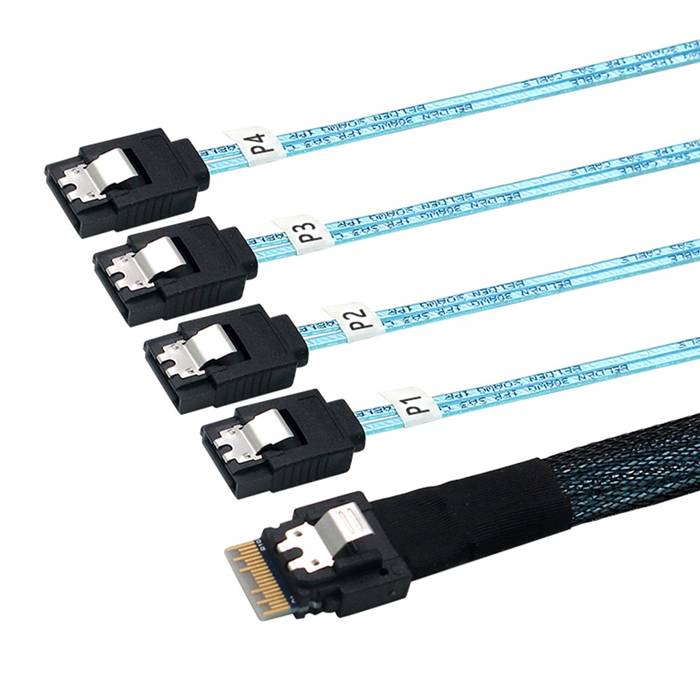

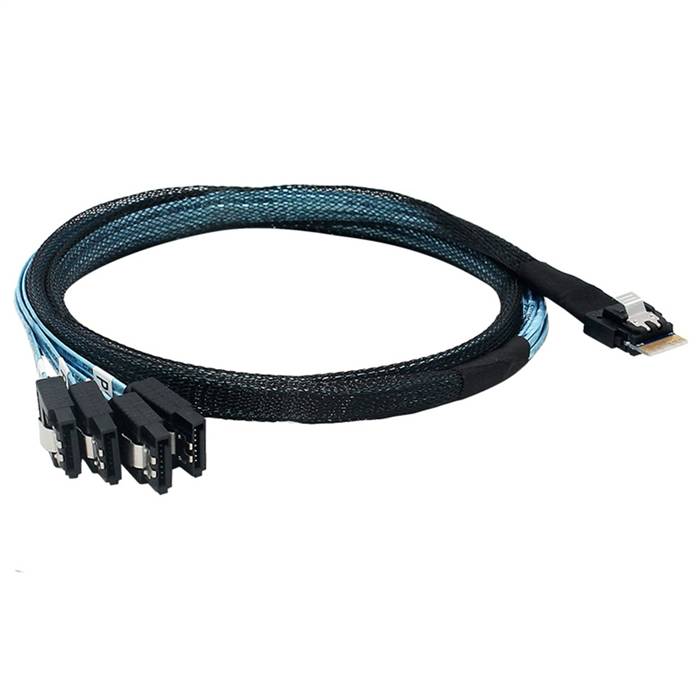

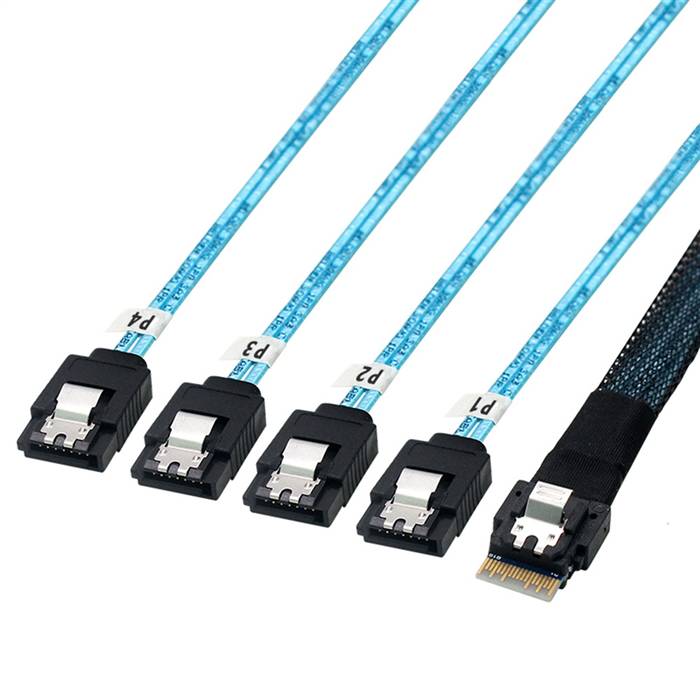

SlimSAS SFF-8654 4i to 4x 7Pin SATA Breakout Cable.

Features
  • Smaller size connectors and cables save equipment space
  • Provide four-channel signal transmission according to industry standards
  • Data speed: each channel supports UPI 11.2Gbps, SAS4.0 24Gbps, 25Gbps and PCIe4.0 16Gbps
  • Comply with SAS4.0 and SlimSAS SFF-8654 specifications

Mechanical behavior
  • Combining force: 55.5N max
  • Releasing force: 49N max
  • Rated durability period: at least 250 cycles

Electrical performance
  • Voltage: 30VDC per contact SlimSAS 4i plug: maximum 80mohm initial, maximum 20mohm after pressure test
  • Dielectric withstand voltage: minimum 300 VDC, lasting 100 ms
  • Insulation resistance: the minimum value between adjacent pins is 10MΩ

Signal integrity
  • Impedance of mating connector: 100 +/- 10% ohm
  • Common mode impedance: in line with SAS4.0 specifications
  • Insertion loss: in line with SAS4.0 specification
  • Maximum crosstalk: in line with SAS4.0 specifications

Applications
  • Server
  • Data storage
  • Workstation
