SlimSAS SFF-8654 4i to 4 Right Bend SATA 7P Cable

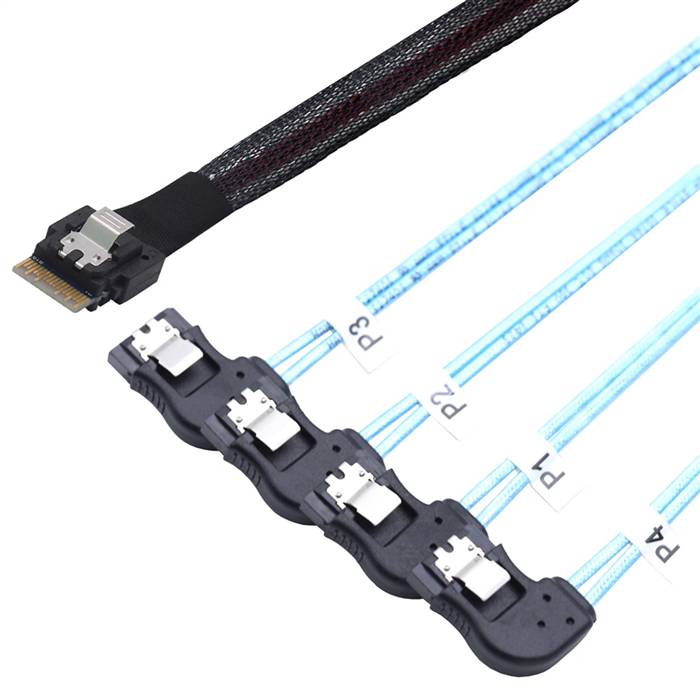

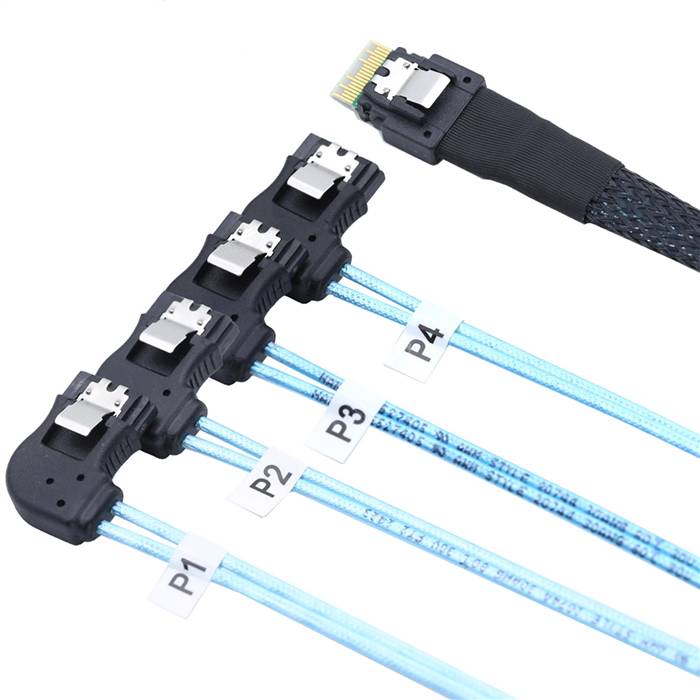

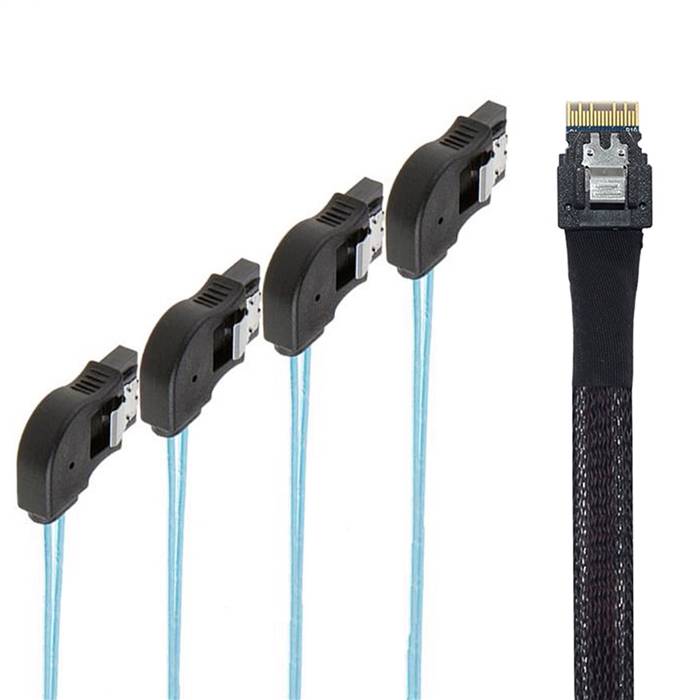

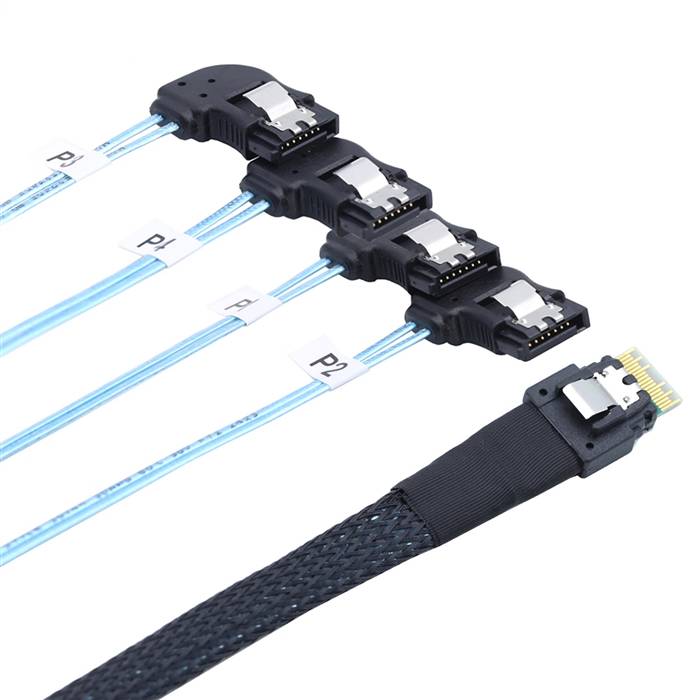

The SlimSAS SFF-8654 4i to 4 Right Bend SATA 7P Cable is a high-density internal breakout cable designed for modern data center and enterprise storage environments where space optimization and efficient cable routing are critical. This cable provides a vital interface conversion, splitting a single SlimSAS (SFF-8654) 4-lane host interface into four independent SATA 7-pin connectors featuring a right-angle bend design. Engineered to support high-speed data transfer protocols, this cable ensures reliable connectivity from modern host systems to multiple SATA drives, offering a space-saving solution that simplifies cabinet management and improves thermal performance in dense server configurations.

Features

• Hybrid Interface Solution: Bridges the modern SlimSAS SFF-8654 4i interface with four legacy SATA 7-pin connectors, providing backward compatibility for existing SATA drive infrastructures while utilizing current host interface technology.
• Right-Angle Bend Design: The right-bend SATA connectors are engineered for installations in space-constrained environments, enabling optimal cable routing and reducing obstruction in high-density server chassis.
• High-Speed Data Support: Supports high-speed data transfer protocols, including PCIe and SAS, with data rates capable of meeting the demands of enterprise storage applications.
• Enhanced Signal Integrity: Utilizes precision-engineered cables and multi-layer shielding to minimize signal degradation, crosstalk, and electromagnetic interference (EMI), ensuring stable data transmission.
• Space-Efficient Design: The SlimSAS connector's compact form factor (0.6mm pitch) allows for high-density configurations on host boards, while the right-bend SATA connectors facilitate efficient cable management.
• Secure Connection System: Features robust connectors with positive latching mechanisms to ensure stable connections in vibration-prone environments and prevent accidental disconnection.

Specifications

• Product Model: SlimSAS SFF-8654 4i to 4 Right Bend SATA 7P Cable
• Connector A: SlimSAS (SFF-8654) 4i, 38-Position, Male, Straight
• Connector B: 4x SATA, 7-Position, Male, Right Bend
• Connector Gender: Male to Male
• Cable Type: Breakout with Right Bend
• Cable Length: Standard options: 0.5m, 1.0m (Custom lengths available)
• Data Rate Support: Up to 24 Gbps (SAS-4), 16 GT/s (PCIe 4.0)
• Supported Protocols: SAS 3.0/4.0, SATA III (6.0 Gbps), PCI Express (PCIe) 4.0
• Wire Gauge: 30-32 AWG
• Impedance: 85 ? differential impedance
• Shielding: Individual pair shielding with overall braid and foil shield
• Operating Temperature: -40°C to +85°C
• Insertion Loss: Compliant with SAS-4 specifications
• Return Loss: Compliant with SAS-4 specifications
• Durability: Minimum 250 mating cycles

Applications

• Enterprise Storage Expansion: Connecting host bus adapters (HBAs) or RAID controllers with SlimSAS interfaces to multiple SATA HDDs or SSDs in storage arrays and servers.
• Data Center Infrastructure: Deploying in data center environments where integration between newer servers and legacy SATA drive backplanes is required, particularly in space-constrained racks.
• Server Manufacturing: Used by server OEMs to provide flexible connectivity solutions for storage configurations that require right-angle connectors for optimal space utilization.
• System Integration and Upgrades: Facilitating storage system upgrades and expansions by enabling modern controllers to connect with existing SATA drive infrastructures.
• High-Density Server Configurations: Ideal for 1U/2U servers and blade systems where right-angle connectors are essential for component clearance and efficient cable routing.
• Data Backup and Archival Systems: Supporting backup storage systems and archival solutions that utilize SATA drives for reliable data retention.
