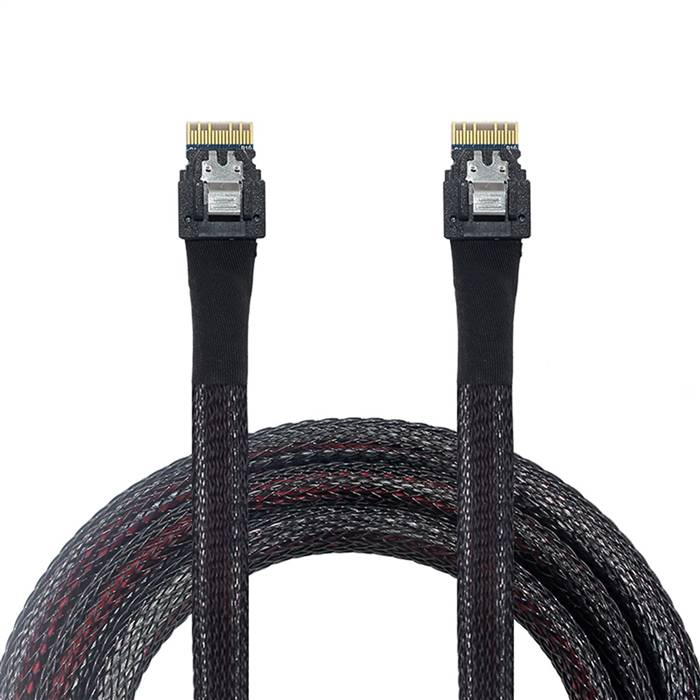

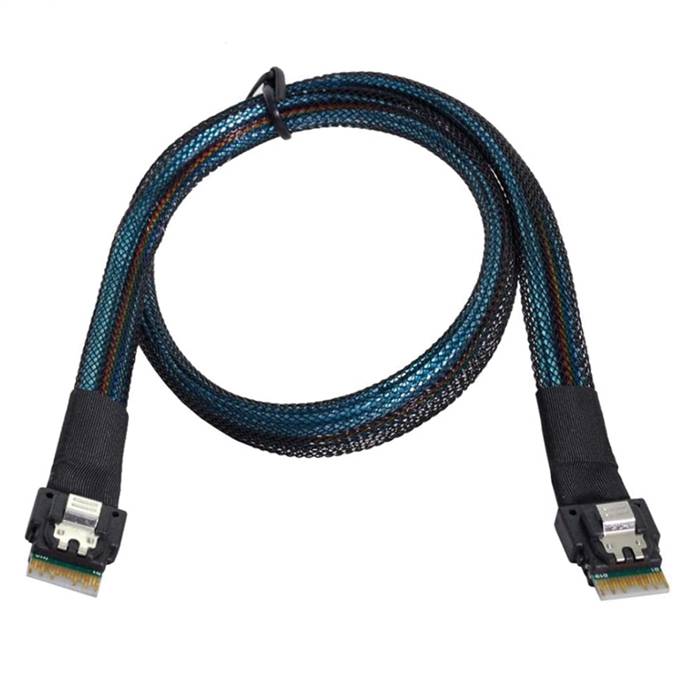

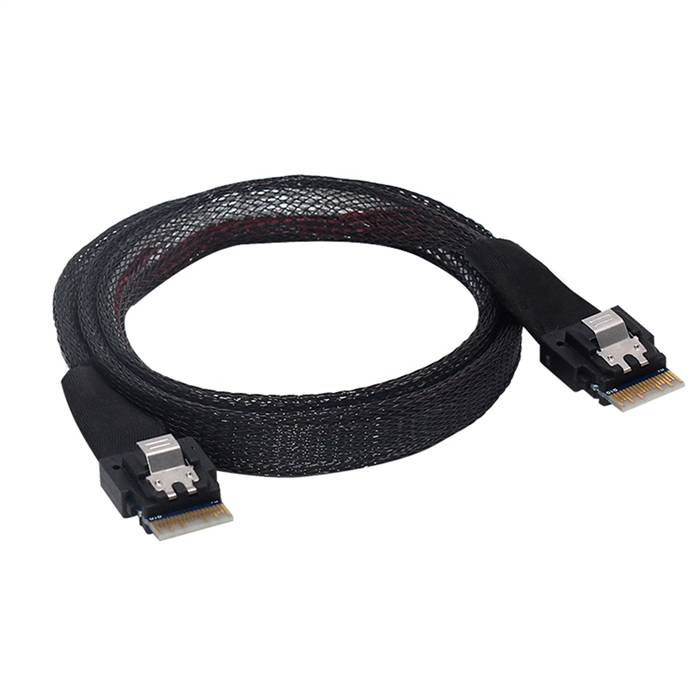

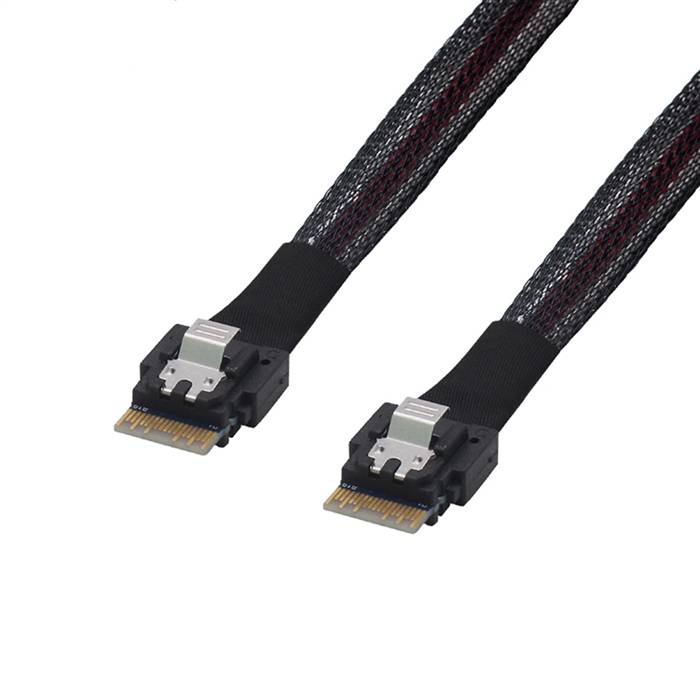

SlimSAS SFF-8654 4i to SlimSAS SFF-8654 4i Cable

The SlimSAS SFF-8654 4i to SlimSAS SFF-8654 4i Cable is a high-performance internal server cable designed for modern data center and enterprise storage environments. This cable provides a direct, high-fidelity connection between two identical SlimSAS (SFF-8654) 4i interfaces, ensuring reliable signal transmission in demanding storage applications. Engineered to support high-speed data transfer protocols including PCIe and SAS, this solution enables seamless connectivity between compatible host systems and storage devices while maintaining excellent signal integrity and performance characteristics.

Features

• High-Speed Direct Connection: Provides a reliable and low-loss link between two SlimSAS SFF-8654 4i ports, supporting high-bandwidth communication within storage systems
• Superior Signal Integrity: Utilizes precision-engineered cables with multi-layer shielding to minimize signal degradation, crosstalk, and electromagnetic interference
• Space-Efficient Design: The SlimSAS connector's compact form factor allows for high-density configurations on host boards and storage devices
• Secure Connection System: Features robust connectors with positive latching mechanisms to ensure stable connections in vibration-prone environments
• Protocol Flexibility: Supports both PCIe and SAS protocols, providing design flexibility for various storage configurations
• Thermal Management: Optimized cable design contributes to improved airflow management in densely packed server configurations

Specifications

• Product Model: SlimSAS SFF-8654 4i to SlimSAS SFF-8654 4i Cable
• Connector A: SlimSAS (SFF-8654) 4i, 38-Position, Male, Straight
• Connector B: SlimSAS (SFF-8654) 4i, 38-Position, Male, Straight
• Connector Gender: Male to Male
• Cable Type: Straight to Straight
• Cable Length: Standard options: 0.5m,1.0m (Custom lengths available)
• Data Rate Support: Up to 24 Gbps (SAS-4), 16 GT/s (PCIe 4.0)
• Supported Protocols: SAS 3.0/4.0, PCI Express (PCIe) 4.0, NVMe
• Wire Gauge: 30-32 AWG
• Impedance: 85 ? differential impedance
• Shielding: Individual pair shielding with overall braid and foil shield
• Operating Temperature: -40°C to +85°C
• Insertion Loss: Complies with SAS-4 specifications
• Return Loss: Meets SAS-4 requirements
• Durability: Minimum 250 mating cycles

Applications

• Enterprise Storage Systems: Connecting host bus adapters to storage controllers or between storage devices using SlimSAS interfaces in enterprise storage environments
• Data Center Infrastructure: Deploying in data center environments where direct SlimSAS-to-SlimSAS connections are required for storage expansion and system integration
• Server Manufacturing: Used by server OEMs for internal storage connections within server systems that utilize SlimSAS interfaces
• Storage Area Networks: Supporting SAN configurations where high-speed SlimSAS connections are needed between storage components
• High-Performance Computing: Deploying in HPC environments that require reliable, high-speed connections between compute and storage elements
• System Integration: Facilitating storage system integrations where direct SlimSAS connectivity solutions are required for optimal performance
• Test and Development: Supporting validation and testing environments that require direct cable connections between SlimSAS-enabled equipment
